Column lapping length is the critical overlap required when connecting steel rebars to maintain structural integrity. Get this wrong, and your entire building becomes vulnerable. This guide explains IS 456 standards, calculation methods, and field-tested best practices for perfect rebars every time.
Why Lapping Length Matters
Inadequate overlaps cause:
- Structural failure points during earthquakes
- Crack propagation through weak joints
- Costly repairs when discovered late
- Construction delays from failed inspections
Key Governing Standards
- IS 456:2000 (Indian Standard)
- ACI 318 (American Concrete Institute)
- BS 8110 (British Standard)
Lapping Length Calculation Formula
The basic equation per IS 456:
Lap Length = Development Length × Modification Factors
Where:
- Development Length (Ld) = (φ × σs)/(4 × τbd)
- φ = Bar diameter
- σs = Steel stress (0.87fy)
- τbd = Bond stress (1.2-2.4 N/mm²)
Simplified Table for Common Grades
| Bar Dia (mm) | Fe 415 (mm) | Fe 500 (mm) | Seismic Zone |
|---|---|---|---|
| 12 | 45d (540mm) | 50d (600mm) | +25% Length |
| 16 | 45d (720mm) | 50d (800mm) | +25% Length |
| 20 | 45d (900mm) | 50d (1000mm) | +25% Length |

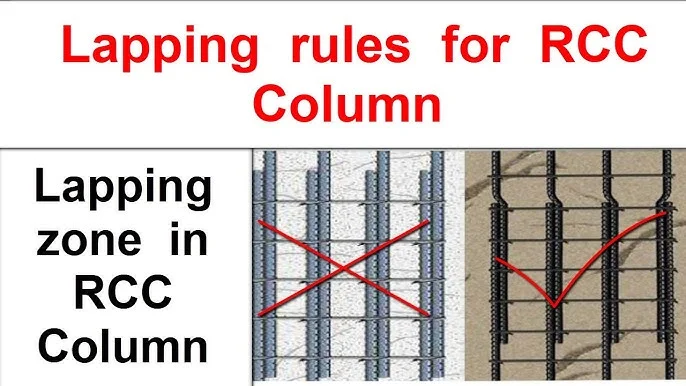

Critical Lapping Rules
- Zone Restrictions
- Never lap in maximum moment zones (bottom 1/4 of columns)
- Ideal zone: Middle 1/2 height of column
- Staggering Requirement
- Alternate laps by minimum 0.3Ld
- Never align laps in same plane
- Special Cases
- Seismic zones: Increase length by 25%
- Large diameters: Use mechanical couplers instead
Step-by-Step Lapping Process
- Cut bars to calculated lap length + tolerance
- Clean rebar with wire brush (remove rust/mill scale)
- Position bars with proper stagger pattern
- Bind tightly with 16-gauge annealed wire
- Inspect before concrete pour
Common Mistakes & Fixes
❌ Insufficient overlap → Demolish and redo
❌ Lapping at floor level → Add confinement ties
❌ Unstaggered laps → Install additional lateral ties
FAQs About Column Lapping
Q: Can we weld rebars instead of lapping?
A: Only with special approval – welding changes steel properties.
Q: Why is 50d standard for Fe500?
A: Higher grade steel requires more bond length to develop full strength.
Q: How to lap when column size is small?
A: Use offset bends or switch to mechanical splices.
Q: Does lap length change for raft foundations?
A: Yes – typically increased by 20% for direct earth contact.
Innovative Alternatives to Lapping
- Threaded couplers: Eliminate overlap completely
- Grout-filled sleeves: Faster than traditional laps
- Head-anchored bars: Reduce congestion in tight columns
Inspection Checklist
✔ Verify lap length with measuring tape
✔ Confirm proper staggering pattern
✔ Check binding wire tightness
✔ Ensure no laps in restricted zones
Key Takeaways
- Fe500 requires longer laps than Fe415
- Middle column zone is safest for lapping
- Seismic areas demand 25% extra length
- Mechanical splices solve space constraints
Always cross-verify lap lengths with your structural engineer – this isn’t an area for guesswork.
