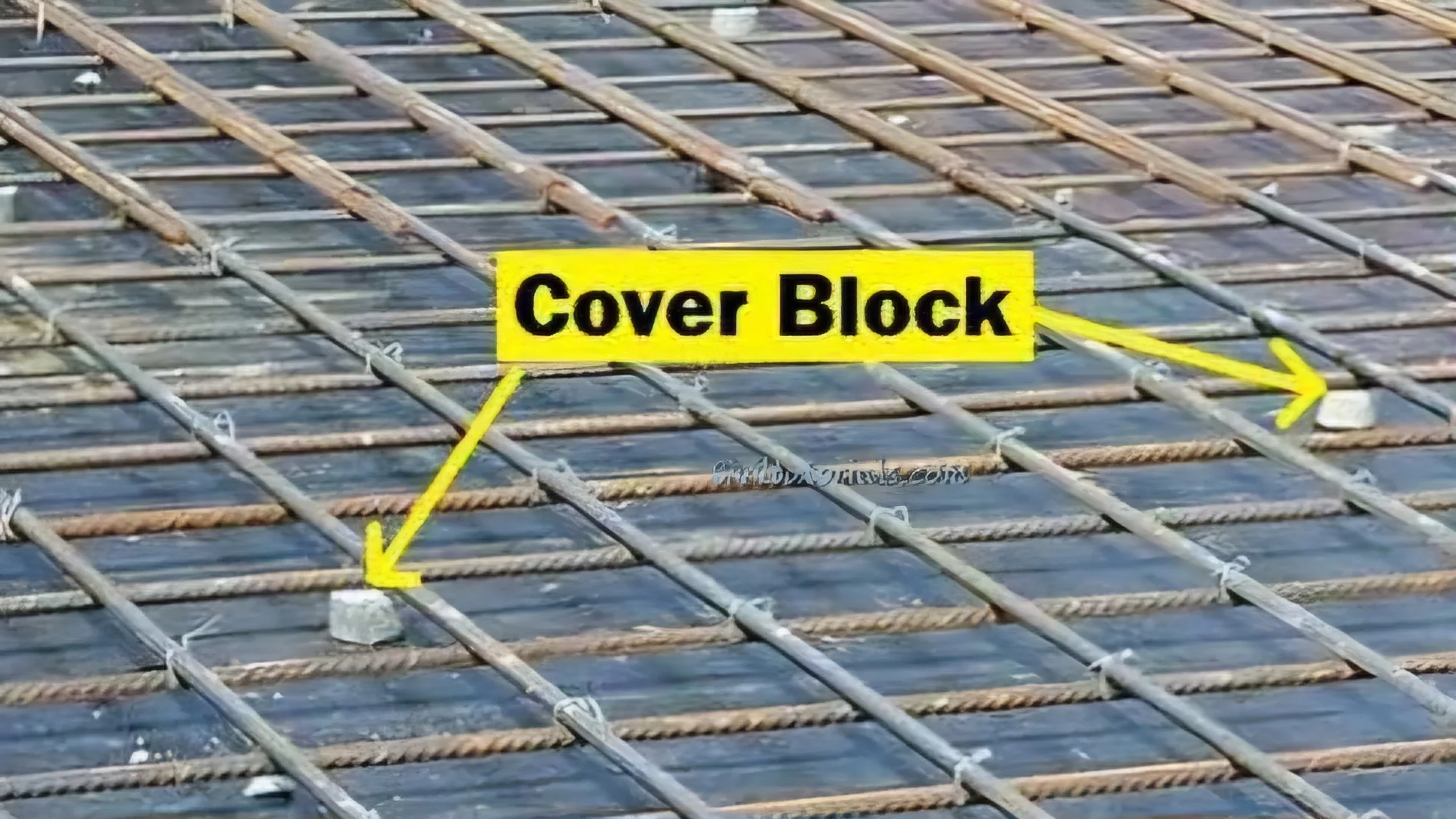

Cover blocks are the unsung heroes of reinforced concrete, maintaining precise spacing between rebar and formwork. These small but critical components ensure structural durability by preventing corrosion and achieving designed strength. This guide covers everything from standard sizes to innovative materials used in modern construction.
Why Cover Blocks Are Non-Negotiable
Inadequate concrete cover leads to:
- Premature corrosion of reinforcement
- Reduced fire resistance
- Spalling and cracking
- Structural failure during seismic events
Key Functions
✔ Maintain specified concrete cover thickness
✔ Prevent direct contact between rebar and formwork
✔ Ensure uniform reinforcement positioning
✔ Protect steel from environmental exposure
Standard Cover Block Sizes (IS 456)
By Structural Element
| Element | Minimum Cover (mm) | Common Block Size |
|---|---|---|
| Footings | 50 | 50×50×50mm |
| Beams | 25 | 25×25×25mm |
| Columns | 40 | 40×40×40mm |
| Slabs | 20 | 20×20×20mm |
| Water Retaining | 50 | 50×50×50mm |
By Exposure Condition
- Mild: 20mm
- Moderate: 30mm
- Severe: 45mm
- Marine: 75mm+
Materials Comparison
| Type | Pros | Cons | Best For |
|---|---|---|---|
| Cement | Low cost | Breaks easily | Temporary works |
| Plastic | Reusable | Melts in fire | Slabs/beams |
| PVC | Chemical resistant | Expensive | Chemical plants |
| Steel | High strength | Conducts electricity | Nuclear plants |
| FRP | Non-conductive | Very costly | Hospitals/labs |
Proper Installation Techniques
1. Placement Density
- Every 1m along rebar
- At all intersections
- Double at corners
2. Fixing Methods
- Tie wire (16 gauge annealed)
- Plastic clips (for speed)
- Magnetic holders (for vertical surfaces)
3. Critical Zones Requiring Extra Attention
- Beam-column junctions
- Slab edges
- Construction joints
- Waterproofing areas
Common Defects & Solutions
❌ Crushed blocks → Use higher grade materials
❌ Missing blocks → Implement QC checklists
❌ Incorrect placement → Laser-guided positioning
❌ Corroded steel blocks → Switch to non-metallic
Innovations in Cover Block Technology
- Smart blocks with embedded RFID tags
- Self-healing concrete incorporated blocks
- 3D-printed custom shapes for complex rebars
- Photoluminescent blocks for night visibility
FAQs About Cover Blocks
Q: Can we use stone pieces as cover blocks?
A: Never – they create voids and uneven surfaces.
Q: How to maintain cover in suspended slabs?
A: Use wheeled spacers that roll into position.
Q: Do epoxy-coated bars need cover blocks?
A: Yes – coating isn’t 100% reliable against corrosion.
Q: Why do marine structures need larger cover?
A: Chloride penetration increases exponentially with reduced cover.
Inspection Checklist
✔ Verify size matches structural drawings
✔ Check placement density (1 block per m² minimum)
✔ Ensure no blocks are missing before pouring
✔ Confirm proper tying method
Key Takeaways
- Never compromise on cover thickness
- Material selection affects durability
- Proper placement is as crucial as the blocks themselves
- New technologies are revolutionizing this field
Remember: The few rupees saved on cheap cover blocks could cost lakhs in repairs later.
