In civil engineering, particularly in pavement design, understanding load distribution is crucial for creating long-lasting and effective roadways. One of the critical concepts used in this process is Equivalent Single Wheel Load (ESWL). This article will dive deep into the definition, significance, and calculation of ESWL, making the topic approachable and easy to understand.
1. What is Equivalent Single Wheel Load (ESWL)?
Equivalent Single Wheel Load (ESWL) is a concept used to represent the impact of dual or multiple wheel loads as if it were a single wheel load. This is particularly important in pavement design because it simplifies the calculation of stresses and strains within the pavement.
In simpler terms, ESWL helps us to understand how the load from multiple wheels (such as in trucks) can be equated to a single wheel for easier calculation of pavement design parameters.
2. Why ESWL is Important in Pavement Design
Pavements are designed to withstand heavy traffic, especially from large commercial vehicles like trucks and trailers. The weight these vehicles carry is not distributed evenly across their wheels but concentrated in specific points. Calculating the Equivalent Single Wheel Load (ESWL) helps engineers ensure that pavements are strong enough to handle these concentrated loads over time.
Using ESWL in design allows for more accurate predictions of pavement lifespan, reducing the risk of early failure.
3. Equivalent Single Wheel Load Formula and Calculation
The Equivalent Single Wheel Load formula is crucial to converting dual or multiple wheel loads into a single wheel load. The formula often used for this conversion is based on either the stress or deflection criterion.

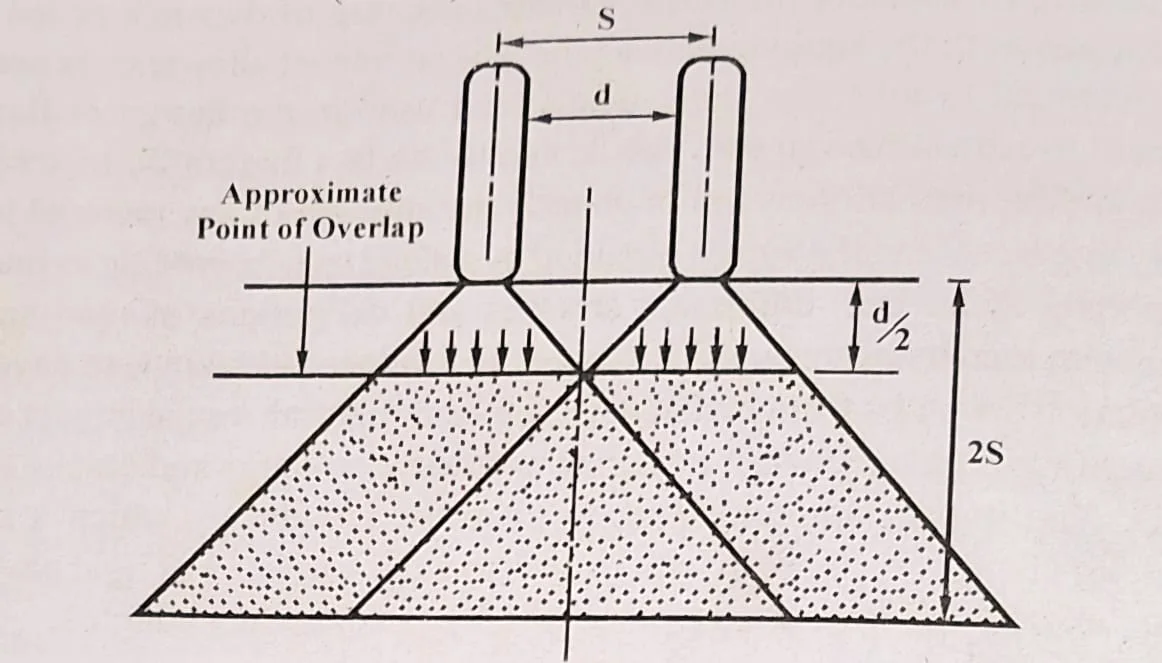

For the classical equal-stress method for two identical dual wheels, the Boyd–Foster relationship is used under its stated assumptions:
For two identical circular wheel contact areas, the classical Boyd–Foster equal-stress relation for the intermediate-depth range is:
log10(ESWL) = log10(P) + [0.301 × log10(z ÷ (d/2))] ÷ log10(2S ÷ (d/2))
This is a dual-wheel idealisation. ESWL is evaluated at a stated depth and for a stated response criterion; it is not one fixed load for the axle.
Where:
- P = Load carried by each of the two identical wheels
- S = Centre-to-centre spacing between wheel contact areas
- d = Clear gap between the two circular contact areas
- z = Depth below the pavement surface where equivalent stress is compared
The Boyd–Foster equal-stress method assumes circular contact areas, a 45° influence angle and an elastic, homogeneous, isotropic half-space. It is a simplified analytical method; layered pavement analysis or another design criterion may require a different procedure. Use consistent units for S, d and z, and the same force unit for P and ESWL.
| Variable | Meaning |
|---|---|
| P | Load on each wheel |
| S | Centre-to-centre spacing |
| d | Clear gap between contact areas |
| z | Depth at which equal stress is considered |
4. ESWL Based on Stress Criterion
When calculating ESWL, two methods are generally considered: the deflection criterion and the stress criterion. The stress criterion is often preferred because it directly relates to the pavement’s structural capacity. Under this method, the Equivalent Single Wheel Load ESWL is defined as the load that generates the same stress at a given depth as a dual-wheel assembly.
Stress Criterion: What Is Being Matched?
Under the equal-stress criterion, ESWL is the single wheel load that produces the same vertical stress at the selected depth as the actual dual-wheel arrangement. The Boyd–Foster equation above is one classical way to estimate this for two identical wheels under its stated assumptions. A deflection-based ESWL is a different equivalency and should not be mixed with the equal-stress result.
Where:
- D is the depth of the pavement.
- S is the distance between wheel centers.
This formula helps estimate the stress distribution within the pavement structure, ensuring its durability and strength.
5. ESWL in Pavement Design
Pavement design relies on Equivalent Single Wheel Load in pavement design to ensure the load distribution is accurately modeled. Engineers use ESWL to determine the required thickness and material type for pavements, which helps prevent damage like cracking or rutting over time.
For example, Equivalent Single Axle Load (ESAL), another related concept, is commonly used to convert mixed traffic loads into equivalent uniform loads that a single axle would impose.
6. Factors Affecting ESWL
Several factors influence Equivalent Single Wheel Load (ESWL) calculations:
- Load magnitude: Heavier vehicles will result in higher ESWL values.
- Pavement depth: Deeper pavements will distribute the load more evenly, reducing stress on the surface.
- Wheel spacing: The closer the wheels are, the higher the combined load effect.
By considering these factors, engineers can design pavements that effectively distribute traffic loads.
7. Comparison Between Single and Dual Wheels
Dual wheels distribute the load more efficiently than single wheels, reducing the stress on the pavement. However, calculating the combined effect of two wheels is not as simple as adding their individual effects. Below is a comparison:
| Type | Load Distribution | Impact on Pavement |
|---|---|---|
| Single Wheel | Concentrated load | Higher stress on pavement |
| Dual Wheel | Distributed load | Lower stress at a given depth |
The equivalent single wheel load definition helps in converting dual loads into single-wheel equivalents for easier analysis.
8. Graphical Method for ESWL
The graphical method simplifies ESWL calculations by using a log-log scale to plot the relationship between load and pavement depth. Engineers can use this graph to estimate the ESWL for different pavement thicknesses.
- Shallow-depth limit: When the evaluation depth is no greater than half the clear gap, the two wheel stress zones are treated as acting separately and ESWL is approximately one wheel load P.
- Deeper limit: When the evaluation depth reaches the centre-to-centre spacing, the two wheel effects are treated as fully overlapping in this idealisation and ESWL is approximately 2P.
By drawing a straight line between points X and Y, engineers can determine the ESWL at any given pavement depth.
9. Examples of ESWL Calculation
Let’s calculate the equivalent single wheel load example:
Consider two identical wheels, each carrying P = 40 kN. Let the centre-to-centre spacing be S = 300 mm, the clear gap between circular contact areas be d = 100 mm, and calculate ESWL at z = 50 mm, 100 mm and 300 mm.
At z = 50 mm, z = d/2, so ESWL ≈ P = 40 kN. At z = 300 mm, z = S, so ESWL ≈ 2P = 80 kN. At the intermediate depth z = 100 mm, the Boyd–Foster equation gives:
log10(ESWL) = log10(40) + [0.301 × log10(100/50)] ÷ log10(600/50)
ESWL ≈ 48.5 kN. The equivalent load increases with depth in this idealised dual-wheel example because the two stress influence zones overlap more strongly.
10. ESWL Calculator Tools and Their Importance
To simplify the design process, several Equivalent Single Wheel Load calculators are available online. These tools allow engineers to quickly input variables such as load, spacing, and depth, providing a faster way to calculate ESWL.
Having access to an Equivalent Single Wheel Load PDF or calculator allows for more precise, repeatable calculations in the field.
11. Conclusion Equivalent Single Wheel Load
In pavement design, the concept of Equivalent Single Wheel Load (ESWL) is vital for accurately assessing the impact of vehicle loads. Using the correct ESWL ensures the longevity and safety of pavements, ultimately reducing repair costs and enhancing road safety. With the help of formulas, graphical methods, and online calculators, engineers can design pavements that withstand modern traffic loads.
By understanding and applying ESWL, you contribute to stronger, more durable infrastructure—essential for the growth and development of any region.
