Types of Beams in Construction: The Structural Backbone Explained

Beams form the skeletal framework of every structure, transferring loads from slabs to columns. This comprehensive guide explores all major beam types, their load behaviors, and real-world applications to help you select the right one for your project.

Why Beam Selection Matters

Choosing the wrong beam type can lead to:

Excessive deflection (sagging floors)
Shear cracks in critical zones
Cost overruns from over-engineering
Construction delays due to complex detailing

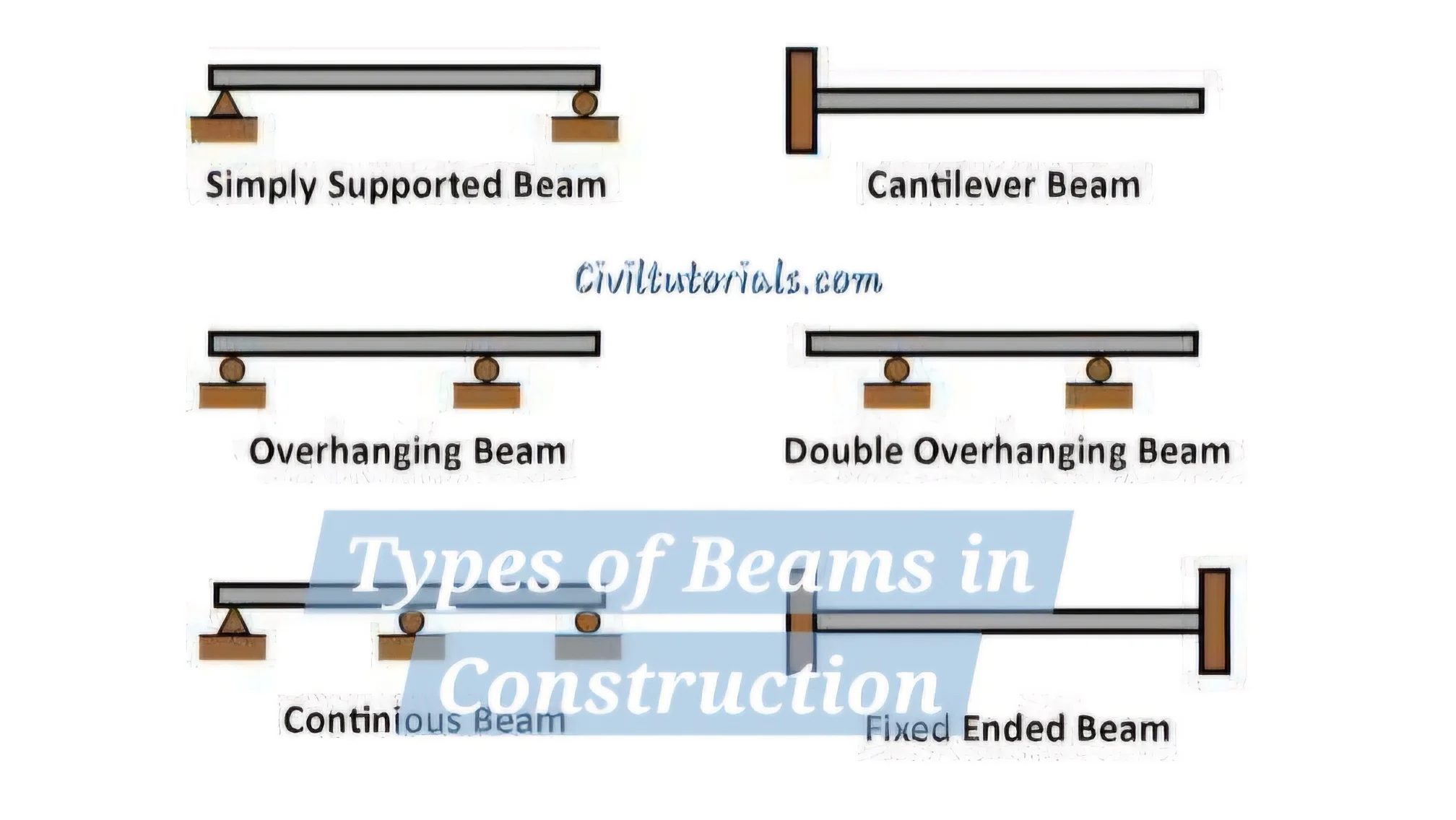

Classification by Support Conditions

1. Simply Supported Beams

The most common type in residential construction

Characteristics:
- Supported at both ends
- Free to rotate at supports
- Maximum moment at midspan
Applications:
- House floor beams
- Bridge decks
- Parking structures

2. Fixed Beams

For structures requiring rigid connections

Characteristics:
- Welded/monolithic at both ends
- Negative moments at supports
- Reduced deflection
Applications:
- High-rise moment frames
- Nuclear containment structures
- Earthquake-resistant buildings

3. Cantilever Beams

The daredevils of structural engineering

Characteristics:
- Fixed at one end only
- Maximum moment at support
- Large deflection risks
Applications:
- Balconies
- Signboards
- Stadium roofs

Classification by Cross-Section

Shape	Advantages	Limitations	Typical Use
Rectangular	Easy formwork	Low strength/weight	Residential slabs
T-Beam	Efficient with slabs	Complex detailing	Bridge decks
I-Beam	High moment capacity	Buckling risk	Industrial frames
L-Beam	Corner integration	Torsional weakness	Boundary edges

Specialized Beam Types

1. Lintel Beams

Purpose: Span door/window openings
Materials: Concrete, steel, or stone
Key Spec: Width = Opening + 150mm bearing

2. Tie Beams

Purpose: Connect pile caps/foundations
Reinforcement: Minimum 0.5% of cross-section

3. Grade Beams

Purpose: Transfer loads to piers
Construction: Cast directly on compacted soil

Load Transfer Mechanisms

1. Point Loads

Effect: Creates shear spikes
Solution: Stirrup spacing < d/2

2. Uniform Loads

Effect: Parabolic moment diagram
Solution: Deflection checks critical

3. Torsional Loads

Effect: Twisting deformation
Solution: Closed loop stirrups

Material Options Compared

Material	Span Capacity	Fire Rating	Cost (per m)
RCC	Up to 10m	2-4 hours	₹800-1,500
Steel	Up to 30m	1 hour	₹2,500-5,000
Wood	Up to 6m	30 minutes	₹300-700
PSC	Up to 40m	3 hours	₹3,000-6,000

Reinforcement Best Practices

✔ Main bars: Minimum 2 bars (top & bottom)
✔ Stirrups: 6mm Ø @ 150mm c/c (minimum)
✔ Development length: 50d for Fe500 steel
✔ Lapping zone: Midspan for simply supported

FAQs About Construction Beams

Q: Why do some beams have tapered ends?
A: To match moment diagrams – thicker where bending is maximum.

Q: How to choose between RCC and steel beams?
A: RCC for <10m spans/cost-sensitive projects; steel for longer spans/speed.

Q: What’s the minimum beam width for houses?
A: 225mm for residential, 300mm+ for seismic zones.

Q: Why do bridge beams have hollow sections?
A: Reduces dead weight while maintaining strength.

Emerging Beam Technologies

UHPC beams: 50% lighter than conventional
GFRP reinforcement: Corrosion-proof alternative
Shape memory alloys: Self-healing cracks
3D-printed beams: Custom geometries

Inspection Checklist

✔ Verify alignment with structural drawings
✔ Check concrete cover (25mm minimum)
✔ Confirm proper bar bending schedules
✔ Test vibration during pouring
