In concrete construction, ensuring the right consistency and workability of fresh concrete is crucial for achieving strength, durability, and ease of placement. One of the simplest and most widely used tests for assessing concrete’s workability is the slump test. This method is especially popular on construction sites due to its simplicity, speed, and effectiveness.
In this detailed guide, we will explain what is slump test, its procedure, apparatus used, types of slumps, factors affecting results, interpretation, and common FAQs. Whether you’re a civil engineer, construction professional, or a student, this article will provide all the valuable and practical insights you need.
What is Slump Test?
The slump test is a field test conducted to determine the workability or consistency of freshly mixed concrete. Workability refers to how easily concrete can be mixed, placed, compacted, and finished without segregation.
The test involves filling a cone-shaped mold with fresh concrete, removing the mold, and measuring how much the concrete slumps (settles) vertically. The amount of slump indicates the fluidity of the mix.
This test is standardized by IS: 1199 – 1959, ASTM C143/C143M, and BS EN 12350-2.
Importance of Slump Test in Construction
- Ensures concrete has the desired workability for the specific application
- Helps detect inconsistencies in mixing or batching
- Verifies uniformity of concrete across different batches
- Avoids segregation and bleeding
- Prevents placement issues due to overly stiff or too fluid concrete
Slump Test Apparatus
To perform the slump test, you need specific tools and equipment. The standard slump test apparatus includes:
Standard Equipment List
- Slump Cone (Abrams Cone): Made of metal, 300 mm high, with a bottom diameter of 200 mm and top diameter of 100 mm
- Tamping Rod: Steel rod 16 mm diameter and 600 mm long, with rounded ends
- Base Plate: Flat, non-absorbent base (usually steel or glass)
- Measuring Scale or Tape: To measure slump
- Trowel or Scoop: For placing concrete in the cone
Slump Test Procedure Step by Step
Performing the slump test involves the following steps:
Step 1: Preparation
- Clean the cone and base plate thoroughly
- Place the cone on a flat, moist, and non-absorbent surface
- Hold the cone firmly by footrests or handles

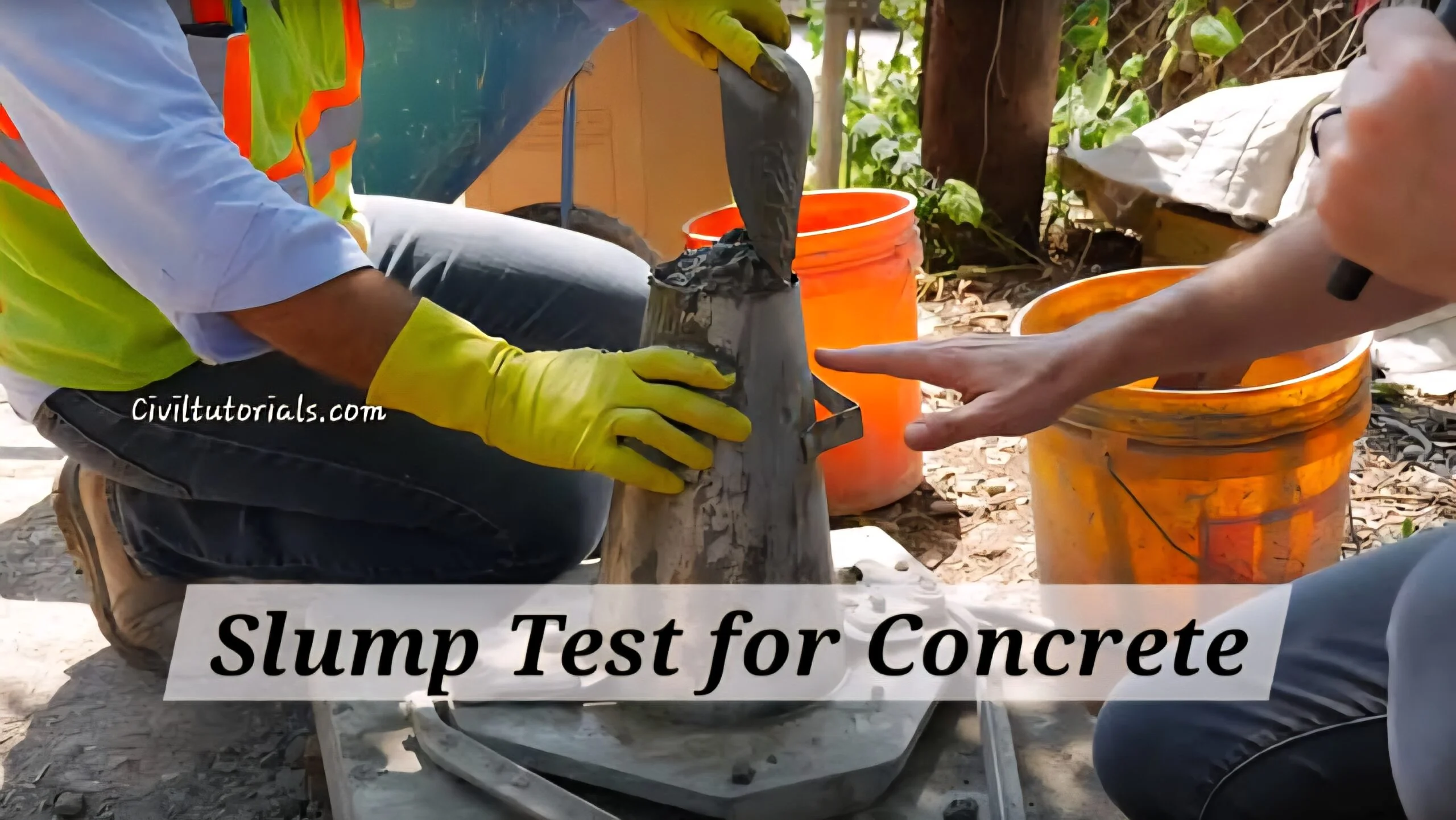

Step 2: Filling the Cone
- Fill the cone in three equal layers by volume
- First Layer: Fill 1/3 of the cone and tamp it 25 times using the tamping rod
- Second Layer: Fill another 1/3 and tamp 25 times again
- Third Layer: Fill the cone completely and tamp 25 times; ensure rod penetrates the second layer without striking the base
Step 3: Leveling and Lifting
- Strike off excess concrete at the top with the trowel
- Gently lift the cone vertically and slowly within 5–10 seconds without twisting
- Concrete will slump (settle) on its own
Step 4: Measuring the Slump
- Place the cone next to the slumped concrete
- Measure the vertical difference between the height of the cone and the highest point of slumped concrete
- Record the result in millimeters
Types of Slump and Their Interpretation
The shape of the slumped concrete can indicate additional information about the mix quality.
| Type of Slump | Description | Indication |
|---|---|---|
| True Slump | Concrete subsides uniformly without shear or collapse | Mix is cohesive and has good workability |
| Shear Slump | Top portion shears off and slips sideways | Mix may lack cohesion, possibly segregated |
| Collapse Slump | Concrete collapses completely, losing shape | Mix is too wet or has high water-cement ratio |
| Zero Slump | No measurable slump | Mix is very stiff and has low workability |
Recommended Slump Values for Various Applications
| Application Area | Recommended Slump (mm) |
|---|---|
| Pavements | 0 – 25 mm |
| Foundations | 25 – 75 mm |
| Beams and Slabs | 50 – 100 mm |
| Columns | 75 – 100 mm |
| Mass Concreting (like dams) | 25 – 50 mm |
| Slipform Construction | 0 – 25 mm |
Factors Affecting Slump Test Results
Several factors can influence the outcome of the slump test:
- Water-Cement Ratio: Higher water content increases slump
- Aggregate Size and Shape: Rounded aggregates yield higher slump than angular ones
- Temperature: High ambient temperature may reduce workability
- Mixing Time: Longer mixing can lead to loss of slump due to evaporation
- Admixtures: Use of plasticizers or superplasticizers can alter slump significantly
- Delay in Testing: Delays after mixing reduce slump values as concrete starts setting
Advantages of Slump Test
- Quick and simple to perform
- Requires minimal equipment
- Suitable for site conditions
- Useful for batch-to-batch consistency check
- No need for laboratory setup
Limitations of Slump Test
While useful, the slump test also has its drawbacks:
- Not suitable for very dry or very fluid mixes
- Does not directly indicate concrete strength
- Prone to operator error if not performed correctly
- Not accurate for high-performance concrete or mixes with high workability
Slump Test vs Other Workability Tests
| Test Name | Application | Accuracy | Notes |
|---|---|---|---|
| Slump Test | General site use | Moderate | Simple and quick |
| Compacting Factor | Low workability mixes | High | Suitable for laboratory |
| Vee-Bee Consistometer | Very low workability mixes | High | Requires special apparatus |
| Flow Table Test | High flow concrete (e.g., SCC) | High | Used for self-compacting concrete |
Slump Test for Different Concrete Types
Plain Cement Concrete (PCC)
- Requires moderate workability
- Target slump: 50–75 mm
Reinforced Cement Concrete (RCC)
- Needs high workability for proper compaction around rebars
- Target slump: 75–125 mm
Self-Compacting Concrete (SCC)
- Not suitable for slump test
- Flow tests are recommended instead
High-Strength Concrete
- May show lower slump due to low water-cement ratio
- Use admixtures to achieve desired workability
Best Practices for Accurate Slump Test Results
- Test concrete within 15 minutes after mixing
- Avoid jerking or tilting while lifting the cone
- Always clean equipment before each test
- Record temperature and environmental conditions during the test
- Perform the test on a flat, non-absorbent surface
FAQs – Slump Test: Procedure, Apparatus, and Result
What is the slump test used for?
The slump test is used to measure the workability or consistency of freshly mixed concrete to ensure it can be easily placed and compacted.
What does a high slump value mean?
A high slump indicates that the concrete is more fluid or workable. However, very high slump may signal excessive water or risk of segregation.
What is the ideal slump for RCC?
For reinforced concrete, an ideal slump is generally between 75 mm and 125 mm, depending on structural complexity and reinforcement density.
Can we perform a slump test on hardened concrete?
No, the slump test is only applicable to freshly mixed concrete. Hardened concrete requires other tests like compressive strength or core cutting.
Is the slump test mandatory on all construction sites?
Yes, for quality assurance, slump tests are widely conducted on-site during every batch of concrete used in structural elements.
How do admixtures affect the slump?
Admixtures like plasticizers and superplasticizers can increase workability without adding extra water, resulting in higher slump without compromising strength.
Why does concrete show zero slump sometimes?
Zero slump may indicate a very stiff mix, suitable for applications like road pavements. It may also occur due to very low water content.
How many times should the concrete be tamped in a slump test?
Each layer of concrete (three layers in total) should be tamped 25 times using a standard tamping rod.
Conclusion: Understanding the Slump Test for Better Quality Control
The slump test is a reliable and essential tool for ensuring that concrete used on-site has the correct consistency for the task at hand. While it’s not a comprehensive test for strength or durability, it serves as a frontline method to monitor workability, detect mix inconsistencies, and maintain quality control.
By following proper procedure, understanding the influencing factors, and interpreting results correctly, the slump test becomes an indispensable part of modern construction practices.
