Surveying technology has evolved rapidly, and one of the most advanced tools today is the Robotic Total Station Survey. This instrument combines precision engineering with automation, enabling surveyors to complete complex measurement tasks faster and more efficiently. In this article, we’ll discuss how robotic total station surveys work, their main advantages, and when to use them in different types of civil and construction projects.

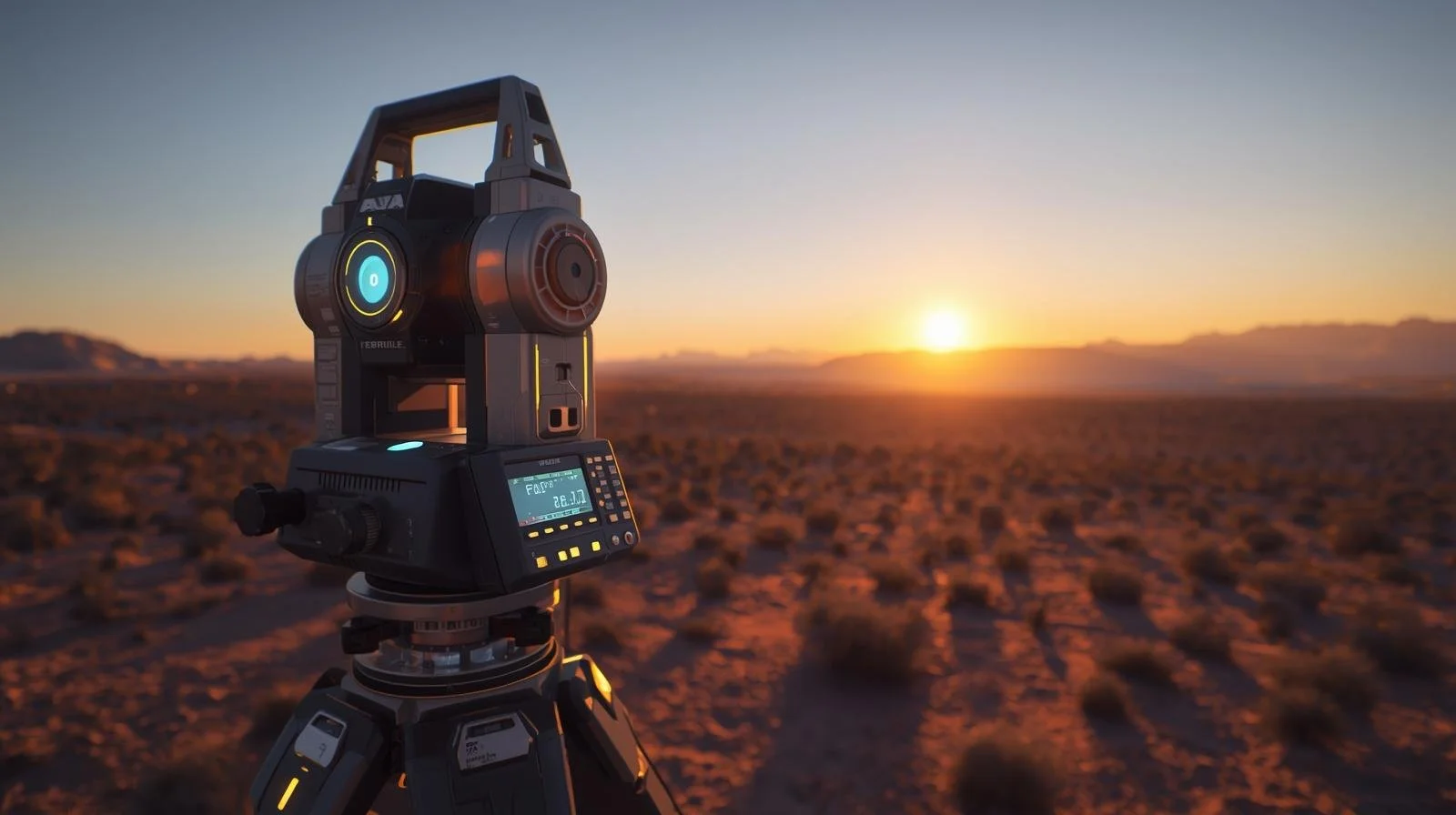

What is a Robotic Total Station Survey?
A robotic total station survey uses an advanced total station instrument that automatically tracks the target prism and performs measurements without manual operation. It integrates angle measurement, distance measurement, and automated control, allowing a single operator to handle the entire survey. This automation enhances efficiency and accuracy in modern land surveying.
How it Differs from Conventional Total Station
Traditional total stations require two people—one at the instrument and another holding the prism. A robotic total station, however, can be operated remotely using a controller, making it faster and more cost-effective for large-scale projects.
How Robotic Total Station Works
To understand the advantages of robotic total stations, let’s explore their working process. They combine mechanical, optical, and digital systems to automate measurement and data capture.
Step-by-Step Working Process
- The robotic total station is set up and leveled on the tripod.
- The prism is placed at the survey point.
- The station locks onto the prism using auto-target recognition.
- The operator remotely controls the instrument via Bluetooth or Wi-Fi.
- Distance, angle, and coordinate data are captured automatically.
- Data is stored digitally or transmitted to field software in real-time.
Main Components of a Robotic Total Station
Every robotic total station consists of several key components that work together for efficient surveying.
Essential Parts
- EDM (Electronic Distance Measurement): Measures distance using a laser beam.
- Servo Motors: Automatically rotate and track the prism.
- Control Unit: Operated by the surveyor remotely.
- Microprocessor: Processes and stores measurement data.
- Communication Module: Enables Bluetooth, Wi-Fi, or radio connectivity.
Advantages of Robotic Total Station Survey
The robotic total station offers numerous advantages that make it the preferred choice for professional surveyors today.
Top Advantages
- Single-Person Operation: Eliminates the need for a second operator.
- High Precision: Provides millimeter-level accuracy.
- Increased Productivity: Reduces field time and increases data collection speed.
- Real-Time Data Transfer: Integrates with GNSS and CAD software.
- Improved Safety: Allows operation from a safe distance in hazardous environments.
- Remote Control Flexibility: Enables full control from hundreds of meters away.
- Cost-Effective Over Time: Reduces labor costs and project delays.
When to Use Robotic Total Station Survey
Robotic total station surveys are ideal for projects requiring high accuracy and large-scale data collection. They are commonly used in civil, construction, and infrastructure projects.
Best Use Scenarios
- Highway and Road Projects: Accurate layout and alignment.
- Construction Sites: Building foundations, columns, and grids.
- Bridge and Tunnel Surveys: Safe and remote measurement of difficult areas.
- Topographic Mapping: Detailed terrain modeling.
- Railway and Metro Projects: Precision alignment and slope measurement.
Key Applications of Robotic Total Station in Engineering
The flexibility of robotic total stations makes them suitable for a wide range of engineering tasks.
Major Application Fields
- Land Development: Plotting and boundary marking.
- Structural Monitoring: Detecting displacement in high-rise structures.
- As-Built Surveys: Recording completed works with precision.
- Volume Calculations: Earthwork and excavation measurement.
- Utility Mapping: Underground and surface infrastructure tracking.
Robotic Total Station vs Manual Total Station
It’s important to understand how robotic systems outperform manual ones in terms of efficiency and capability.
Comparison Table
| Feature | Robotic Total Station | Manual Total Station |
|---|---|---|
| Operation | One person | Two persons |
| Tracking | Automatic | Manual sighting |
| Data Transfer | Real-time digital | Manual download |
| Productivity | High | Moderate |
| Cost | Higher initial, lower long-term | Lower initial, higher labor |
Factors Affecting Accuracy in Robotic Total Station Survey
Although robotic total stations are highly accurate, certain conditions can influence their performance.
Key Accuracy Factors
- Instrument calibration and maintenance.
- Environmental conditions such as wind and temperature.
- Surface reflectivity of the prism.
- Communication signal strength.
Choosing the Right Robotic Total Station
Selecting the right equipment depends on project type, precision needs, and budget.
Important Selection Criteria
- Range and Accuracy: Match specifications to project scale.
- Battery Life: Essential for long working hours.
- Software Compatibility: Ensure integration with CAD and GIS tools.
- Data Storage: Sufficient capacity for large projects.
- Brand Support: Choose reliable brands like Leica, Trimble, Topcon, or Sokkia.
Maintenance and Calibration Tips
Proper care ensures long-term accuracy and reliability.
Best Practices
Clean lenses and mirrors regularly, perform calibration checks monthly, and store instruments in a dust-free environment. Avoid exposure to rain or direct sunlight for long durations.
Integration with Other Technologies
Modern robotic total stations integrate seamlessly with GNSS, UAVs, and laser scanning for complete geospatial solutions. This integration boosts efficiency in large infrastructure projects and provides accurate 3D mapping data.
Benefits of Using Robotic Total Station in Construction
Construction projects demand precision and speed. Robotic total stations deliver both through automation and digital connectivity.
Construction Advantages
- Enables faster layout and stakeout.
- Reduces human error in alignment.
- Provides digital records for quality assurance.
- Supports Building Information Modeling (BIM) integration.
FAQs About Robotic Total Station Survey
What is the range of a robotic total station?
Most models can measure up to 1000–1500 meters depending on the environment and prism quality.
Is it difficult to operate a robotic total station?
Not at all. Once trained, operators can control the instrument easily through a handheld controller.
Can one person operate a robotic total station survey?
Yes, that’s one of its biggest advantages—it’s designed for single-person operation.
Does a robotic total station work in all weather conditions?
It performs well in most conditions but may require protection during heavy rain or dust storms.
Which brand offers the best robotic total station?
Leica, Trimble, and Topcon are globally trusted brands known for precision and reliability.
Conclusion
A Robotic Total Station Survey brings automation, precision, and efficiency to modern surveying. It reduces manpower, saves time, and enhances accuracy—making it a perfect choice for today’s construction and engineering projects. Whether you’re mapping land, aligning structures, or monitoring deformation, robotic total stations provide consistent, reliable, and cost-effective performance.
