Pipe culvert is one of the most commonly used cross-drainage structures in road, railway, and irrigation projects. It allows water to pass safely beneath embankments such as roads or rail tracks without disturbing the surface traffic. Due to its simple design, ease of construction, and cost-effectiveness, the pipe culvert is widely adopted in small to medium drainage works across urban and rural infrastructure projects.
What is a Pipe Culvert?

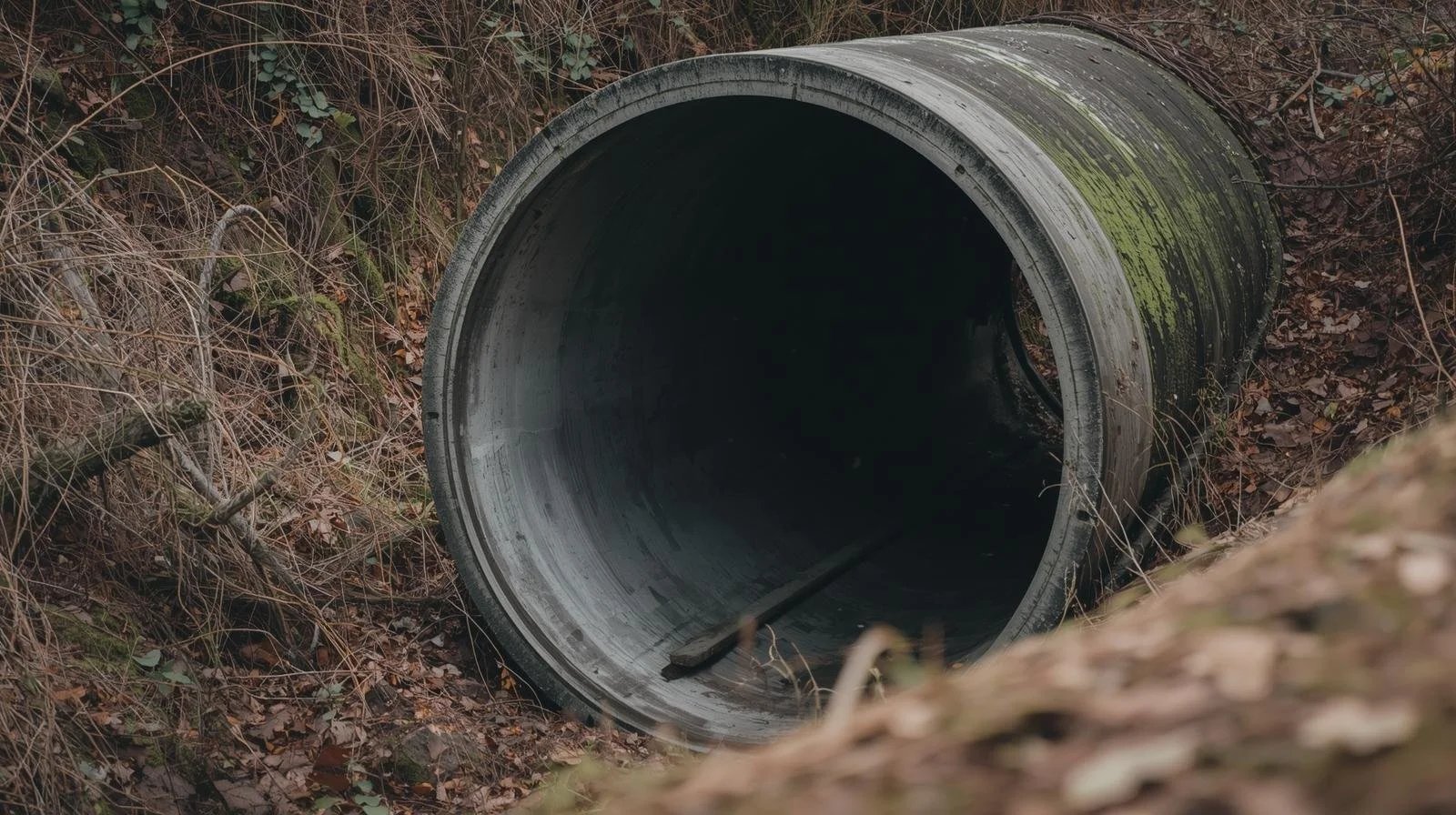

A pipe culvert is a drainage structure consisting of one or more pipes laid below a roadway or embankment to convey stormwater, natural streams, or runoff from one side to the other. The pipe acts as a conduit, preventing water accumulation on the road surface and protecting the embankment from erosion and failure. Pipe culverts are generally circular in shape and made from materials such as reinforced concrete, steel, HDPE, or corrugated metal.
Purpose of Pipe Culvert
The primary purpose of a pipe culvert is to maintain natural water flow across embankments while ensuring the stability and safety of the road or structure above. It helps in preventing waterlogging, reducing flood risk, minimizing soil erosion, and extending the service life of pavements and embankments. Pipe culverts also play a critical role in maintaining environmental balance by allowing uninterrupted water movement.
Types of Pipe Culverts
Single Pipe Culvert
A single pipe culvert consists of one circular pipe and is used where the discharge of water is small. It is commonly provided in village roads, low-traffic rural roads, and temporary access roads where drainage demand is limited.
Multiple Pipe Culvert
A multiple pipe culvert uses two or more parallel pipes to carry higher water discharge. This type is adopted where the available headroom is limited but water flow is high. Multiple pipe culverts are frequently used in highways and urban drainage systems.
Reinforced Cement Concrete (RCC) Pipe Culvert
RCC pipe culverts are the most widely used due to their high strength, durability, and long service life. They can withstand heavy traffic loads and are suitable for both permanent and semi-permanent works.
Steel Pipe Culvert
Steel pipe culverts are used where quick installation is required. They are lightweight compared to RCC pipes but need proper corrosion protection, especially in aggressive soil or water conditions.
Corrugated Metal Pipe Culvert
These culverts are made from corrugated steel or aluminum sheets. The corrugation provides additional strength and flexibility, making them suitable for areas with settlement-prone soil.
Plastic and HDPE Pipe Culvert
HDPE pipe culverts are lightweight, corrosion-resistant, and easy to install. They are commonly used for small drainage works and temporary installations.
Components of a Pipe Culvert
A typical pipe culvert consists of several important components that ensure proper performance and durability. These include the pipe barrel, which carries the water, headwalls at the inlet and outlet to retain the embankment soil, wing walls to guide water flow, bed bedding to support the pipe uniformly, and aprons to prevent erosion at the outlet.
Design Considerations for Pipe Culvert
Design of a pipe culvert depends on hydraulic, structural, and site conditions. The hydraulic design ensures that the culvert can safely carry the design discharge without causing flooding. The diameter of the pipe is selected based on peak flow, velocity, and allowable headwater depth. Structural design ensures that the pipe can resist loads from soil cover, traffic loads, and water pressure. Adequate cover depth, pipe strength, and bedding type are essential to prevent cracking or collapse.
Hydraulic Design of Pipe Culvert
The hydraulic capacity of a pipe culvert depends on factors such as pipe diameter, slope, roughness coefficient, inlet control, and outlet conditions. The most commonly used formulas for hydraulic design include Manning’s equation and energy balance methods. The culvert must be designed to avoid excessive head loss, overtopping of the road, or backwater effects upstream.
Construction Procedure of Pipe Culvert
Construction of a pipe culvert follows a systematic sequence to ensure proper alignment and performance. First, excavation is carried out to the required depth and width. Then, bedding material such as sand or lean concrete is laid and compacted. The pipe sections are placed carefully with proper alignment and jointing. After placement, backfilling is done in layers with proper compaction. Finally, headwalls and wing walls are constructed, followed by curing and finishing works.
Advantages of Pipe Culvert
Pipe culverts offer several advantages in construction projects. They are economical, especially for small spans and low discharges. Their construction is fast and requires less skilled labor compared to slab or box culverts. Pipe culverts are easy to maintain, occupy less space, and are available in standard sizes. RCC pipe culverts provide long service life with minimal maintenance.
Disadvantages of Pipe Culvert
Despite their benefits, pipe culverts have certain limitations. They are not suitable for very large discharges or wide water channels. Blockage due to debris accumulation is a common issue if proper maintenance is not carried out. Inadequate bedding or poor installation can lead to settlement and cracking.
Pipe Culvert vs Box Culvert
| Aspect | Pipe Culvert | Box Culvert |
|---|---|---|
| Shape | Circular | Rectangular |
| Water Capacity | Low to Medium | Medium to High |
| Cost | Economical | Costlier |
| Construction | Faster | Slower |
| Maintenance | Easier | Moderate |
| Application | Small drainage | Large drainage |
Uses of Pipe Culvert
Pipe culverts are widely used in road construction, railway embankments, irrigation channels, stormwater drainage systems, driveway crossings, and farm access roads. They are ideal where water flow is seasonal or limited and space availability is restricted.
Maintenance of Pipe Culvert
Regular maintenance is essential to ensure long-term performance of pipe culverts. This includes periodic removal of silt and debris, inspection for cracks or joint leakage, checking for erosion at inlet and outlet, and repairing damaged headwalls. Proper maintenance significantly reduces the risk of failure during heavy rainfall.
IS Code Provisions for Pipe Culvert
In India, pipe culverts are designed and constructed as per IRC:SP:13, IS 458 for RCC pipes, and IRC:5 for road drainage. These codes specify requirements for pipe strength, dimensions, testing, installation, and load considerations to ensure safety and durability.
Conclusion
Pipe culvert is a simple yet highly effective drainage structure used extensively in civil engineering projects. With proper design, material selection, and construction practices, pipe culverts provide a reliable solution for cross drainage works. Their affordability, ease of installation, and adaptability make them a preferred choice for engineers and contractors in road, railway, and irrigation projects.
