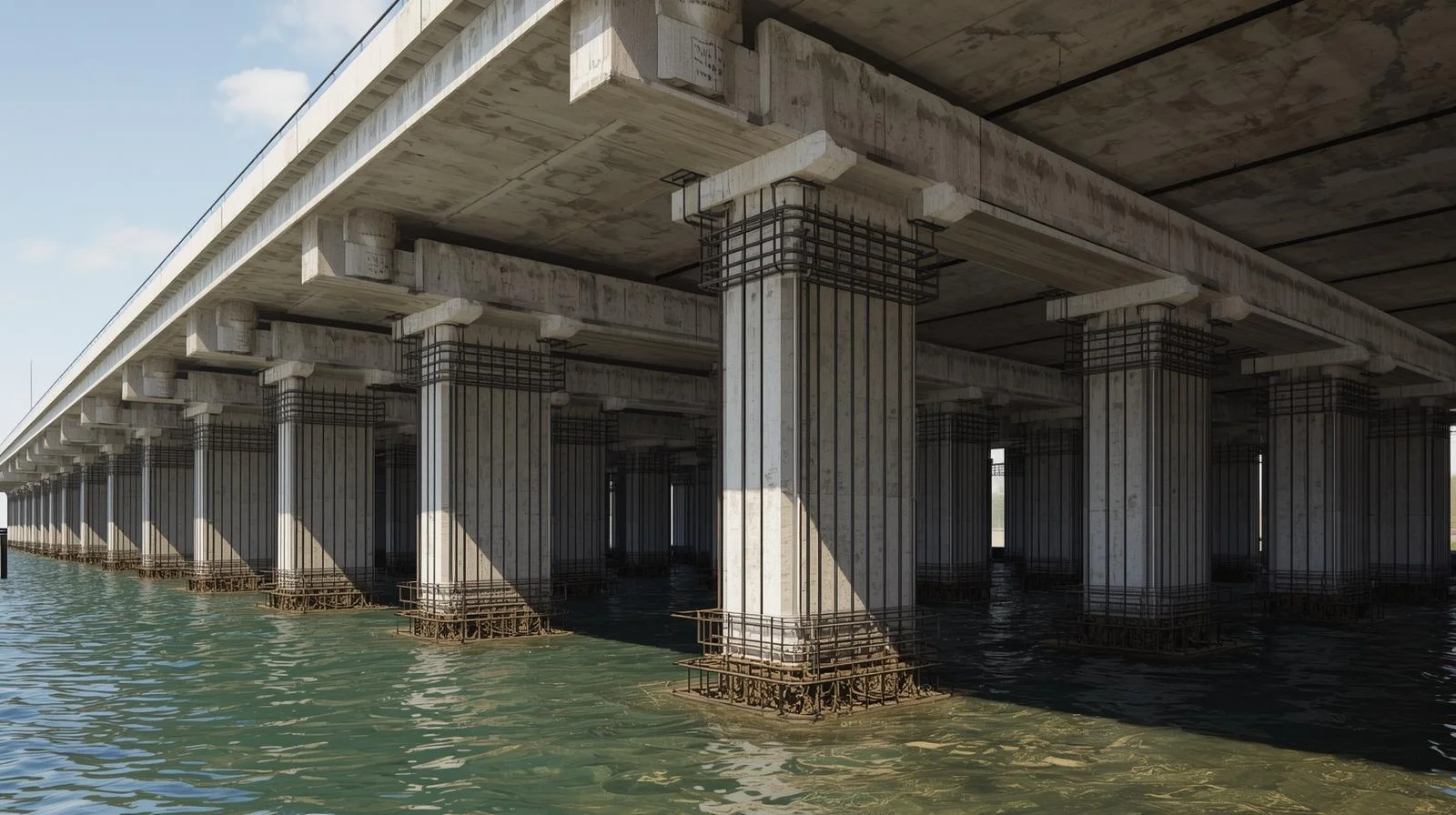

Pile foundation is a deep construction solution that transfers structural loads through weak topsoil to stronger layers beneath. These vertical structural elements are essential for skyscrapers, bridges, and unstable soil conditions. This guide covers all key aspects—from concrete pile types to installation methods—with real-world examples and expert FAQs.
What is Pile Foundation
A pile foundation is a type of deep foundation that transfers the load of a structure to deeper and stronger soil layers when the surface soil is too weak to support the building. Instead of relying only on shallow ground, piles act like long, slender columns made of concrete, steel, or timber, driven or bored deep into the earth.
The main purpose of a pile foundation is to bypass soft, loose, or compressible soil near the surface and transfer structural loads to hard strata or rock layers located deeper underground. This makes it ideal for tall buildings, bridges, flyovers, marine structures, and areas with waterlogged or unstable soils.
Pile foundations not only handle vertical loads but also resist lateral forces, vibrations, and uplift pressure. That is why they are widely used in earthquake-prone regions, coastal projects, and industrial plants where heavy machinery creates continuous vibrations.
In simple words, pile foundation ensures safety, durability, and stability in places where shallow foundations like strip or raft foundations cannot perform effectively.
When Are Pile Foundations Needed?
Pile foundations are used when the soil near the surface cannot safely carry the load of the structure. Instead of resting the building on weak soil, piles transfer the load to deeper and stronger layers. Civil engineers recommend pile foundations in the following conditions:
Weak or Compressible Surface Soil
If the top soil has low bearing capacity or is highly compressible, shallow foundations are not suitable. Piles bypass this weak layer and rest on firm soil or rock.
Heavy Structural Loads
High-rise buildings, bridges, chimneys, and industrial plants exert very heavy loads that shallow foundations cannot handle. Piles ensure stability by reaching deep strata.
Waterlogged or Marine Areas
In places with high groundwater or in marine structures like docks, ports, and offshore platforms, pile foundations are essential because shallow foundations are impractical.
Expansive or Problematic Soils
Soils like black cotton soil, peat, or loose sand expand, shrink, or shift with moisture changes. Piles minimize settlement and movement in such soils.
Structures Subjected to Uplift or Lateral Forces
Tall towers, transmission lines, and wind turbines face strong wind and seismic forces. Piles provide resistance against uplift and lateral movement.
Projects Requiring Underpinning
When existing structures need strengthening due to increased load or soil failure, micropiles or underpinning piles are installed.
Types of Pile Foundations
Pile foundations can be divided into different categories depending on load transfer, function, material, and method of installation. Each type serves a unique purpose in civil engineering and helps in improving the stability of structures.
Based on Load Transfer
- End Bearing Piles – Transfer building loads directly to a firm stratum such as rock. The pile acts as a column between the structure and strong soil beneath.
- Friction Piles – Transfer loads through skin friction along the pile surface when no hard stratum is available.
- Combination Piles – Use both skin friction and end bearing for load transfer.
Based on Function
- Load Bearing Piles – Carry the vertical loads of structures.
- Tension or Uplift Piles – Resist uplift forces from wind, water, or earthquakes.
- Compaction Piles – Increase soil density and bearing capacity by displacement.
- Anchor Piles – Provide lateral resistance in retaining walls, docks, or sheet pile structures.
- Fender Piles – Protect piers and jetties from ship impact.
- Sheet Piles – Retain soil or prevent water seepage in cofferdams and deep excavations.
Based on Material
- Timber Piles – Economical, traditional, used in temporary or light structures.
- Concrete Piles – Durable, precast or cast in situ, suitable for heavy loads.
- Steel Piles – High strength, easy to drive, commonly used in marine works.
- Composite Piles – Combination of materials like steel and concrete for enhanced performance.
Based on Method of Installation
- Driven Piles – Precast piles driven with hammers, suitable for most soil conditions.
- Bored Piles – Holes drilled and filled with concrete, minimizing vibration.
- Screw Piles – Installed by screwing into soil, fast and effective for light to medium loads.
- Micropiles – Small-diameter piles used for underpinning or strengthening existing structures.
Step-by-Step Installation Process
Pile foundation installation follows a clear sequence from investigation to testing; each step ensures the piles perform as intended under the structure’s loads.
Site Investigation & Planning
A reliable installation starts with a thorough site investigation that identifies soil stratigraphy, groundwater level, and presence of obstructions.
Geotechnical reports determine whether end-bearing or friction piles are needed, estimated pile length, and allowable loads.
Design decisions (pile type, diameter, spacing, and pile cap arrangement) are finalized from these findings.
Marking and Setting Out
Accurate setting-out transfers the design to the site.
Surveyors mark pile centerlines and grid coordinates using total stations or survey instruments.
Proper layout prevents pile head clashes and ensures pile groups align with column locations.
Mobilization of Equipment & Materials
Bring in rigs, pile hammers, cranes, casing, reinforcement cages, concrete, and steel or precast piles.
Check equipment capacity against pile length and anticipated driving resistance.
Prepare staging areas for safe storage and easy handling of piles and reinforcement.
Driven Piles — Driving/Installation
Precast concrete or steel piles are placed on the marked location and driven using impact hammers or vibratory drivers.
Driving continues until the specified tip elevation or refusal criteria are met, often verified by blows per unit penetration.
Use the pile driving formula (PDA) or dynamic monitoring to estimate bearing capacity during driving for critical projects.
Bored / Cast-in-situ Piles
Drill a bore to design diameter using augers or rotary rigs, controlling spoil and groundwater as needed.
Place reinforcement cage and tremie or pour concrete to form the pile (use casing or slurry where necessary).
Ensure concrete quality, proper compaction (if required), and continuous placement to avoid cold joints.
Screw Piles & Micropiles Installation
Screw piles are rotated into the soil using hydraulic motors until target torque or depth is reached.
Micropiles are installed by drilling small-diameter holes, installing a reinforcement or tendon, and grouting under pressure.
These methods minimize vibration and are suitable for restricted sites or underpinning.
Cutting/Trimming Pile Heads & Pile Cap Formation
After installation, pile heads are cut to the required level and cleaned.
If using augmentations (like a cast-in-situ pile top), prepare reinforcement for pile caps.
Cast pile caps to tie piles into a single foundation unit, ensuring proper cover, compaction, and curing.
Pile Integrity Testing & Load Tests
Carry out pile integrity tests (PIT / low-strain) to check for cracks, voids, or defects in installed piles.
Perform static load tests or dynamic load tests on sample piles to confirm design capacity and settlement behavior.
Record test results and compare with design assumptions; revise design if tests indicate deficiencies.
Quality Control & Tolerances
Monitor verticality, alignment, depth, and concrete strength systematically.
Typical tolerances: vertical plumb within 1% to 2% (depending on spec), top level within ±25 mm (project dependent).
Document material certificates, batch test results, driving records, and weld reports for traceability.
Safety & Environmental Considerations
Implement vibration and noise controls for driven piles in urban areas (use vibratory drivers or bored piles if required).
Provide PPE, exclusion zones, and safe rig operation procedures to protect workers.
Manage spoil, slurry, and runoff to prevent site contamination and comply with environmental regulations.
Record Keeping and As-Built Documentation
Maintain daily installation logs with pile ID, location, depth, blows (if driven), torque (if screw), concrete volumes, and anomalies.
Prepare an as-built drawing showing actual pile depths, cut-off levels, and test results.
Good documentation supports future maintenance, dispute resolution, and structural assessments.
Typical Checks and Acceptance Criteria
- Verify pile length and cut-off elevation against design.
- Confirm concrete compressive strength from core or cube tests.
- Accept piles only after passing integrity and load test criteria or after agreed remedial measures.
- Ensure pile caps and connections meet reinforcement and cover specifications.
FAQs — Installation
Q: How is pile length decided on site?
A: Pile length is decided from geotechnical data and confirmed by installation behavior (refusal, blows, or torque). Tests may lead to minor length adjustments.
Q: When should bored piles be preferred over driven piles?
A: Choose bored piles where vibration/noise is a concern, in very dense strata, or near sensitive structures.
Q: What is a pile load test and why is it done?
A: A pile load test applies controlled load to a test pile to measure settlement and verify capacity; it validates design assumptions.
Q: Can installed piles be remedied if defective?
A: Yes — common remedies include jet grouting, additional piles, enlarging pile caps, or local repairs based on defect type.
Q: How many piles require testing?
A: Project codes/specifications usually require at least one static load test per pile group or a percentage of piles, but critical projects may test more.
Pile Foundation vs. Other Types
Pile foundation is one of the most widely used deep foundation systems, but it is not the only choice available. Engineers often compare pile foundations with other types such as shallow foundations, raft foundations, caisson foundations, pad foundations, and strip foundations to decide the most suitable option. Each foundation type has its own advantages depending on soil conditions, structural load, and project requirements.
Pile Foundation vs. Shallow Foundation
Shallow foundations are placed near the surface and are economical for light to moderate structures built on firm soil. Pile foundations, however, transfer loads to deeper, stronger soil layers. They are necessary where shallow soil is weak, compressible, or waterlogged, making shallow foundations unsafe.
Pile Foundation vs. Raft Foundation
Raft foundations spread loads across a large slab under the building. They are suitable for moderate soils where load distribution is even. Pile foundations are more reliable when the soil has varying strength, high groundwater levels, or when heavy loads need to be supported.
Pile Foundation vs. Caisson Foundation
Caisson foundations are large hollow shafts filled with concrete, often used in bridges and marine structures. While both piles and caissons can carry heavy loads, piles are faster to install and more cost-effective for most buildings, whereas caissons are chosen for deep-water and riverbed projects.
Pile Foundation vs. Pad Foundation
Pad foundations are simple square or rectangular bases supporting individual columns. They are cost-effective for small structures on strong soil. Pile foundations, on the other hand, are used for high-rise or heavy structures where pad foundations would fail due to weak ground.
Pile Foundation vs. Strip Foundation
Strip foundations run continuously under load-bearing walls and are common in housing projects. They work well on firm soils but cannot handle very heavy loads or weak ground conditions. In such cases, pile foundations are the preferred choice.
Key Comparison Table
| Foundation Type | Soil Conditions | Load Capacity | Cost | Best Application |
|---|---|---|---|---|
| Pile Foundation | Weak, compressible, waterlogged soils | Very High | High | High-rise buildings, bridges, marine works |
| Shallow Foundation | Strong surface soils | Low to Moderate | Low | Residential, small structures |
| Raft Foundation | Moderate soils with risk of settlement | Moderate | Medium | Factories, large buildings |
| Caisson Foundation | Deep water, riverbeds | Very High | Very High | Bridges, offshore projects |
| Pad Foundation | Firm soils, light to medium loads | Low to Moderate | Low | Small structures, sheds |
| Strip Foundation | Firm soil under walls | Moderate | Low | Houses, load-bearing wall buildings |
FAQs on Comparison
Q: Why are pile foundations chosen over shallow foundations?
A: Because they transfer loads to deeper, stronger soil layers, making them suitable for weak or waterlogged soils.
Q: Is raft foundation cheaper than pile foundation?
A: Yes, but it is less effective in very poor soils where piles are more reliable.
Q: Can caissons be replaced with piles in marine projects?
A: For lighter marine works, yes, but for large bridges in deep water, caissons are more suitable.
Q: Do engineers ever combine raft and pile foundations?
A: Yes, in some cases a piled raft foundation is used for extra safety and load distribution.
FAQs About Pile Foundations
Q1. What is the main purpose of a pile foundation?
The main purpose of a pile foundation is to transfer the load of a structure to deeper and stronger soil or rock layers when the surface soil is weak or compressible.
Q2. When should pile foundations be used instead of shallow foundations?
Pile foundations should be used when the soil near the surface cannot support loads, when there is a high groundwater table, or when the structure is heavy such as high-rise buildings, bridges, and marine structures.
Q3. What are the common materials used for piles?
Piles are commonly made from concrete, steel, timber, and sometimes composite materials. Each material is selected based on load requirements and environmental conditions.
Q4. How long do pile foundations last?
Well-designed and properly constructed pile foundations can last for 50 to 100 years or more, depending on soil conditions, material type, and maintenance.
Q5. What are the main types of pile foundations?
The main types are end-bearing piles and friction piles. End-bearing piles transfer load to a hard stratum, while friction piles rely on surface resistance along the pile shaft.
Q6. Are pile foundations expensive?
Yes, pile foundations are more expensive than shallow foundations because they require specialized equipment and deeper construction, but they provide greater safety in poor soil conditions.
Q7. Can pile foundations be used in earthquake-prone areas?
Yes, pile foundations are suitable for seismic zones as they provide stability and reduce the risk of differential settlement during ground shaking.
Q8. What is the difference between driven piles and bored piles?
Driven piles are hammered or vibrated into the soil, while bored piles are constructed by drilling a hole and filling it with concrete. Driven piles are faster but cause noise and vibrations, whereas bored piles are quieter and suitable for urban areas.
Q9. Do piles work in waterlogged or coastal areas?
Yes, pile foundations are highly effective in waterlogged, coastal, or marine areas as they transfer loads to deeper stable layers.
Q10. Can pile foundations fail?
Yes, pile foundations can fail due to poor design, incorrect installation, or deterioration of materials. Proper soil testing, design, and construction practices are essential to avoid failure.
Conclusion
Pile foundation is a crucial deep foundation system that ensures the stability and safety of structures in challenging soil conditions. It is particularly valuable where shallow foundations cannot perform, such as in weak, compressible, or waterlogged soils. By transferring loads to deeper and stronger layers, pile foundations make it possible to construct skyscrapers, bridges, industrial plants, and marine structures with confidence.
Different types of piles—end-bearing, friction, driven, bored, screw, and micropiles—allow engineers to adapt to site-specific requirements. The installation process, although complex and costly, provides long-term benefits such as reduced settlement, resistance to uplift and lateral forces, and improved durability of structures. Compared with other foundation systems, pile foundations offer unmatched strength and versatility, making them the preferred choice for high-load and critical projects.
In practice, success with pile foundations depends on careful soil investigation, proper design, quality-controlled installation, and rigorous testing. While the initial investment may be higher, the enhanced safety, reliability, and service life of structures make pile foundations a wise and often necessary engineering solution.
