A pad foundation is one of the most common and widely used types of shallow foundations in civil engineering. It is specifically designed to support individual columns by spreading the load to the ground in a safe and efficient manner. The simplicity, cost-effectiveness, and versatility of pad foundations make them ideal for a variety of construction projects, including residential buildings, industrial structures, and bridges.
What is a Pad Foundation?
A pad foundation, also known as an isolated footing, is a type of shallow foundation used to distribute the load of a single column or structural member to the soil beneath. The load from the column is transferred evenly across a square, rectangular, or circular concrete pad that rests on the ground. The foundation ensures that the soil bearing pressure remains within permissible limits and prevents excessive settlement.
In simple terms, a pad foundation acts as a structural base that spreads concentrated loads over a wider area to prevent the soil from failing.
Types of Pad Foundation
Pad foundations can be categorized based on their design and structural configuration. The main types include:
1. Isolated Pad Foundation
An isolated pad foundation supports a single column. It is commonly used when columns are spaced at relatively large distances and the loads are moderate. The pad is usually square or rectangular in shape and designed to maintain uniform pressure distribution under the foundation.
2. Combined Pad Foundation
A combined pad foundation supports two or more columns that are closely spaced. It is used when isolated footings would overlap or when loads from adjacent columns interact. The foundation is designed as a single reinforced concrete slab under multiple columns, ensuring uniform load transfer.
3. Eccentric Pad Foundation
An eccentric pad foundation is used when a column is located near a property boundary, and the pad cannot be centered beneath it. The foundation is designed with reinforcement to resist the bending moments caused by the eccentric load.
4. Continuous Pad Foundation
A continuous pad foundation, also called a strip footing, runs continuously under several columns in a row. This type is common in framed structures where the columns are aligned linearly. It helps in reducing differential settlement between adjacent columns.
5. Stepped Pad Foundation
A stepped pad foundation is used on sloping ground or where the bearing capacity varies with depth. The steps help to maintain the required depth and ensure even load transfer across the foundation.
Design Considerations for Pad Foundations
When designing a pad foundation, several factors must be considered to ensure structural stability and safety. These include:
1. Load from the Structure
The foundation must be designed to carry the load from the column, which includes both the dead load (self-weight) and live load (imposed load).
2. Bearing Capacity of Soil
The soil’s safe bearing capacity (SBC) determines the size and thickness of the foundation. A soil test or geotechnical investigation is essential before construction.
3. Settlement Control
Settlement should be uniform across the foundation to avoid structural cracks. Proper design ensures that the settlement is within allowable limits.
4. Shape and Size
The shape (square, rectangular, or circular) depends on the column shape and load distribution. The size is determined by dividing the load by the allowable bearing pressure of the soil.
5. Reinforcement
Reinforcement bars are provided in both directions to resist bending moments and prevent cracking.
6. Depth of Foundation
The foundation depth depends on the soil type, frost line, groundwater level, and load intensity.
Construction Process of Pad Foundation
The construction of a pad foundation involves several key steps to ensure strength and stability:
1. Site Preparation
The construction site is cleared of debris, vegetation, and topsoil. The foundation layout is marked according to the design drawings.
2. Excavation
Excavation is carried out to the required depth, ensuring the bottom of the excavation is level and compacted.
3. Laying of Blinding Concrete
A layer of lean concrete (about 50–100 mm thick) is laid at the base of the excavation to provide a clean and stable surface for reinforcement placement.

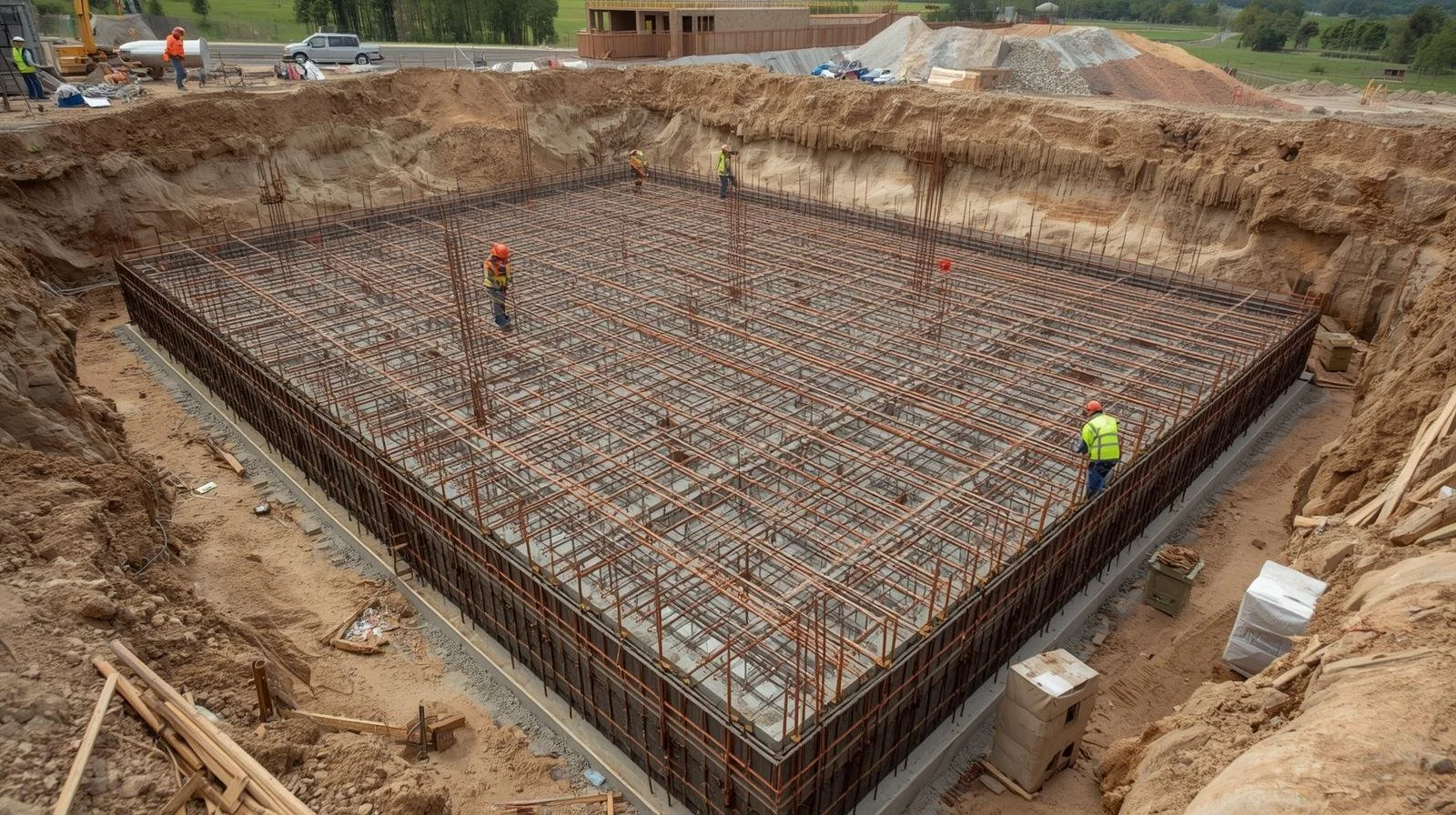

4. Placement of Reinforcement
Reinforcement bars are placed according to design specifications to strengthen the foundation against tension forces.
5. Formwork Installation
Formwork is erected around the foundation area to hold the concrete in place during pouring.
6. Concrete Pouring
Concrete is poured into the formwork and vibrated to eliminate air pockets, ensuring proper compaction and strength.
7. Curing
Curing is essential for the hydration process of cement. The foundation is kept moist for at least 7 days to achieve desired strength.
8. Backfilling
Once the foundation has gained adequate strength, the excavated soil is refilled around the foundation and compacted properly.
Advantages of Pad Foundation
Pad foundations offer several benefits that make them a preferred choice for many construction projects:
- Economical: Simple to design and construct, saving material and labor costs.
- Ease of Construction: Straightforward construction process with minimal equipment required.
- Versatility: Can be used for various types of structures.
- Low Maintenance: Requires little to no maintenance after construction.
- Flexibility in Shape: Can be designed in any shape—square, rectangular, or circular—based on load and space.
Disadvantages of Pad Foundation
Despite its advantages, pad foundations have certain limitations:
- Not suitable for weak or compressible soils.
- Limited to shallow depths and moderate loads.
- May experience differential settlement if soil conditions are uneven.
- Requires precise design to prevent punching shear failure.
Applications of Pad Foundation
Pad foundations are widely used in various construction projects, including:
- Residential Buildings: Support for columns in houses and small apartment complexes.
- Commercial Structures: Used in offices, shopping centers, and small industrial buildings.
- Bridges and Towers: Supports individual piers or columns.
- Warehouses and Workshops: Suitable for light to medium loads.
Comparison Between Pad Foundation and Raft Foundation
| Parameter | Pad Foundation | Raft Foundation |
|---|---|---|
| Load Type | Supports individual columns | Supports entire structure |
| Soil Condition | Suitable for firm soil | Suitable for weak soil |
| Construction Cost | Lower | Higher |
| Settlement | May vary per column | Uniform settlement |
| Design Complexity | Simple | Complex |
| Thickness | Generally thinner | Thicker slab |
Common Problems in Pad Foundations
Even well-designed pad foundations may face issues if not constructed properly. Common problems include:
- Differential Settlement: Caused by variation in soil properties under each footing.
- Punching Shear Failure: Occurs when column load exceeds the concrete’s capacity.
- Cracking: Due to insufficient reinforcement or poor curing.
- Waterlogging: Leads to erosion or loss of bearing capacity.
Proper design, soil testing, and quality control can minimize these issues.
Maintenance of Pad Foundations
Although pad foundations are low-maintenance, certain precautions can enhance their lifespan:
- Regular inspection for cracks or settlement signs.
- Proper drainage to prevent water accumulation.
- Avoiding overloading beyond design capacity.
- Repairing any surface damages immediately.
Conclusion
A pad foundation is a simple yet effective solution for supporting individual columns in structures built on firm soil. Its economical design, easy construction, and wide applicability make it one of the most preferred foundation systems in modern civil engineering. However, it is crucial to conduct a proper soil investigation and follow best construction practices to ensure durability and performance.
