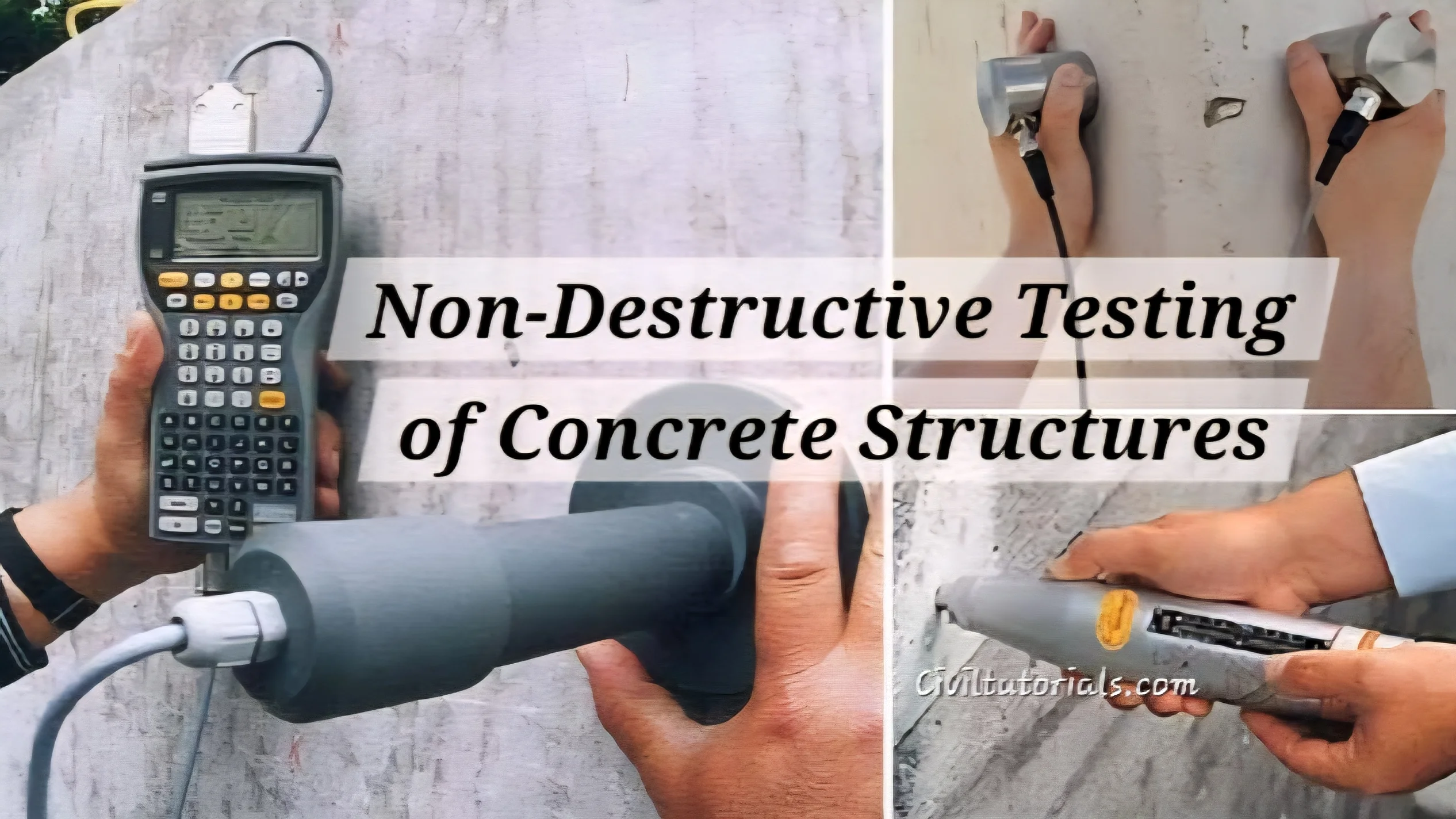

Non-destructive testing methods for concrete structures are essential for evaluating the strength, integrity, and durability of concrete without causing damage. These techniques play a vital role in assessing existing structures, ensuring safety, and guiding maintenance or repair strategies. The use of non-destructive testing methods for concrete structures has grown rapidly due to their reliability and cost-efficiency in modern construction and civil engineering.
We’ll explore various non-destructive testing (NDT) methods used in concrete assessment, their working principles, benefits, applications, and limitations.
What is Non-Destructive Testing in Concrete?
Non-destructive testing in concrete refers to a range of techniques used to evaluate the properties of hardened concrete without altering or damaging the structure. These methods allow engineers to measure compressive strength, locate reinforcement, detect voids or cracks, and monitor the overall condition of the structure.
Why Non-Destructive Testing is Important
Non-destructive testing methods for concrete structures offer significant advantages in real-world scenarios. They help in quality control, structural health monitoring, repair planning, and assessing durability without breaking or extracting any part of the structure.
Key Advantages of NDT in Concrete
- Prevents damage during inspection
- Saves time and cost compared to destructive methods
- Helps in evaluating large areas quickly
- Supports decision-making in retrofitting and maintenance
- Allows frequent testing over time
Common Non-Destructive Testing Methods for Concrete Structures
Several standardized and widely accepted NDT methods are used to test concrete structures. Each method serves specific purposes and is suitable for certain conditions.
Rebound Hammer Test (Schmidt Hammer Test)
This method measures surface hardness as an indicator of compressive strength.
Working Principle
A spring-loaded mass strikes the surface, and the rebound distance is measured. The rebound number correlates to concrete strength.
Applications
- Estimating uniformity of concrete
- Comparing strength between different parts
- Checking quality in precast elements
Limitations
- Only indicates surface strength
- Affected by surface moisture and texture
FAQ
Q: Can the rebound hammer test detect internal defects?
No, it is limited to surface hardness and cannot detect internal cracks or voids.
Ultrasonic Pulse Velocity (UPV) Test
This method checks the quality and integrity of concrete by measuring the velocity of ultrasonic waves.
Working Principle
Ultrasonic waves pass through the concrete, and their travel time is measured. High velocity indicates good quality, while low velocity may suggest cracks or voids.
Applications
- Detecting cracks, honeycombing, and voids
- Estimating elastic modulus
- Checking homogeneity of concrete
Limitations
- Requires proper surface contact
- Not ideal for rough or uneven surfaces
FAQ
Q: What factors affect UPV results?
Moisture content, temperature, and aggregate size can influence wave speed and test accuracy.
Penetration Resistance Test (Windsor Probe)
Used to estimate compressive strength by driving a steel probe into concrete.
Working Principle
A powder-actuated device fires a probe into the concrete surface. The penetration depth correlates with compressive strength.
Applications
- Estimating in-situ strength
- Suitable for hard surfaces
- Used in quality control of structures
Limitations
- Causes minor surface damage
- Requires a smooth, dry surface
FAQ
Q: Is the penetration test suitable for new concrete?
It is better suited for hardened concrete older than 28 days.
Radiographic Testing (X-Ray/Gamma Ray)
Radiographic methods involve passing radiation through concrete to detect internal flaws.
Working Principle
Radiation is absorbed at different rates by concrete, steel, and voids. The resulting image reveals internal inconsistencies.
Applications
- Detecting internal cracks, honeycombs
- Locating rebars and pipes
- Examining thick or dense structures
Limitations
- Expensive and time-consuming
- Requires skilled personnel and safety precautions
FAQ
Q: Can radiographic testing be used on large concrete elements?
Yes, but only with high-energy sources and specialized equipment.
Ground Penetrating Radar (GPR)
GPR uses electromagnetic waves to image subsurface elements in concrete.
Working Principle
Radar signals reflect from materials like rebar or voids, and the reflected waves are recorded to build an image.
Applications
- Locating steel reinforcement, ducts, and cables
- Measuring concrete cover
- Detecting voids and delamination
Limitations
- Limited penetration depth
- Interpretation requires experience
FAQ
Q: Is GPR affected by moisture content?
Yes, high moisture can reduce penetration and clarity of radar signals.
Infrared Thermography
This method detects heat patterns and variations on the concrete surface.
Working Principle
Infrared cameras measure temperature differences, which indicate defects such as delamination, voids, or moisture intrusion.
Applications
- Detecting surface and subsurface defects
- Monitoring moisture movement
- Large-area inspection
Limitations
- Dependent on ambient temperature
- Limited depth detection
FAQ
Q: Can infrared thermography be used at night?
Yes, but it’s more effective during daytime when solar heating reveals thermal differences.
Half-Cell Potential Test
Used to assess the probability of corrosion in reinforced concrete.
Working Principle
Measures electrical potential difference between embedded steel and a reference electrode on the concrete surface.
Applications
- Identifying corrosion-prone areas
- Assessing durability of reinforcement
- Useful in bridge decks, parking garages
Limitations
- Only estimates corrosion probability
- Influenced by moisture and surface conditions
FAQ
Q: Does a high potential mean active corrosion?
It indicates a high risk, but further testing is needed to confirm actual corrosion.
Magnetic and Electromagnetic Methods
These methods locate reinforcement bars and measure their depth.
Working Principle
Magnetic or inductive fields detect metallic objects and their depth from the surface.
Applications
- Locating rebars in slabs and beams
- Estimating bar diameter and spacing
- Non-contact measurement
Limitations
- Less effective on dense reinforcement
- Interference from nearby metal
FAQ
Q: Can these methods detect corrosion in steel bars?
No, they only locate bars, not assess their condition.
Comparison Table of NDT Methods for Concrete
| Method | Main Use | Surface or Internal | Accuracy | Damage-Free | Cost |
|---|---|---|---|---|---|
| Rebound Hammer | Surface strength | Surface | Moderate | Yes | Low |
| UPV | Internal quality, defects | Internal | High | Yes | Medium |
| Windsor Probe | Compressive strength | Surface | Good | Slight mark | Medium |
| Radiographic | Internal flaws, rebar check | Internal | High | Yes | High |
| GPR | Rebar/void location | Subsurface | High | Yes | High |
| Infrared Thermography | Moisture, delamination | Surface/Subsurface | Moderate | Yes | Medium |
| Half-Cell Potential | Corrosion assessment | Reinforcement Zone | Moderate | Yes | Low |
| Magnetic Detection | Locate rebars | Subsurface | Moderate | Yes | Low |
Applications of Non-Destructive Testing in Construction
The use of non-destructive testing methods for concrete structures is widespread in various types of infrastructure projects.
Common Application Areas
- Bridges and flyovers
- High-rise buildings
- Dams and power plants
- Tunnels and subways
- Pavements and runways
- Industrial floors
In Maintenance and Rehabilitation
NDT methods are crucial during condition assessment before repair or strengthening. They help in identifying structural weaknesses and planning effective restoration.
During Construction
Contractors use NDT to verify material quality, curing process, and structural consistency without waiting for destructive core testing.
Challenges and Limitations of NDT Methods
While non-destructive testing offers numerous advantages, it also comes with certain challenges.
Common Issues
- Need for skilled technicians
- Interpretation of results can vary
- Some methods are sensitive to surface conditions
- High-end equipment can be costly
Despite these, NDT remains a cornerstone of modern structural engineering.
Future of Non-Destructive Testing for Concrete
With advancements in AI, digital imaging, and wireless sensors, the future of NDT in concrete structures looks promising. Real-time monitoring, data analytics, and integration with BIM (Building Information Modeling) systems are set to revolutionize testing procedures.
Emerging Trends
- Use of drones for thermal imaging
- Wireless corrosion sensors
- AI-based defect interpretation
- Integration with cloud-based platforms
FAQs on Non-Destructive Testing for Concrete Structures
Q: Which NDT method is best for locating rebars?
Ground Penetrating Radar and magnetic locators are best for locating rebars.
Q: Can NDT replace destructive testing completely?
No, NDT complements destructive methods. In some critical projects, both are used for accuracy.
Q: How often should NDT be performed on structures?
It depends on structure type, environment, and age. Critical structures may need yearly assessment.
Q: Is it possible to use more than one NDT method on a project?
Yes, combining methods often gives a more comprehensive understanding of the structure’s condition.
Conclusion
Non-destructive testing methods for concrete structures have become indispensable tools in civil engineering. They provide reliable, efficient, and economical solutions for evaluating concrete without causing harm. From construction quality checks to rehabilitation planning, NDT ensures safety and durability of structures for years to come.
