A mat foundation is a crucial structural element in civil engineering that provides support for large, heavy buildings or structures by spreading the load over a wide area. It is also known as a raft foundation and is used when soil conditions are weak or when loads from columns and walls are heavy. Understanding what a mat foundation is, its types, uses, and benefits is essential for engineers involved in foundation testing, infrastructure design, and road construction projects.
Mat foundations play a significant role in distributing the load-bearing capacity of a structure evenly to prevent uneven settlement and failure. This article will explore the key aspects of mat foundations, including their types, construction methods, practical uses, and advantages in various civil engineering projects, especially in geotechnical engineering and soil testing methods.

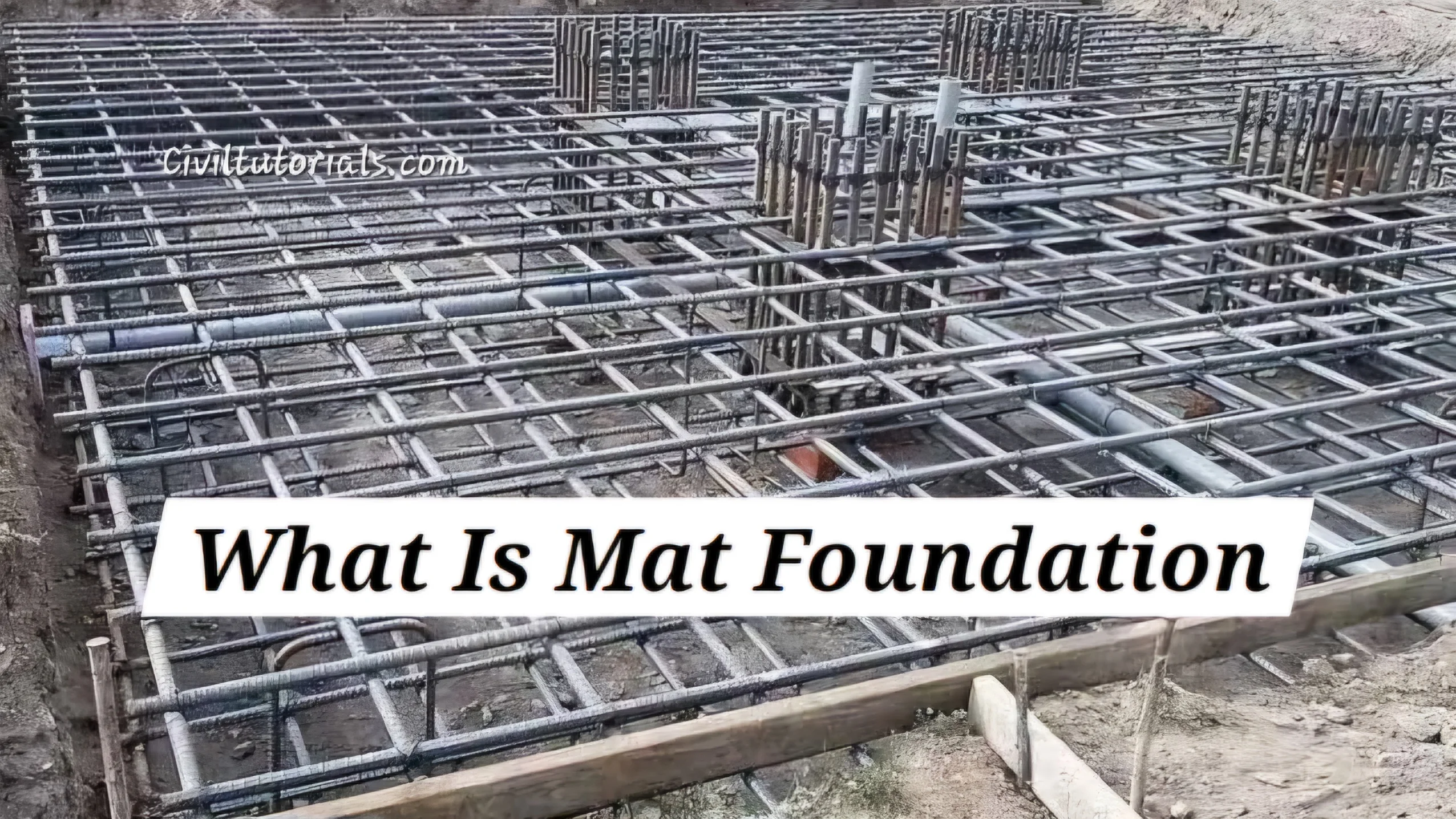

What Is a Mat Foundation?
A mat foundation is a large concrete slab that extends over a wide area, supporting multiple columns and walls. Unlike isolated footings, which support individual columns, a mat foundation acts as a single unit, reducing differential settlement and increasing stability. It is particularly useful for structures built on weak or compressible soils where conventional foundations might fail.
Mat foundations are widely used in projects requiring a solid base, including highway engineering, industrial buildings, and bridges. The design and construction depend on careful subgrade evaluation and soil compaction to ensure the foundation can safely carry the imposed loads.
Types of Mat Foundation
There are several types of mat foundations used in civil engineering, each suited for different soil and structural conditions. The main types include:
1. Flat Plate Mat Foundation
This is a simple reinforced concrete slab that spreads the load across a large area. It is usually used when loads are relatively light and soil conditions are uniform.
2. Beam and Slab Mat Foundation
This type has beams integrated within the slab to increase stiffness. It is suitable for areas where soil strength varies, providing extra support along critical points.
3. Cellular or Waffle Mat Foundation
It consists of a grid of beams forming cells or boxes beneath the slab. This design reduces concrete volume while maintaining strength, ideal for very heavy loads or poor soil conditions.
4. Combined Footing (Mat)
Used when two or more columns are close, and individual footings would overlap. This foundation supports multiple columns in a single slab.
Uses of Mat Foundation
Mat foundations are widely used across different types of construction projects due to their versatility and load distribution capabilities. Key uses include:
- Supporting heavy structures like high-rise buildings, industrial warehouses, and factories.
- Providing stable foundations for structures on soft or weak soil where traditional isolated footings are inadequate.
- Used in bridge construction where large loads from piers require uniform load distribution.
- Ideal for construction site testing where soil conditions vary significantly, ensuring the entire structure remains stable.
- Used in geotechnical engineering projects to evaluate soil-structure interaction effectively.
- Suitable for projects requiring a large foundation footprint due to heavy load-bearing capacity demands.
- Plays an essential role in pavement design where subgrade strength varies, and uniform support is critical.
Benefits of Mat Foundation
Mat foundations offer several advantages that make them a popular choice in modern civil engineering:
- Uniform Load Distribution: Spreads structural loads evenly across a wide area, reducing the risk of differential settlement.
- Cost-Effective for Weak Soils: Reduces the need for deep foundations in soils with low bearing capacity.
- Increased Stability: Provides a rigid base that supports heavy structural loads, essential for multi-story buildings.
- Simplified Construction: Often faster and simpler to construct than multiple isolated footings.
- Reduces Structural Movement: Limits the possibility of cracks and structural damage by minimizing uneven settlement.
- Versatile Design Options: Can be adapted to various soil and load conditions using flat, beam-and-slab, or cellular designs.
Mat Foundation Construction Process
Constructing a mat foundation requires careful planning and soil preparation to ensure durability and performance. The main steps include:
- Site Excavation and Soil Testing: Perform detailed soil strength tests and subgrade evaluation to understand load-bearing capacity and soil behavior.
- Soil Compaction: Compact the soil thoroughly to reduce settlement and increase stability.
- Formwork and Reinforcement: Set up formwork and place steel reinforcement bars based on design requirements to handle tensile stresses.
- Concrete Pouring: Pour high-quality concrete uniformly to avoid weak spots.
- Curing: Allow proper curing time to achieve maximum strength before loading the foundation.
Important Considerations in Mat Foundation Design
- Soil properties such as moisture content, density, and shear strength must be evaluated using proper soil testing methods.
- The thickness of the mat foundation should be adequate to resist bending moments and shear forces.
- Reinforcement must be designed to handle the stresses from the superstructure and soil pressure.
- Groundwater conditions should be checked as high water tables can affect concrete curing and foundation stability.
- Site-specific factors such as seismic activity or frost depth should influence foundation design choices.
Frequently Asked Questions (FAQs) About Mat Foundation
What is the difference between a mat foundation and a raft foundation?
They are essentially the same; “mat foundation” and “raft foundation” are terms used interchangeably to describe a large slab supporting multiple columns.
When is a mat foundation preferred over isolated footings?
Mat foundations are preferred when the soil has low bearing capacity, or column loads are heavy, making isolated footings inefficient or risky.
How does soil compaction affect mat foundation performance?
Proper soil compaction increases the soil’s load-bearing capacity and reduces settlement, directly impacting the foundation’s durability and stability.
Can mat foundations be used for bridges and highways?
Yes, mat foundations are used in highway engineering and bridge piers where heavy loads require uniform support.
Is mat foundation suitable for all soil types?
Mat foundations are ideal for weak or compressible soils but may not be cost-effective for very strong soils where isolated footings suffice.
Conclusion
Understanding mat foundation design, types, uses, and benefits is fundamental in civil engineering projects involving heavy loads and challenging soil conditions. Mat foundations provide a reliable, cost-effective solution for spreading loads uniformly and ensuring structural stability. Incorporating proper soil testing methods, foundation testing, and geotechnical engineering principles during design and construction maximizes the foundation’s performance and longevity. Whether for buildings, bridges, or infrastructure, mat foundations remain a key tool in modern road construction and civil engineering.
