The masonry mortar mix ratio plays a crucial role in determining the strength, durability, and bonding quality of brick or block masonry. Whether you’re working on a residential wall, a commercial structure, or a restoration project, understanding mortar proportions is essential for achieving long-lasting and stable masonry work. This guide explains types of mortar, mix ratios, properties, and selection criteria in simple, professional terms for engineers, masons, and builders.
What is Masonry Mortar?

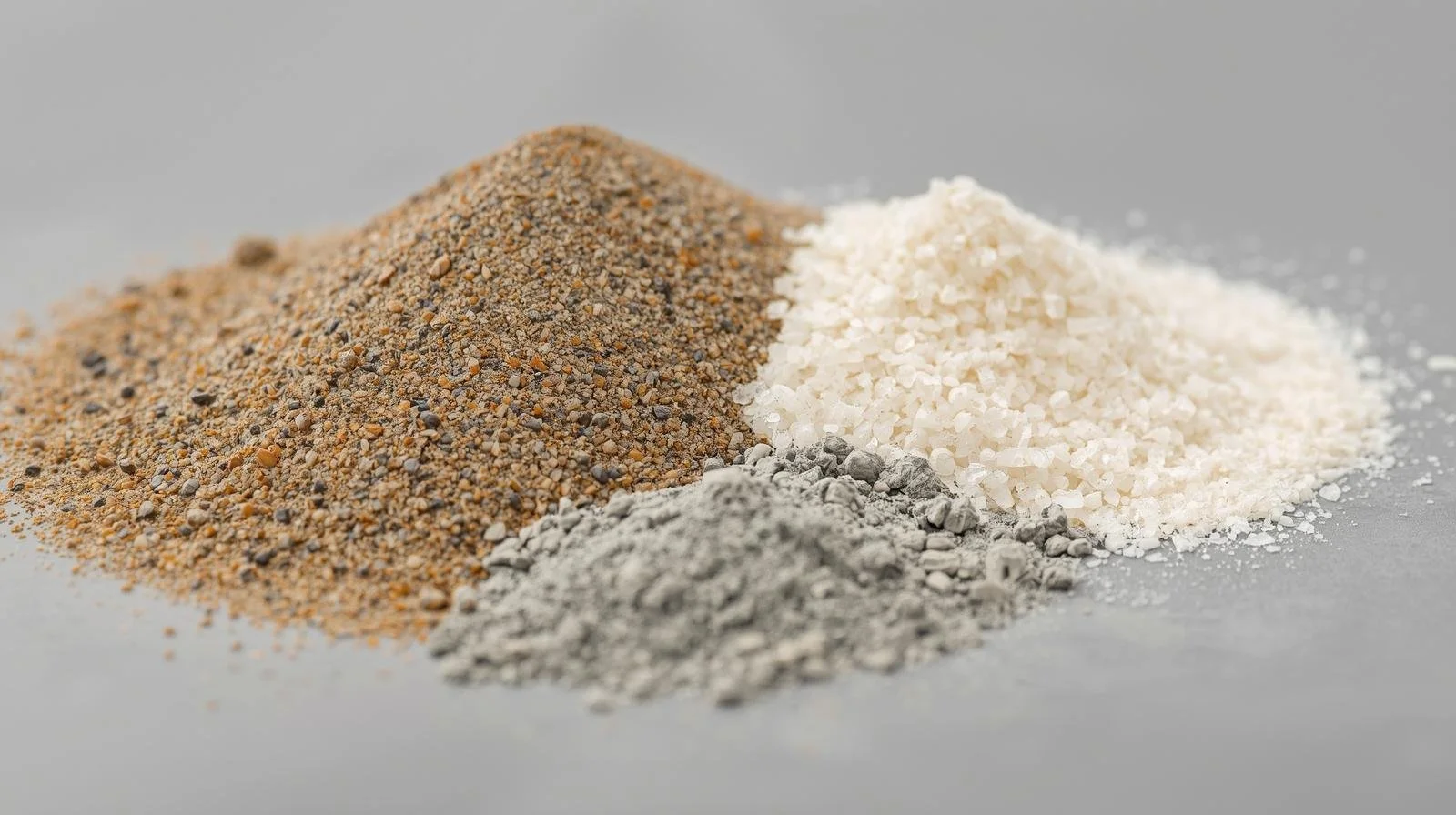

Masonry mortar is a workable paste composed of cement, sand, water, and sometimes lime or additives, used to bond masonry units such as bricks, stones, or concrete blocks. It fills gaps between the units and provides uniform load transfer, weather resistance, and an aesthetic finish.
In simple terms, mortar acts as the glue that holds masonry together, ensuring both structural integrity and water resistance. The quality and ratio of mortar directly influence the strength, flexibility, and lifespan of masonry walls.
Importance of Proper Mortar Mix Ratio
The correct masonry mortar mix ratio determines:
- The bond strength between bricks or blocks.
- The compressive strength of the wall.
- Workability, making it easy to spread and apply.
- Durability and resistance against weathering.
- Shrinkage control and prevention of cracks.
If the mix is too strong (too much cement), it can cause cracking. If it’s too weak (too much sand or lime), the wall may lose strength and stability. Therefore, a balanced mix ratio is vital.
Standard Masonry Mortar Mix Ratios
Mortar mixes are classified into various types based on proportions and performance characteristics. The American Standard (ASTM C270) defines mortar types as Type M, S, N, O, and K — each having a specific mix ratio and purpose.
Masonry Mortar Mix Ratio Table
| Mortar Type | Mix Ratio (Cement : Lime : Sand) | Compressive Strength (psi) | Typical Use |
|---|---|---|---|
| Type M | 1 : 0.25 : 3 | 2500 psi | Foundations, retaining walls, driveways |
| Type S | 1 : 0.5 : 4.5 | 1800 psi | Exterior walls, below-grade work, pavements |
| Type N | 1 : 1 : 6 | 750 psi | General brickwork, above-grade walls |
| Type O | 1 : 2 : 9 | 350 psi | Interior non-load-bearing walls, repair works |
| Type K | 1 : 3 : 10 | 75 psi | Historical restorations, soft brick masonry |
Understanding Each Type of Masonry Mortar
Type M Mortar
Type M mortar has the highest compressive strength (2500 psi) and is ideal for heavy load-bearing structures such as retaining walls, foundations, and driveways.
- Best for high-stress applications.
- Less workable, requires experienced handling.
- Suitable for stone masonry or hard brick.
Type S Mortar
Type S mortar offers a balance between strength and flexibility. It is widely used in exterior walls, pavements, and below-grade applications.
- Moderate strength (~1800 psi).
- Excellent weather and water resistance.
- Ideal for areas subject to soil pressure and wind.
Type N Mortar
Type N mortar is the most commonly used mortar in general masonry. With a medium strength (750 psi), it’s suitable for above-ground brickwork exposed to normal weather conditions.
- Good balance between strength and workability.
- Common in residential homes, chimneys, and garden walls.
- Recommended for load-bearing brick walls in moderate climates.
Type O Mortar
Type O mortar has a low compressive strength (350 psi) and is used for non-load-bearing interior walls or restoration work.
- Highly workable and easy to spread.
- Ideal for repairing older masonry without damaging existing materials.
Type K Mortar
Type K mortar is the weakest mix, mainly used in historic masonry restoration where the bricks or stones are very soft.
- Compressive strength ~75 psi.
- Ensures old masonry materials are not stressed by strong mortar.
Common Mortar Mix Ratios for Field Applications
For most construction projects, masons use simplified cement-to-sand ratios without lime addition. Some of the most common field mortar mix ratios are:
| Application | Cement : Sand Ratio |
|---|---|
| Brick masonry (general) | 1 : 4 to 1 : 6 |
| Stone masonry | 1 : 3 to 1 : 4 |
| Block masonry | 1 : 5 to 1 : 6 |
| Plastering works | 1 : 5 to 1 : 6 |
| Pointing works | 1 : 2 or 1 : 3 |
These ratios may vary depending on the type of cement, sand fineness, and environmental conditions.
How to Mix Masonry Mortar Properly
Step 1: Measure Ingredients Accurately
Use the correct mixing ratio based on the required mortar type. Ensure materials are measured by volume, not weight, for consistency.
Step 2: Mix Dry Components
Combine cement, lime, and sand thoroughly before adding water. Uniform mixing prevents weak zones and ensures strength consistency.
Step 3: Add Water Gradually
Add clean water slowly while mixing until the mortar achieves a plastic, workable consistency. Avoid excess water as it reduces strength and causes shrinkage.
Step 4: Check Workability
The mortar should adhere to the trowel but still spread easily. Adjust the water slightly if it’s too dry or too wet.
Step 5: Use Within 2 Hours
Mortar should be used within 2 hours of mixing. Do not retemper by adding more water after it begins to set.
Properties of a Good Masonry Mortar
A high-quality masonry mortar must possess the following properties:
- Workability: Easy to spread and handle.
- Adhesion: Strong bond with masonry units.
- Water Retention: Retains moisture for adequate curing.
- Cohesion: Should not segregate or bleed water.
- Durability: Resistant to weathering and chemical attack.
Factors Affecting Masonry Mortar Strength
- Cement quality and type (Ordinary Portland Cement or Masonry Cement).
- Sand grading and cleanliness – impurities reduce strength.
- Water-cement ratio – excess water weakens the mix.
- Mixing time – poor mixing leads to uneven strength.
- Curing conditions – proper moisture retention is essential.
- Ambient temperature – affects setting time and bonding.
Choosing the Right Mortar Type
Choosing the correct masonry mortar mix ratio depends on:
- Load-bearing requirements
- Environmental exposure
- Type of masonry unit (brick, block, stone)
- Aesthetic and historical considerations
For example:
- Use Type M for strong stone walls or foundations.
- Use Type N for typical residential construction.
- Use Type O or K for old masonry restoration.
Tips for Better Masonry Mortar Performance
- Always use clean sand and water.
- Mix only as much mortar as can be used within 2 hours.
- Keep bricks or blocks slightly damp before application to prevent rapid water absorption.
- Cure the masonry properly for at least 7 days for optimum strength.
- Never mix old, dried mortar with fresh batches.
Conclusion
The masonry mortar mix ratio determines the quality and longevity of brick and block structures. From high-strength Type M to soft Type K, each mix serves a specific purpose. Selecting the right ratio and following correct mixing and curing procedures ensures that your masonry is strong, durable, and aesthetically perfect. Whether you’re constructing new walls or restoring old ones, understanding mortar proportions is the foundation of lasting masonry excellence.
