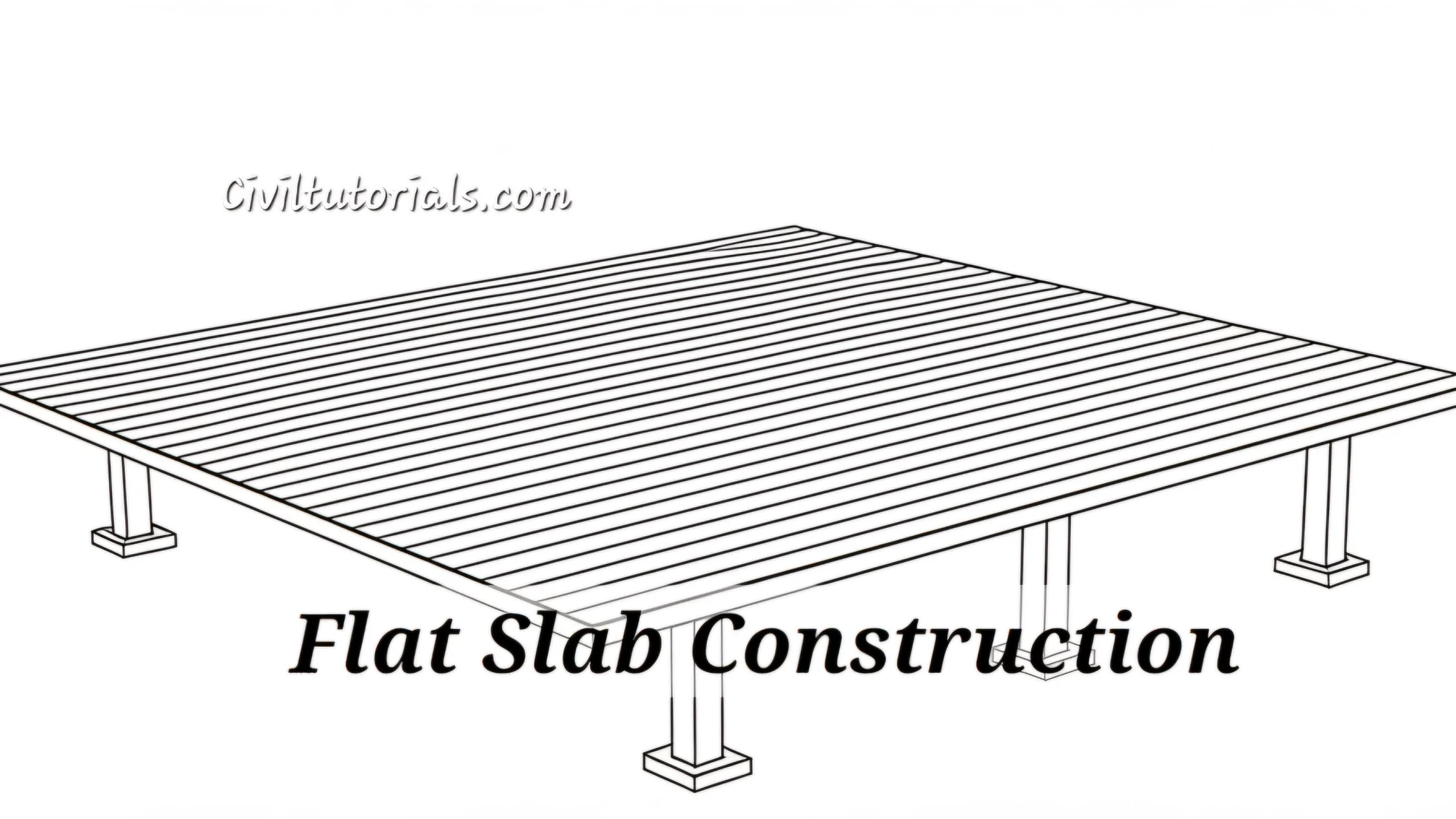

Flat slab construction eliminates beams to create sleek, flexible spaces perfect for offices, hospitals, and parking structures. This innovative concrete system speeds up construction while reducing floor-to-floor heights. Let’s examine how flat slabs work, their reinforcement methods, and why they’re revolutionizing modern architecture.
What Makes Flat Slabs Unique?
Unlike conventional slabs, flat slabs transfer loads directly to columns through four key features:
- No beams – Cleaner ceilings and simpler formwork
- Drop panels – Thickened concrete around columns
- Column capitals – Flared column tops for stress distribution
- Shear reinforcement – Bolsters punching shear resistance
Advantages Over Traditional Systems
✔ Faster construction (30% time savings)
✔ Lower floor heights (saves 10-15cm per level)
✔ Flexible layouts (easier partition changes)
✔ Better MEP integration (ducts/pipes embed directly)
Critical Design Considerations
1. Load Distribution
- Live loads: 3-5 kN/m² for offices → 7.5+ kN/m² for hospitals
- Dead loads: Typically 5-7 kN/m² including finishes
- Punching shear: The #1 failure mode to prevent
2. Thickness Guidelines
| Span | Minimum Thickness | Drop Panel Thickness |
|---|---|---|
| 5m | 200mm | 250mm |
| 7m | 250mm | 300mm |
| 9m | 300mm | 350mm |
3. Reinforcement Strategies
- Two-way steel mesh (standard)
- Shear heads at columns (for heavy loads)
- Post-tensioning (longer spans, less cracking)
Step-by-Step Construction Process
- Formwork Installation (uses plastic void forms)
- Rebar Placement (bending critical at column zones)
- Concrete Pouring (must be continuous)
- Curing (7-14 days minimum)
- Stripping Forms (after reaching 70% strength)
Flat Slab vs Conventional Systems
| Factor | Flat Slab | Beam-Supported Slab |
|---|---|---|
| Construction Time | 25 days/floor | 35 days/floor |
| Material Cost | $$$ (more concrete) | $$ |
| Ceiling Height | Maximized | Reduced by beams |
| Vibration Control | Requires dampers | Naturally better |
Common Mistakes & Solutions
❌ Inadequate drop panels → Increase thickness by 25%
❌ Poor column alignment → Use laser-guided layout
❌ Early form removal → Monitor concrete strength
FAQs About Flat Slabs
Q: Why don’t flat slabs need beams?
A: The slab’s two-way reinforcement and drop panels distribute loads directly to columns.
Q: What’s the maximum span for flat slabs?
A: Typically 9m (up to 12m with post-tensioning).
Q: Are flat slabs earthquake-resistant?
A: They require special shear walls or moment frames in seismic zones.
Q: How do you prevent cracks at columns?
A: Properly designed drop panels + shear reinforcement are critical.
Innovations in Flat Slab Tech
- 3D-printed formwork for complex geometries
- Self-healing concrete microcapsules
- IoT-embedded sensors for real-time deflection monitoring
Key Takeaways
- Ideal for open-plan buildings needing flexibility
- Requires meticulous punching shear design
- Post-tensioning extends span capabilities
- Not suitable for heavy industrial loads
