PQC full form in road construction is Pavement Quality Concrete. It is the high-strength, low-slump cement concrete slab used as the main structural and wearing layer of rigid (concrete) pavements on highways, expressways, city roads, industrial yards and airport pavements. Unlike a bituminous surface, which flexes under traffic, a PQC slab behaves like a stiff concrete plate: it spreads wheel loads over a wide area of the layers below and resists bending mainly through its flexural strength.
In India, PQC is designed and built as per IRC:58 (design of plain jointed rigid pavements), IRC:15 (construction of concrete roads) and MoRTH Specifications for Road and Bridge Works, Section 600. This guide explains what PQC is, its layers, typical specifications, materials, types, joints, construction steps, quality checks, common defects and how it compares with bituminous pavement.
Note: values given below are typical figures used in Indian highway practice. The approved design, project specification and the latest IRC/MoRTH revision always govern.
What is PQC (Pavement Quality Concrete)?
Pavement Quality Concrete (PQC) is a specially designed, dense, low-water-cement-ratio concrete used to construct the surface slab of rigid pavements. It is made with controlled materials, a tested mix design, and placed using a slip-form or fixed-form paving method, with carefully planned joints to control cracking.
PQC is not just ordinary structural concrete laid on a road. It is designed for repeated bending stresses from wheel loads, temperature curling, shrinkage, abrasion from tyres and exposure to weather. Its performance depends on the mix design, slab thickness, joint layout, base support and quality of construction together.

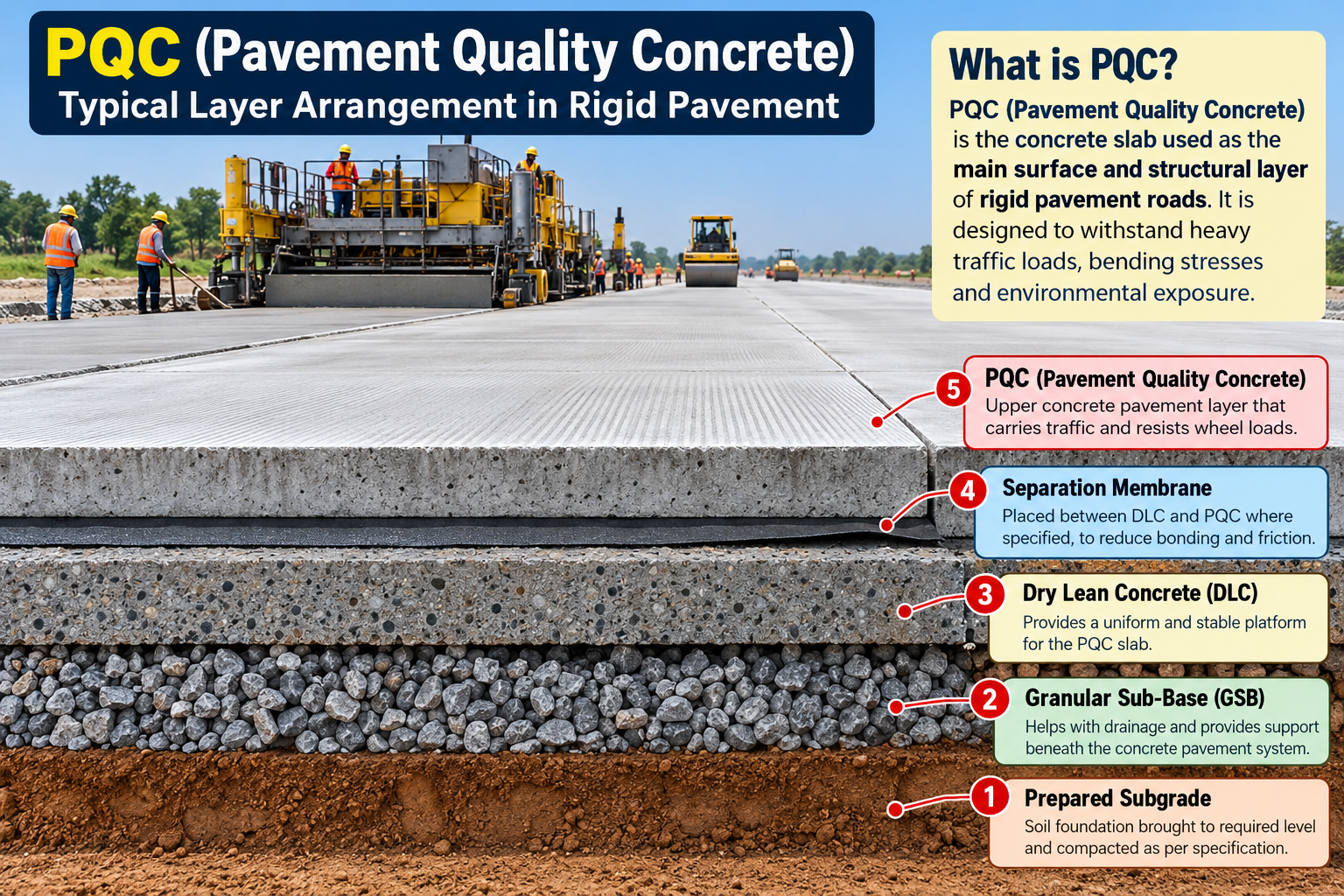

Layers of a Rigid Pavement System
A typical concrete pavement is built from top to bottom as follows. Exact thicknesses come from the approved IRC:58 design.
| Layer | Purpose | Typical Note |
|---|---|---|
| PQC slab | Main structural and wearing layer | Commonly about 250 to 350 mm on highways, design based |
| Separation membrane | Reduces friction and bonding between PQC and DLC | Polythene sheet, commonly 125 micron |
| Dry Lean Concrete (DLC) | Strong, uniform, erosion-resistant sub-base platform | Commonly about 150 mm, design based |
| Granular Sub-Base (GSB) | Drainage and uniform support | Thickness per design |
| Subgrade | Compacted natural soil foundation | Compacted to specified density and CBR |
Why PQC Is Designed on Flexural Strength
When a wheel load acts on a concrete slab, the slab bends. The critical stress is tension at the bottom of the slab, and concrete is much weaker in tension than in compression. For this reason, PQC is controlled mainly by flexural strength (modulus of rupture), tested on concrete beams, and not only by cube compressive strength.
In Indian highway practice, PQC is commonly specified with a minimum 28-day flexural strength of 4.5 MPa, which generally corresponds to roughly M40 grade concrete. Compressive strength tests are still done as supporting checks, but the flexural result is the key design and acceptance parameter.
PQC Specifications (Quick Reference)
| Parameter | Typical Requirement |
|---|---|
| 28-day flexural strength | Minimum 4.5 MPa |
| Concrete grade (compressive) | Commonly M40, as per project design |
| Nominal maximum aggregate size | 31.5 mm (as per IS 383) |
| Maximum water-cement ratio | 0.45 |
| Cementitious content | Minimum and maximum limits set in IRC:15 / MoRTH (the minimum is higher than ordinary structural concrete, and the maximum limits shrinkage) |
| Workability (slump) | Low slump. Roughly 25 ± 10 mm for slip-form and 30 ± 15 mm for fixed-form paving |
| Fresh concrete temperature | Limited in hot weather (commonly about 30 °C at placing) |
| Curing | Curing compound plus wet curing, minimum about 14 days |
| Joint spacing (contraction) | Commonly up to about 4.5 m, as per design |
| Design life | Typically 30 years in IRC:58 design |
Always confirm exact limits from the current IRC:15, IRC:58, MoRTH Section 600 and your contract documents.
Materials Used in PQC
Cement
- Ordinary Portland Cement (43 or 53 grade) as per IS 269.
- Portland Pozzolana Cement (PPC) as per IS 1489 (Part 1).
- Portland Slag Cement (PSC) as per IS 455.
- Fly ash (IS 3812) or GGBS (IS 16714) as partial cement replacement where the specification allows, to improve durability and reduce heat of hydration.
Coarse aggregate
Hard, clean, durable crushed aggregate, well graded as per IS 383, with nominal maximum size of 31.5 mm. It is tested for abrasion and impact value, flakiness and elongation, soundness and water absorption (IS 2386 and MoRTH limits). Poor aggregate shape and grading directly affect strength and finish.
Fine aggregate
Natural river sand or good-quality manufactured sand, free from clay, silt, organic matter and excess fines, conforming to IS 383 and the project specification.
Water
Clean water as per IS 456, free from oils, acids, alkalis, sugar and organic impurities.
Admixtures
Water-reducing and plasticizing admixtures, retarders and, where specified, air-entraining admixtures conforming to IS 9103. Chloride content is checked using the test method in IS 6925. Admixtures must be proven compatible with the chosen cement during mix design.
Joint steel
- Dowel bars: smooth round bars at transverse joints for load transfer. Diameter is chosen from design (commonly in the 25 to 38 mm range), length about 450 mm and spacing about 300 mm centre to centre.
- Tie bars: deformed bars (IS 1786) at longitudinal joints to hold adjacent lanes together, with size and length as per design.
Types of Concrete Pavements Using PQC
In Indian practice, PQC pavements are classified by how joints and reinforcement are used, and by the paving method.
1. Jointed Plain Concrete Pavement (JPCP)
The most common type in India. There is no distributed steel in the slab. Cracking is controlled by regularly spaced contraction joints, with dowel bars at transverse joints and tie bars at longitudinal joints. It is used on national highways, expressways, city roads and rural concrete roads, and is the type covered by IRC:58.
2. Jointed Reinforced Concrete Pavement (JRCP)
Uses longer slabs with steel mesh or bars to hold intermediate cracks tightly closed. It is less common in India than JPCP.
3. Continuously Reinforced Concrete Pavement (CRCP)
Has continuous longitudinal reinforcement and no transverse contraction joints. Fine, tightly held cracks form naturally. It suits very heavy traffic and gives a smooth ride, but initial cost is higher.
By construction method
- Slip-form paving: a slip-form paver spreads, compacts, screeds and shapes the slab in one continuous operation without fixed side forms. Preferred for highways and long stretches for speed and quality.
- Fixed-form paving: concrete is placed between rigid side forms and compacted using vibrating screeds or beams. Used for short lengths, junctions, curves and areas where a paver cannot work.
Joints in PQC Pavement
Concrete shrinks as it dries and expands or contracts with temperature. Joints give controlled places for this movement so the slab does not crack randomly.
| Joint | Direction | Function |
|---|---|---|
| Contraction joint | Transverse | Creates a weakened plane so shrinkage cracks form in a straight line. Dowel bars are provided for load transfer. |
| Longitudinal joint | Along the road, between lanes | Controls longitudinal cracking and warping. Held with tie bars. |
| Expansion joint | Transverse | Allows slab expansion at bridges, structures and some intersections. Uses dowels and compressible filler. |
| Construction joint | Transverse | Provided where paving stops at the end of a day or breakdown. |
Joint sealing: After sawing, joints are cleaned and sealed using a sealant with a backer rod. A sound seal keeps water and debris out, which protects the base and prevents spalling and pumping.
PQC Construction Process (Step by Step)
- Prepare the DLC sub-base: Complete DLC to specified levels, finish and cure it, and confirm surface tolerance before paving.
- Lay the separation membrane: Spread polythene sheet flat, with overlaps, free of wrinkles.
- Set line and level: Fix stringlines for the slip-form paver or set and check the side forms.
- Fix dowel and tie bars: Position dowel baskets and bars accurately, aligned parallel to the road and slab surface.
- Batching and mixing: Produce concrete in a computer-controlled batching plant with accurate weighing, moisture correction and consistent slump.
- Transport: Carry the mix in covered tippers or transit mixers, within the permitted time to avoid stiffening.
- Place, compact and finish: The paver spreads, vibrates and shapes the slab. Fixed-form work uses vibrating beams and screeds. Compaction must be uniform, especially near joints and edges.
- Texture the surface: Apply transverse tining or burlap drag to give skid resistance.
- Apply curing compound: Spray immediately after finishing, before moisture escapes.
- Saw and seal joints: Cut contraction joints as soon as the concrete can be cut without ravelling (usually within the first several hours, depending on weather and mix), then clean and seal.
Curing and Opening to Traffic
Good curing is what turns a well-placed slab into a durable one. A curing compound is sprayed right after finishing, followed by wet curing with wet hessian, sand or ponding for the specified period (commonly at least 14 days). Poor curing leads to plastic shrinkage cracks, weak surface and early distress.
Traffic is opened only after the slab reaches the specified strength, joints are sawn and sealed as required, and the engineer approves. Early loading can damage a young slab permanently.
Quality Control and Testing
| Check | Method / Note |
|---|---|
| Material tests | Cement, aggregate and water tests before and during use |
| Slump | At batching plant and at site (slump test) |
| Flexural strength | Beams (150 × 150 × 700 mm) tested at 7 and 28 days as per IS 516 |
| Compressive strength | 150 mm cubes at 7 and 28 days as supporting check |
| Thickness | Level survey and cores, against design thickness |
| Surface regularity | 3 m straightedge and roughness measurement as per specification |
| Dowel and tie bar position | Alignment and level checks before paving |
| Temperature | Fresh concrete and ambient temperature in hot weather |
Keep proper records of tests, pour logs and inspection sign-offs as required by the project quality plan.
Common PQC Defects and How to Prevent Them
| Defect | Common Cause | Prevention |
|---|---|---|
| Plastic shrinkage cracks | Rapid evaporation in wind, heat or low humidity | Timely curing compound, wind breaks, evaporation control |
| Random (uncontrolled) cracking | Late joint sawing, poor base support, excess cement | Saw joints on time, proper DLC, controlled mix |
| Faulting at joints | Poor load transfer, misaligned dowels, water entry | Accurate dowel placement, sealed joints, good drainage |
| Spalling at joints | Weak edges, poor compaction, joint damage | Proper compaction at edges, careful sawing, sealing |
| Pumping | Water and fines escaping from the base under traffic | Erosion-resistant DLC, drainage, joint sealing |
| Scaling or surface wear | Over-finishing, poor curing, weak surface mortar | Proper finishing and curing, good mix design |
| Poor ride quality | Uneven base, paver instability, inconsistent mix | Accurate stringlines, steady paver speed, uniform slump |
PQC vs DLC
| Point | PQC | DLC |
|---|---|---|
| Full form | Pavement Quality Concrete | Dry Lean Concrete |
| Function | Traffic-bearing structural and wearing slab | Supporting sub-base under the slab |
| Position | Top layer | Directly below PQC (with separation membrane in between) |
| Strength | High, designed on flexural strength | Much lower, lean mix |
| Cement content | High | Low |
| Surface | Textured for skid resistance | Finished as a level platform only |
The two are not interchangeable. Each layer must meet its own specification.
PQC (Rigid) vs Bituminous (Flexible) Pavement
| Point | PQC (Rigid) | Bituminous (Flexible) |
|---|---|---|
| Load behaviour | Slab action, spreads load over a wide area | Layer-by-layer load spreading |
| Design life | Long (often 30 years or more) | Shorter, needs periodic resurfacing |
| Initial cost | Usually higher | Usually lower |
| Maintenance | Low, mainly joints and sealants | More frequent (patching, resurfacing) |
| Water-logged and hot areas | Performs better | Can soften or strip |
| Repair | Slower, slab or panel replacement | Faster patching |
| Opening to traffic | After curing and strength gain | Faster |
Related reading: BC in road construction and types of roads and their uses.
Uses of PQC
- National highways and expressways built as concrete roads
- City roads, bus corridors, junctions and heavy-traffic stretches
- Industrial roads, port areas, container terminals and logistics yards
- Airport runways, taxiways and aprons (designed under airfield pavement guidelines, using the same concrete-slab principle)
- Rural concrete roads under village road programmes
Advantages and Limitations of PQC
Advantages
- Long service life and strong performance under heavy loads
- Low routine maintenance compared with bituminous roads
- Better performance in waterlogged areas and high temperatures
- No rutting under slow, heavy traffic
- Lighter surface colour improves night visibility
- Fly ash and slag can partly replace cement, helping reduce clinker demand
Limitations
- Higher initial construction cost
- Needs skilled supervision and strict quality control
- Joints need regular inspection and resealing
- Repairs are slower than bituminous patching
- Traffic can be opened only after adequate curing and strength gain
- Poor execution can still cause cracking, faulting and spalling
Conclusion
Pavement Quality Concrete is the structural top layer of concrete roads. It is designed mainly for flexural strength, supported by a uniform DLC base, divided by properly designed joints, and made durable by correct paving and curing. The mix is only one part of the story: base support, joint layout, dowel alignment, finishing and curing decide how long a concrete road actually lasts. Following IRC:15, IRC:58 and MoRTH Section 600 closely is the surest way to get a durable pavement.
Frequently Asked Questions (FAQs)
1. What is the full form of PQC in road construction?
PQC stands for Pavement Quality Concrete. It is the high-strength concrete slab used as the main surface and structural layer of rigid pavements.
2. Which grade of concrete is used for PQC?
M40 is commonly used in Indian highway practice, but the key design requirement is a minimum 28-day flexural strength of about 4.5 MPa. Always follow the approved design and project specification.
3. What is the thickness of a PQC slab?
There is no universal thickness. It depends on traffic loading, subgrade and base support, concrete properties and the IRC:58 design. On highways it is commonly in the range of about 250 to 350 mm.
4. What is the difference between PQC and DLC?
PQC is the high-strength top slab that carries traffic. DLC (Dry Lean Concrete) is the lean, lower-strength sub-base placed beneath it to give uniform, erosion-resistant support.
5. Why is PQC designed on flexural strength?
Because a pavement slab bends under wheel loads, and the critical stress is tension at the bottom of the slab. Flexural strength measures resistance to this bending.
6. What is the maximum aggregate size used in PQC?
The nominal maximum size is commonly 31.5 mm as per IS 383 and IRC/MoRTH practice.
7. What is the difference between slip-form and fixed-form paving?
A slip-form paver builds the slab continuously without side forms and suits long highway stretches. Fixed-form paving uses side forms and suits short lengths, curves, junctions and areas where a paver cannot operate.
8. How long should PQC be cured?
Typically at least 14 days using curing compound and wet curing, as per project specification.
9. Why are joints provided in PQC pavements?
Joints control shrinkage and temperature cracking, allow slab movement and transfer load between adjacent slabs through dowel and tie bars.
10. What is the difference between PQC and bituminous pavement?
PQC is a rigid concrete slab, while bituminous pavement is a flexible layered system. They differ in design method, construction, jointing, maintenance needs, cost profile and long-term performance.
11. How long does a PQC road last?
PQC roads are commonly designed for about 30 years or more. Actual life depends on traffic, construction quality, drainage, joint maintenance and curing.
References and Standards
- IRC:58 – Guidelines for the Design of Plain Jointed Rigid Pavements for Highways
- IRC:15 – Standard Specifications and Code of Practice for Construction of Concrete Roads
- MoRTH Specifications for Road and Bridge Works, Section 600 (Concrete Pavement)
- IS 269, IS 455, IS 1489 (Part 1) – Cement
- IS 383, IS 2386 – Aggregates and tests
- IS 456 – Plain and Reinforced Concrete (water quality and general requirements)
- IS 516 – Methods of Tests for Strength of Concrete
- IS 9103, IS 6925 – Admixtures and chloride test method
- IS 1786 – Steel bars
- IS 3812, IS 16714 – Fly ash and GGBS
Always use the latest revision of each standard and the approved project documents for design and acceptance.
