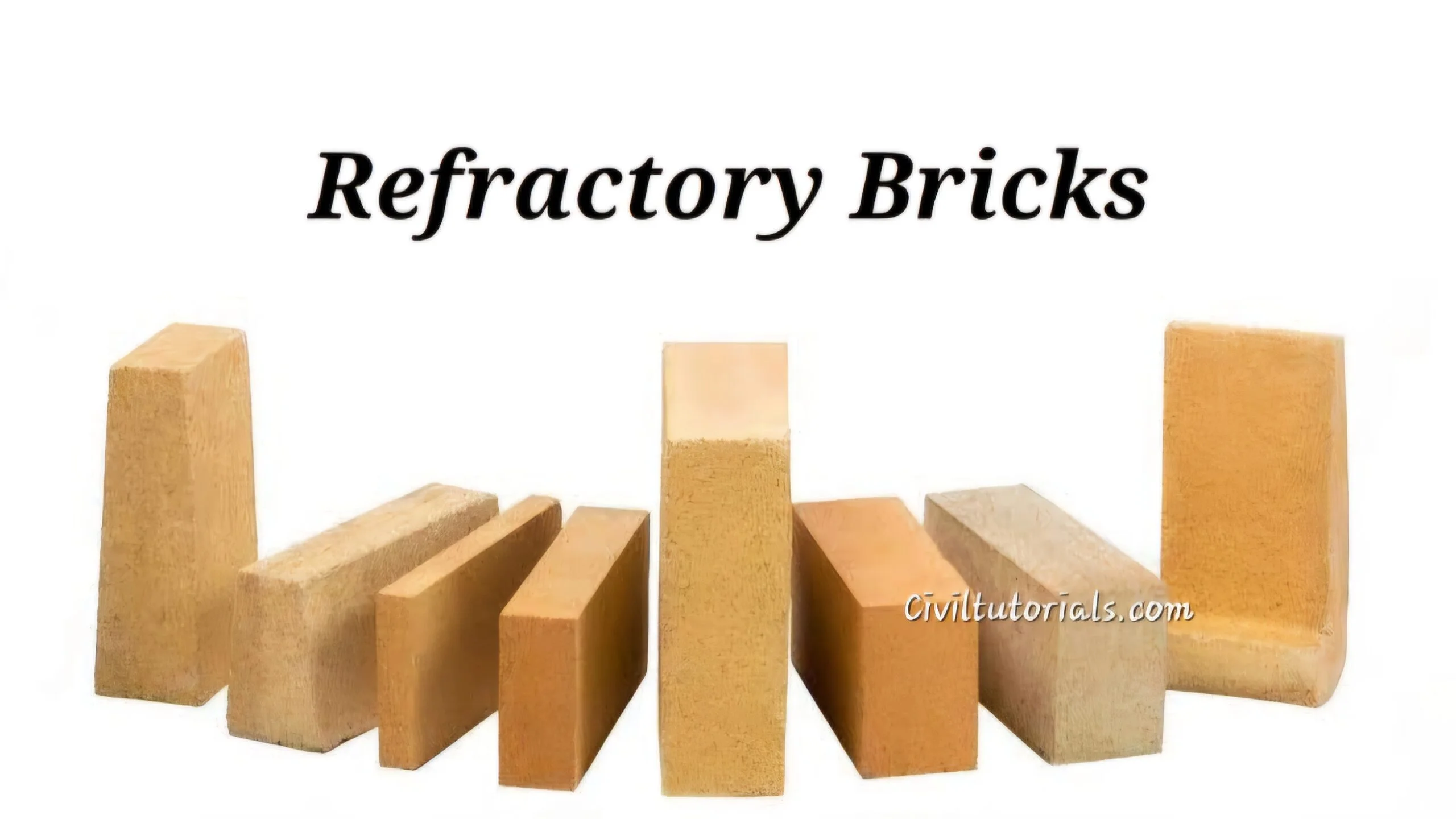

What Are Refractory Bricks? Types, Uses, and Benefits

Refractory bricks, also known as fire bricks, are specialized ceramic materials designed to withstand extremely high temperatures, making them essential in industries like metalworking, glassmaking, and ceramics. These bricks maintain structural integrity under thermal stress, offering exceptional thermal insulation and chemical resistance. Understanding the types, uses, and benefits of refractory bricks is crucial for applications in civil engineering, infrastructure design, and construction site testing.

Types of Refractory Bricks

Refractory bricks are categorized based on their chemical composition and resistance to different environments.

Acidic Refractory Bricks

Silica Bricks: Composed of over 93% silicon dioxide, these bricks can withstand temperatures up to 2000°C, making them ideal for acid linings in furnaces.
Ganister Bricks: Contain 85% silica, 10% clay, and 2% lime, suitable for high-temperature applications requiring acid resistance.

Basic Refractory Bricks

Magnesite Bricks: Contain 85% magnesium oxide and 3–5% iron oxide, capable of withstanding temperatures between 1800–2100°C.
Dolomite Bricks: Rich in calcium carbonate, these bricks can endure temperatures from 1400–1600°C.
Bauxite Bricks: Contain 85% bauxite, suitable for applications up to 1600°C.

Neutral Refractory Bricks

Chromite Bricks: Composed of magnesia and chromia, offering stability in both acidic and basic environments.
Forsterite Bricks: Made from magnesium silicate, providing resistance to thermal shock.
Carborundum (Silicon Carbide) Bricks: Known for high thermal conductivity and resistance to thermal shock.

Properties of Refractory Bricks

High-Temperature Resistance: Capable of withstanding temperatures ranging from 1400°C to over 2000°C.
Thermal Insulation: Low thermal conductivity helps in conserving energy.
Chemical Stability: Resistant to chemical attacks from slags, gases, and other reactive substances.
Mechanical Strength: High compressive strength ensures durability under load-bearing conditions.
Low Porosity: Reduces the penetration of molten materials and gases.

Uses of Refractory Bricks

Refractory bricks are integral to various industrial applications:

Furnaces and Kilns: Lining for steel, glass, and ceramic furnaces.
Fireplaces and Wood Stoves: Domestic heating appliances.
Pizza Ovens: High-temperature cooking environments.
Incinerators: Waste disposal units operating at high temperatures.
Boilers: Industrial boilers requiring heat-resistant linings.

Benefits of Using Refractory Bricks

Energy Efficiency: Excellent insulation properties reduce energy consumption.
Longevity: Durable under extreme conditions, leading to longer service life.
Safety: Maintains structural integrity, reducing the risk of accidents.
Cost-Effective: Lower maintenance and replacement costs over time.

Table: Comparison of Refractory Brick Types

Type	Composition	Temperature Resistance	Applications
Silica	>93% SiO₂	Up to 2000°C	Acid linings in furnaces
Ganister	85% SiO₂, 10% clay	Up to 2100°C	High-temperature acid environments
Magnesite	85% MgO	1800–2100°C	Steelmaking furnaces
Dolomite	High CaCO₃	1400–1600°C	Cement kilns
Bauxite	85% Al₂O₃	Up to 1600°C	General high-temperature applications
Chromite	MgO and Cr₂O₃	High	Neutral environments
Forsterite	Mg₂SiO₄	High	Thermal shock applications
Carborundum	Silicon Carbide	Very High	Abrasive and high-wear environments

FAQs on Refractory Bricks

What are refractory bricks made of?

Refractory bricks are made from various materials, including silica, alumina, magnesia, and other compounds, depending on the desired properties and applications.

Where are refractory bricks commonly used?

They are used in high-temperature environments such as furnaces, kilns, incinerators, fireplaces, and boilers.

How do refractory bricks differ from regular bricks?

Refractory bricks are designed to withstand high temperatures and chemical attacks, whereas regular bricks are not suitable for such extreme conditions.
