In the world of modern surveying, technology keeps evolving to make land measurement faster and more precise. One such breakthrough is the Prismless Total Station Survey, which has changed how engineers and surveyors capture data in complex environments. Whether it’s construction layout, road alignment, or topographic mapping, a prismless total station provides speed and accuracy without requiring a prism. In this guide, we’ll explore how prismless total stations work, their uses, advantages, limitations, and the best scenarios to use them in 2025 and beyond.
What is a Prismless Total Station Survey?

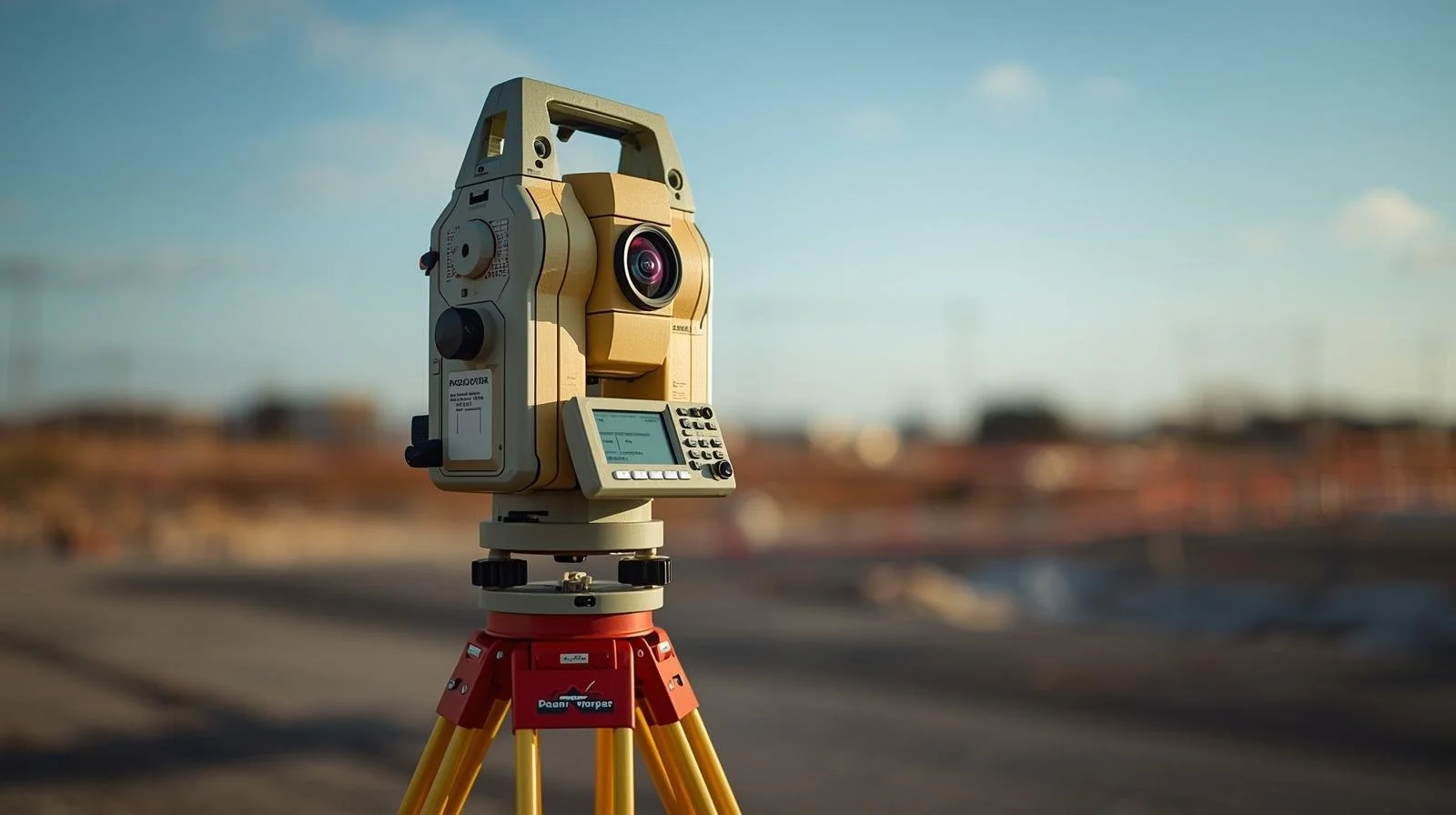

A prismless total station survey is a method of land surveying that uses a total station instrument capable of measuring distances without the need for a prism reflector. Traditional total stations rely on prisms to reflect signals, but prismless ones send laser or infrared beams directly to the target surface. This makes surveying faster and more flexible, especially in areas where placing a prism is difficult or unsafe.
How Prismless Total Station Works
Understanding how prismless total stations work helps appreciate their efficiency in field operations. It uses advanced electronic systems to capture distance and angle data instantly.
Components of a Prismless Total Station
A prismless total station includes several components that work together for accuracy and speed: EDM unit, Theodolite, Microprocessor, Display, and Battery system.
Step-by-Step Working Process
The total station is set on a tripod, aimed at a surface, sends out a laser beam, and calculates the time it takes for light to return. This data is processed into precise coordinates automatically.
Advantages of Prismless Total Station Survey
This modern surveying method offers multiple advantages over conventional ones. It eliminates the need for a prism and improves workflow efficiency.
Top Benefits for Surveyors
- No need for prisms saves manpower and setup time.
- Enables distance measurement up to 1000 meters.
- Perfect for rough terrains and hard-to-reach areas.
- Increases safety by reducing field exposure.
- Offers digital data recording with high precision.
When to Use Prismless Total Station Survey
You can use this method in environments where placing a prism is impractical or unsafe. Prismless systems are perfect for topographic, structural, and urban surveys.
Ideal Use Cases
- Bridge and dam inspections
- Urban road layout planning
- Tunnel or mine measurements
- Mountain or forest topography
- Remote construction monitoring
Key Applications of Prismless Total Station
The use of prismless total stations extends across civil, construction, and environmental fields. These instruments simplify large-scale and complex mapping tasks with precision.
Common Application Areas
- Topographic Surveys for land profiling
- Construction Layouts for positioning buildings and infrastructure
- Road and Highway Projects for alignment accuracy
- Mining Operations for volume and slope calculations
- Structural Monitoring for bridges and tall structures
Prismless vs Prism Total Station
Choosing between the two depends on your site conditions and precision requirements. Prismless total stations are faster, while prism-based ones excel at long distances.
Comparison Table
| Feature | Prismless Total Station | Prism Total Station |
|---|---|---|
| Measurement Type | Direct (no prism) | Reflective (requires prism) |
| Ideal Conditions | Inaccessible or irregular surfaces | Open and clear environments |
| Accuracy | High (slightly lower on long ranges) | Very high on all ranges |
| Speed | Faster and simpler setup | Requires prism alignment |
| Cost | Slightly higher | Moderate |
How to Choose the Right Prismless Total Station
Selecting the correct total station ensures better results and return on investment. Look for features that match your project scale and accuracy needs.
Key Buying Factors
- Range and accuracy specifications
- Onboard software compatibility
- Data storage and Bluetooth transfer
- Weight and battery life
- Manufacturer support and calibration options
Factors Affecting Prismless Total Station Accuracy
While prismless total stations are precise, a few environmental and operational factors influence readings.
Main Accuracy Factors
Surface material reflectivity, weather conditions like fog or rain, calibration frequency, and shooting distance all play major roles in accuracy.
Maintenance Tips for Prismless Total Stations
Maintaining your equipment properly extends its lifespan and ensures consistency in every survey.
Maintenance Checklist
Clean lenses regularly, store in a dry protective case, calibrate before field use, and avoid exposure to extreme temperatures.
How Prismless Technology Improves Modern Surveying
Prismless technology has revolutionized field data collection by enabling single-operator setups and faster execution. With integrated GNSS, Bluetooth, and digital data logging, it enhances productivity for both small and large projects.
FAQs About Prismless Total Station Survey
What is the maximum range of a prismless total station?
Most modern prismless total stations can measure distances up to 800–1000 meters depending on surface reflectivity and weather.
Is prismless surveying as accurate as prism-based?
For short and medium ranges, yes—it delivers near-equal accuracy. For long control networks, prism-based may still lead slightly.
Can prismless total stations be used for construction layout?
Absolutely. They’re widely used in building and infrastructure layout because of their flexibility and precision.
Do prismless total stations work in bad weather?
They perform well in normal conditions, but heavy rain or fog can slightly affect the laser beam.
Which brand offers the best prismless total station?
Leica, Trimble, Topcon, and Sokkia are globally recognized for their reliability, range, and onboard technology.
Conclusion
A Prismless Total Station Survey is a game-changer for surveyors who value efficiency, accuracy, and safety. It eliminates the need for a prism, reduces manpower, and works flawlessly across difficult terrains. Though slightly affected by extreme weather, its versatility and performance make it one of the most reliable surveying solutions in 2025.
