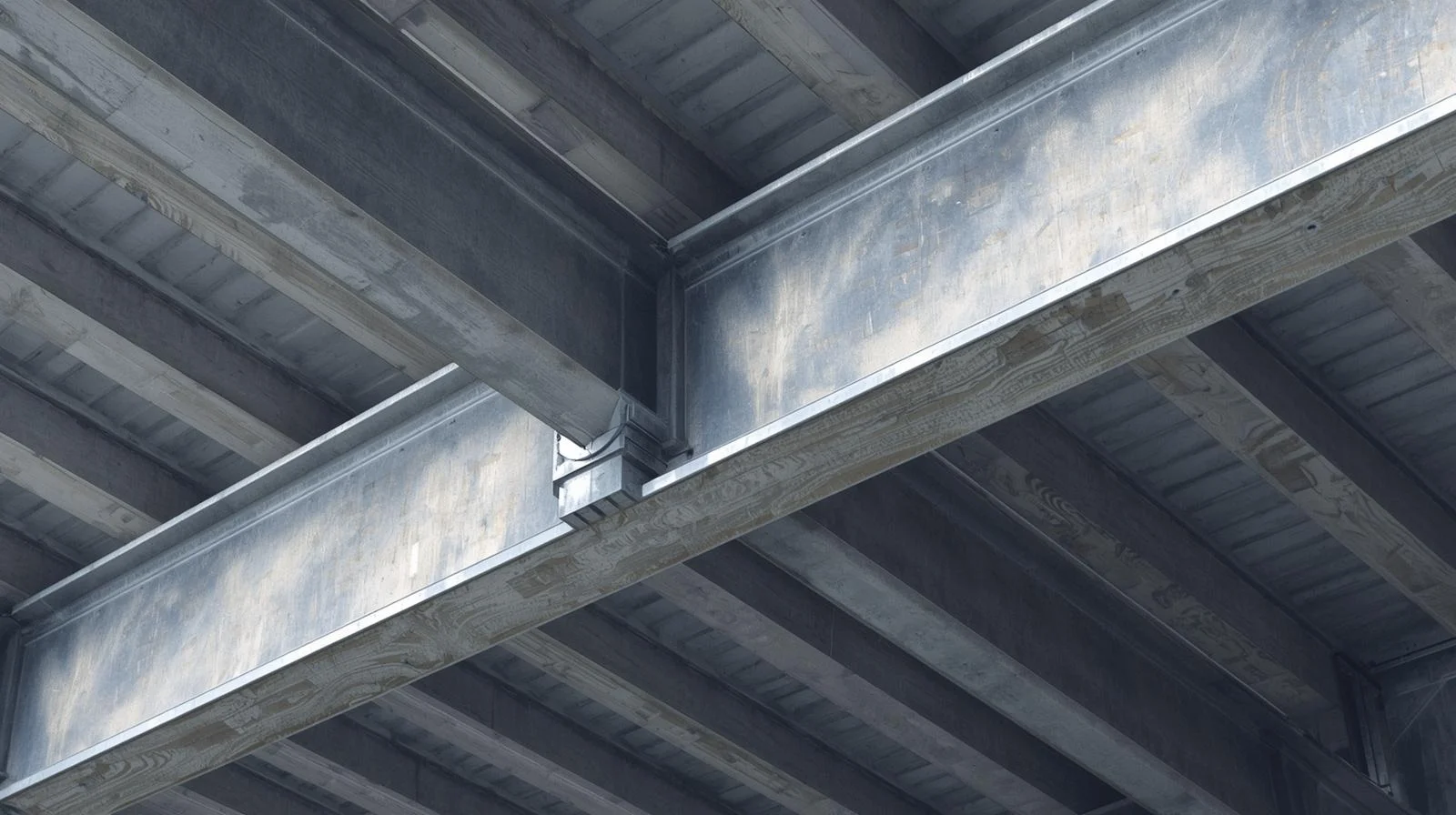

A fixed beam structure is a fundamental element in civil engineering and structural design. Unlike simply supported beams or cantilevers, a fixed beam, also known as a built-in or clamped beam, is secured at both ends in such a way that it can neither rotate nor translate. This creates a very strong and stable structural component, commonly found in bridges, buildings, and other infrastructure.
Table of Contents
The primary characteristic of a fixed beam is its ability to resist both bending moments and shear forces at its supports. This dual resistance is what sets it apart and makes it so useful in a wide range of applications.
The Defining Characteristics
A fixed beam’s defining feature is its support conditions. The ends are “fixed,” meaning they are rigidly attached to a support. This rigid connection prevents any rotation, which introduces a fixed-end moment. In a simply supported beam, the ends are free to rotate, and there are no moments at the supports. However, with a fixed beam, the supports actively resist this rotation. This resistance is crucial because it significantly reduces the maximum bending moment in the middle of the beam, which is a major benefit.
Bending Moment Distribution in Fixed Beams
The bending moment distribution in a fixed beam is quite different from other types of beams. Instead of a single maximum moment in the center, a fixed beam has a more complex pattern. It experiences a negative bending moment at the supports and a positive bending moment in the span.
The negative moment at the supports is a direct result of the fixed connection resisting rotation. This means the beam’s top fibers are in tension at the supports, which is an important consideration for reinforcement and material selection. Understanding this distribution is essential for structural analysis and design.
Shear Force and Its Implications
Shear force is another key consideration in a fixed beam structure. Like other beams, it carries vertical loads, which create shear forces along its length. However, the fixed supports introduce unique shear force reactions. The shear forces at the supports are generally higher than in simply supported beams under the same loading conditions. This needs to be accounted for when designing the beam and the supports to prevent shear failure. Engineers must carefully calculate these forces to ensure the structure’s integrity.
The Advantages of Using Fixed Beams
Fixed beams offer several significant advantages that make them a preferred choice for many engineering projects. Their inherent rigidity and load-carrying capacity are a direct result of their fixed support conditions. This makes them highly reliable for both static and dynamic loads.
Enhanced Structural Rigidity
One of the most significant benefits is their enhanced structural rigidity. The fixed ends restrict movement, making the beam much stiffer. This stiffness minimizes deflection and vibrations, which is crucial for structures that need to maintain their shape under load. Think of a long bridge span; a fixed beam design would result in less sagging compared to a simply supported one. This improved rigidity directly contributes to the overall structural stability of the system.
Reduced Deflection and Increased Strength
The fixed-end moments play a crucial role in reducing beam deflection. By counteracting the bending caused by the applied loads, these moments effectively “flatten out” the bending moment diagram. This means the beam sags less, which is vital for serviceability and aesthetic reasons. A fixed beam can support a greater load for the same span and material compared to a simply supported beam. This inherent strength makes them ideal for demanding applications.
Economic and Material Efficiency
While they might seem more complex to design, fixed beams can sometimes lead to economic efficiency. Because they are so strong and rigid, you might be able to use a smaller cross-section of material to carry the same load as a larger simply supported beam. This can lead to cost savings in materials. However, the connection detail at the supports is more complex and can increase labor costs. A careful structural design balance is needed to achieve the best outcome.
Disadvantages and Design Considerations
Despite their many benefits, fixed beams are not without their challenges. Understanding these drawbacks is just as important as knowing their advantages for a safe and effective design.
Sensitivity to Support Settlement
Fixed beams are highly sensitive to support settlement. If one of the supports sinks even a small amount, it can induce significant internal stresses in the beam. This is because the fixed ends prevent the beam from adjusting to the new geometry. These induced stresses can be dangerous and potentially lead to failure. This makes proper foundation design and ground conditions a critical part of any project using fixed beams.
The Complexity of Structural Analysis
The structural analysis of fixed beams is more complex than that of statically determinate beams. Fixed beams are considered statically indeterminate, which means the number of unknown reactions (forces and moments) at the supports is greater than the number of available equilibrium equations. This requires using more advanced methods like the moment distribution method or the flexibility method to solve for the support reactions and internal forces. Engineers must have a solid grasp of these advanced principles.
Thermal Expansion and Contraction
Thermal expansion and contraction can also pose a problem for fixed beams. Since the ends are rigidly fixed, the beam cannot expand or contract freely in response to temperature changes. This can induce significant thermal stresses in the beam, especially in long spans. These stresses must be accounted for in the design to prevent cracking or other types of damage. In outdoor structures like bridges, this is a particularly important factor.
Real-World Applications of Fixed Beams
Fixed beams are everywhere, and their properties make them suitable for a vast array of applications. From simple construction elements to large-scale infrastructure, they are a cornerstone of modern engineering.
Bridges and Overpasses
Fixed beams are commonly used in bridge engineering. For shorter spans and overpasses, fixed beam structures can provide the necessary strength and stability. The reduced deflection is particularly beneficial for bridges, ensuring a smooth ride for vehicles. The fixed connections help distribute the loads effectively, managing the traffic and environmental forces.
Building Construction
In building construction, fixed beams are used in frames and floor systems. They are excellent for creating rigid connections between columns and beams, which is crucial for resisting lateral loads like wind and seismic forces. This rigidity helps maintain the building’s shape and prevents sway, contributing to overall building stability.
This is a key reason why they are a preferred choice in high-rise buildings and other large structures.
Machine Components and Frames
Beyond large-scale civil engineering, fixed beams are also used in machine components and frames. A machine base, for example, might be designed as a fixed beam to provide a stable and rigid platform for the machinery. This prevents vibrations and ensures the precise alignment of components, which is vital for the machine’s performance and longevity.
Key Features in Summary
To recap, the key features of a fixed beam structure are:
- Fixed Supports: The ends are rigidly attached, preventing both translation and rotation.
- Fixed-End Moments: The supports resist rotation, introducing moments that affect the bending moment distribution.
- Reduced Deflection: The fixed-end moments help to reduce the maximum deflection in the beam, making it stiffer.
- Increased Strength: A fixed beam can carry a greater load for the same span and material compared to a simply supported beam.
- Statically Indeterminate: Analysis is more complex due to the additional unknown reactions.
- Sensitivity: Vulnerable to support settlement and thermal stresses.
These features collectively define the fixed beam and explain its utility and limitations. A thorough understanding of these principles is essential for anyone involved in structural design.
FAQs on Fixed Beam Structures
What is the difference between a fixed beam and a simply supported beam?
A simply supported beam rests on two supports, and its ends are free to rotate. This means it has no moments at the supports. A fixed beam, on the other hand, is rigidly attached at both ends, preventing any rotation. This rigid connection introduces moments at the supports, which significantly changes its bending moment distribution and reduces deflection.
Why are fixed beams considered statically indeterminate?
A fixed beam has three unknown reactions at each support: a vertical reaction, a horizontal reaction, and a moment. With two supports, that’s a total of six unknown reactions. However, there are only three equations of static equilibrium available (sum of horizontal forces = 0, sum of vertical forces = 0, and sum of moments = 0). Since the number of unknowns is greater than the number of equations, the beam is considered statically indeterminate.
What is a fixed-end moment?
A fixed-end moment is the moment that develops at the support of a fixed beam due to the rigid connection. The support prevents the end of the beam from rotating under load, and this rotational resistance manifests as a moment. These moments are negative, meaning they cause tension on the top fibers of the beam at the supports.
How does thermal expansion affect a fixed beam?
Because a fixed beam is rigidly attached at both ends, it cannot expand or contract freely in response to temperature changes. When the temperature increases, the beam tries to expand but is restrained by the supports. This restraint induces compressive stresses. Conversely, when the temperature decreases, the beam tries to contract, but the supports prevent it, leading to tensile stresses. These thermal stresses must be considered in the design to avoid failure.
