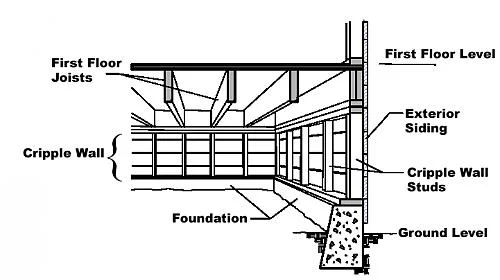

A cripple wall is a short wall located between the foundation and the first-floor joists of a building. These walls are commonly found in homes with crawl spaces and serve the crucial role of supporting the weight of the house. The cripple wall foundation acts as a connection between the foundation and the upper structure, ensuring stability. Despite their small size, these walls are essential to the structural integrity of the building.
Why Are Cripple Walls Important?
Cripple walls are critical components in homes built on uneven terrain or slopes. They transfer the weight of the upper floors down to the cripple wall foundation, helping stabilize the house. However, these walls can be weak points during earthquakes if not adequately reinforced, which can result in structural damage.
Highlighted Theme: Cripple wall bracing is vital in earthquake-prone regions, ensuring that these walls can withstand lateral forces and prevent damage.
Components of a Cripple Wall
The typical components of a cripple wall include:
- Wooden Studs: Vertical beams that support the floor joists.
- Mud Sill (Sill Plate): The horizontal beam that sits on the foundation.
- Floor Joists: Horizontal beams supporting the upper floors.
- Sheathing (Bracing): Materials like plywood used to reinforce the wall and prevent lateral movement.
Common Problems with Cripple Walls
Older homes with cripple walls can face several issues, especially if the walls are not properly maintained or braced. Some common problems include:
- Structural Weakness: Older cripple walls may not have sufficient reinforcement.
- Seismic Vulnerability: Homes in earthquake-prone areas often have cripple walls that fail during seismic events if not retrofitted.
- Termite Infestation: Wooden cripple walls are susceptible to termites, which can weaken the structure.
- Fire Hazard: Wood-based cripple walls may increase the risk of fire.
Highlighted Theme: Ensuring cripple wall bracing and reinforcement can mitigate many of these risks, especially in seismic zones.
Solutions to Secure Cripple Walls
To strengthen and secure cripple walls, several techniques are used:
- Cripple Wall Bracing
Bracing the wall with plywood or similar materials is essential to prevent lateral movement during an earthquake.StepProcessMeasureMeasure the height and width of the cripple wall.CutCut plywood panels to fit the size of the wall.SecureAttach the plywood with nails to reinforce the wall.ReinforceAdd additional bracing if necessary. - Foundation Anchor Bolt System
This system secures the cripple wall foundation to the home’s foundation with anchor bolts, adding resistance to seismic forces.
Cripple Wall Retrofit
In earthquake-prone areas, retrofitting cripple walls is a cost-effective solution to enhance structural integrity. Retrofitting involves reinforcing the wall with materials such as plywood, anchor bolts, and metal connectors.
Benefits of Cripple Wall Retrofit:
- Strengthens the home’s resistance to seismic forces.
- Prevents costly damage from earthquakes.
- Increases home resale value.
Highlighted Theme: Cripple wall retrofitting is essential for earthquake safety, especially in older homes with weak or unbraced cripple walls.
Advantages of Cripple Wall Bracing
- Improved Safety: Proper cripple wall bracing reduces the risk of failure during earthquakes.
- Cost-Effective: Bracing and retrofitting are much cheaper than repairing damage caused by structural failure.
- Resale Value: Homes with properly braced cripple walls are more attractive to buyers in earthquake-prone regions.
Disadvantages of Cripple Walls
- Seismic Vulnerability: Unreinforced cripple walls are highly susceptible to failure during an earthquake.
- High Maintenance: Regular inspection and maintenance are required to keep cripple walls structurally sound.
- Termite and Water Damage: Wooden cripple walls are vulnerable to both termites and water damage, which can reduce their strength over time.
Cripple Wall vs. Regular Wall
| Feature | Cripple Wall | Regular Wall |
|---|---|---|
| Location | Between foundation and first floor joists | Throughout the structure |
| Height | 14 inches to 4 feet | Typically 8-10 feet |
| Function | Transfers load to the foundation | Divides interior space or supports external walls |
| Vulnerability | Prone to seismic damage if unbraced | Less vulnerable to seismic activity |
Highlighted Theme: Cripple walls are smaller and more vulnerable than regular walls, making cripple wall bracing essential for structural safety.
Key Takeaways Of Cripple walls
- Cripple walls are crucial for transferring weight from the home’s upper floors to the foundation.
- These walls are especially vulnerable in earthquake-prone regions if not properly braced.
- Cripple wall bracing and cripple wall retrofit are important for protecting the home from damage during seismic events.
- Regular inspection and maintenance can help prevent problems like termite infestation and water damage.
Frequently Asked Questions (FAQ) About Cripple Walls
Q1: What is a cripple wall?
A cripple wall is a short wall found between the foundation and the first-floor joists in homes with crawl spaces. It supports the weight of the house and transfers it to the foundation.
Q2: Why are cripple walls important?
Cripple walls play a critical role in maintaining the stability of homes built on slopes or uneven terrain. They transfer the load from the upper structure to the foundation, making them essential for structural integrity.
Q3: What is cripple wall bracing?
Cripple wall bracing involves reinforcing the wall with materials like plywood to prevent lateral movement during seismic activity. It is crucial in earthquake-prone areas to prevent structural failure.
Q4: How can I strengthen my cripple wall?
You can strengthen a cripple wall by adding plywood bracing and installing a foundation anchor bolt system. This retrofitting process significantly improves the wall’s resistance to seismic forces.
Q5: What is the difference between a cripple wall and a regular wall?
A cripple wall is shorter and found in crawl spaces, while regular walls are taller and located throughout the structure. Cripple walls are more vulnerable to seismic activity and need proper bracing.
