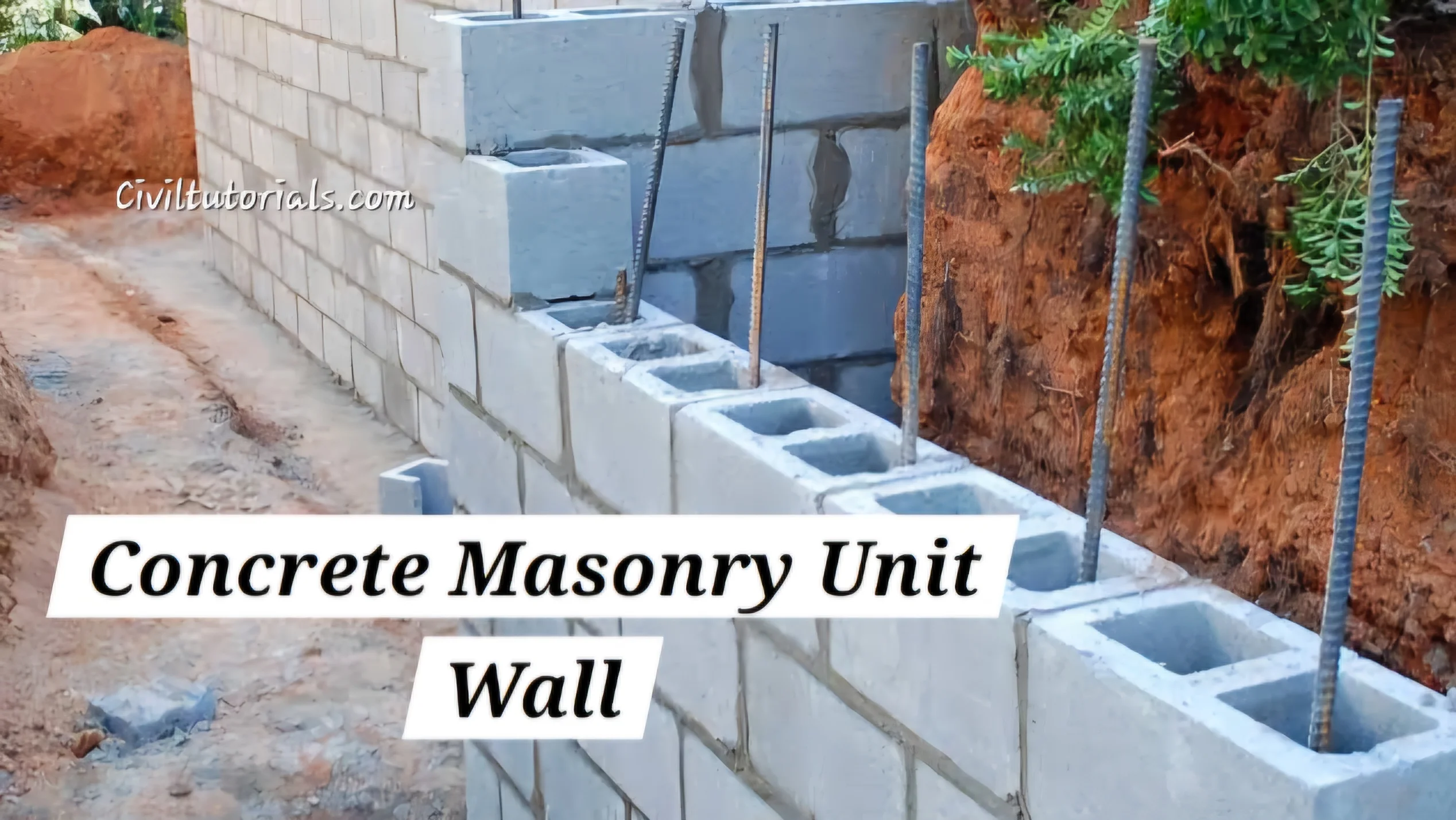

A concrete masonry unit wall (CMU wall) is a widely used building technique in civil engineering and infrastructure design. It consists of concrete blocks, known as masonry units, that are stacked and bonded with mortar to create walls for residential, commercial, and industrial construction. The concrete masonry unit wall is favored for its strength, durability, and versatility. Understanding the types, uses, and benefits of CMU walls is essential for professionals involved in road construction, foundation testing, and geotechnical engineering.
The importance of CMU walls extends beyond aesthetics; they provide excellent structural support, sound insulation, and fire resistance. In addition, proper soil testing methods and load-bearing capacity evaluations are crucial when designing CMU walls to ensure long-term stability.
Types of Concrete Masonry Unit Walls
Concrete masonry units come in various types and sizes, which allow for flexibility in construction. Each type serves specific purposes depending on the project requirements.
1. Hollow Concrete Blocks
These are the most common type of CMU walls. Hollow blocks reduce the overall weight of the wall and provide better insulation. They also allow for reinforcement with steel rods and concrete filling, increasing strength.
2. Solid Concrete Blocks
Solid blocks are heavier and denser than hollow blocks. They provide excellent load-bearing capacity and are used in foundations and retaining walls.
3. Lightweight Concrete Blocks
Made using lightweight aggregates, these blocks provide better thermal insulation and are easier to handle, making them suitable for partition walls and non-load-bearing structures.
4. Aerated Autoclaved Concrete (AAC) Blocks
AAC blocks are highly porous, providing excellent insulation and fire resistance. They are lighter than traditional concrete blocks and contribute to faster construction.
5. Decorative Concrete Blocks
These are used primarily for aesthetic purposes in facades, landscaping, and architectural elements. They come in various textures and colors.
Uses of Concrete Masonry Unit Walls
The concrete masonry unit wall is versatile and used in a variety of applications:
- Residential Buildings: Used in walls, basements, and foundations for durability and fire resistance.
- Commercial Structures: Provides strong load-bearing walls suitable for warehouses, offices, and shopping centers.
- Industrial Facilities: Withstands heavy loads and harsh environments, suitable for factories and storage units.
- Retaining Walls: Supports soil in landscaping and road construction projects.
- Noise Barriers: Used along highways and roads to reduce traffic noise due to its sound-absorbing properties.
CMU walls are integral to highway engineering and geotechnical engineering projects, where strength and durability under varying soil conditions are critical.
Benefits of Concrete Masonry Unit Walls
Choosing CMU walls offers numerous advantages:
- Strength and Durability: Resistant to weather, fire, and pests, CMU walls provide a long-lasting structure.
- Thermal and Sound Insulation: Hollow and lightweight blocks offer better insulation compared to traditional bricks.
- Cost-Effective Construction: Faster installation reduces labor costs, and materials are widely available.
- Fire Resistance: Concrete does not burn, providing safety in buildings.
- Versatility: Can be used in load-bearing and non-load-bearing walls, with options for decorative finishes.
- Low Maintenance: Requires minimal upkeep over time, making it suitable for various infrastructure projects.
Table: Comparison of Concrete Masonry Unit Types
| CMU Type | Weight | Strength | Insulation | Common Uses |
|---|---|---|---|---|
| Hollow Concrete Block | Light | Moderate to High | Good | Walls, foundations |
| Solid Concrete Block | Heavy | Very High | Moderate | Load-bearing walls |
| Lightweight Block | Very Light | Moderate | Excellent | Partition walls |
| AAC Block | Light | Moderate | Excellent | Residential walls, facades |
| Decorative Block | Varies | Moderate | Moderate | Facades, landscaping |
Role of Soil Testing and Load-Bearing Capacity in CMU Walls
Before constructing a concrete masonry unit wall, it is crucial to conduct soil strength tests such as the California Bearing Ratio (CBR) test to evaluate the soil’s capacity to support the load. The subgrade evaluation ensures that the foundation and CMU wall can resist settlement and structural failures. These geotechnical considerations play a significant role in foundation testing and overall construction quality.
Frequently Asked Questions (FAQs) About Concrete Masonry Unit Walls
What is a concrete masonry unit wall?
A CMU wall is a wall constructed using concrete blocks stacked and bonded with mortar, commonly used in residential, commercial, and industrial construction.
What are the advantages of using CMU walls?
They provide strength, durability, fire resistance, thermal and sound insulation, and cost-effective construction.
How does soil testing affect CMU wall construction?
Soil testing helps determine if the soil can bear the load of the wall, preventing future settlement or damage.
Are CMU walls suitable for seismic zones?
Yes, with proper reinforcement and design, CMU walls can be constructed to withstand seismic forces.
What types of concrete blocks are used in CMU walls?
Common types include hollow blocks, solid blocks, lightweight blocks, AAC blocks, and decorative blocks.
