Composite Beam Design: Advantages and Usage

Composite beam design is an advanced structural engineering concept where materials like steel and concrete are combined to create stronger and more efficient beams. This method utilizes the best properties of each material steel’s tensile strength and concrete’s compressive strength resulting in beams that are more durable, cost-effective, and versatile.

Widely used in bridges, high-rise buildings, and industrial projects, composite beams have become a preferred choice in modern construction for their superior load-bearing capacity and optimized material usage.

What is Composite Beam Design?

Before exploring its applications and advantages, it’s important to understand the basic concept of composite beam design. In this approach, steel and concrete work together as a single structural unit, combining their strengths to achieve better performance.

The connection is made possible through shear connectors, which effectively transfer forces between the steel section and the concrete slab. This integration enhances the load-carrying capacity, reduces material wastage, and ensures greater structural efficiency compared to using steel or concrete alone.

Importance of Composite Beams in Construction

In modern construction, composite beams have become a crucial innovation due to their ability to deliver both strength and efficiency. By combining steel and concrete into a single unit, they minimize material wastage while ensuring maximum structural performance.

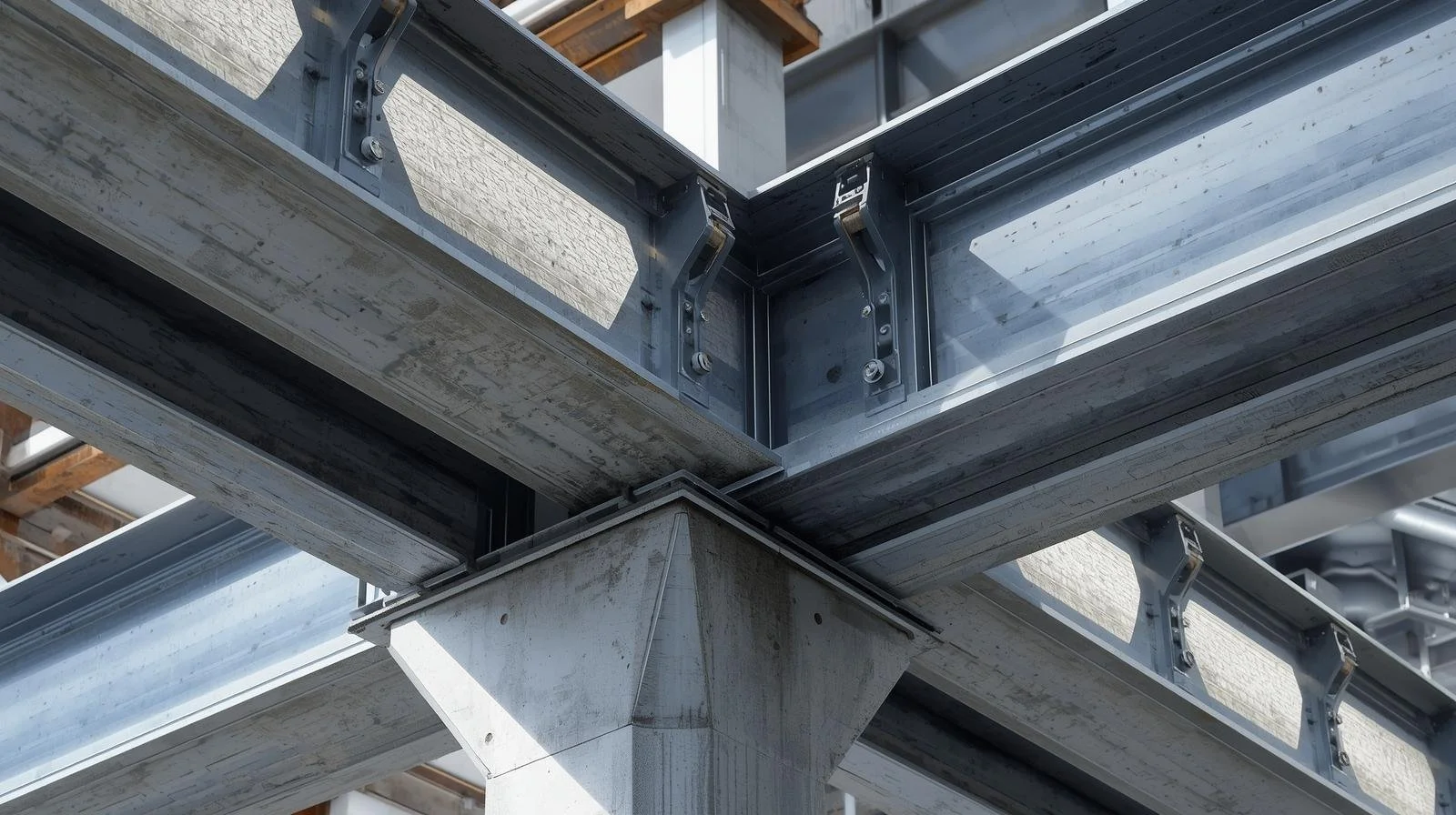

Composite Beam Design

This balance allows engineers to design lightweight yet highly durable structures, making composite beams a preferred choice in high-rise buildings, bridges, and industrial facilities. Their dual advantage of cost-effectiveness and superior load-bearing capacity positions them as an indispensable component in today’s construction industry.

Types of Composite Beams

Composite beams are classified according to the materials combined. Each type is designed to serve specific structural, economic, and aesthetic needs. Let’s look at the main categories in detail:

1. Steel–Concrete Composite Beam

This is the most common and widely used composite beam in modern construction. It combines the best properties of both materials:

  • Steel provides excellent tensile strength, flexibility, and ductility.
  • Concrete takes care of compressive loads and offers fire resistance.
  • Shear connectors ensure both materials act together as one solid unit.

Applications:

  • High-rise buildings (floors and frames)
  • Bridges (deck slabs with steel girders)
  • Industrial plants and heavy load structures

Advantages:

  • High strength-to-weight ratio
  • Cost-effective compared to pure steel structures
  • Excellent durability and fire resistance

2. Concrete–Timber Composite Beam

This type is mainly used in residential projects, renovations, and eco-friendly constructions. Timber alone has limited strength under heavy loads, so concrete is added to provide extra stiffness and durability.

Applications:

  • Residential houses
  • Renovated heritage buildings
  • Sustainable building projects

Advantages:

  • Combines the natural look of wood with the strength of concrete
  • More sustainable than steel-based systems
  • Reduces deflection and enhances floor stiffness

3. Steel–Timber Composite Beam

These beams are part of hybrid structural systems, where aesthetics and strength are equally important.

  • Steel provides structural strength and longer spans.
  • Timber brings an eco-friendly touch and natural beauty.

Applications:

  • Modern office buildings with exposed architectural elements
  • Roof systems and long-span flooring
  • Green building projects where sustainability is a key factor

Advantages:

  • Lightweight compared to concrete systems
  • Faster installation in prefabricated construction
  • Ideal for designs that blend modern and traditional elements

4. Hybrid Composite Beams

Hybrid beams are advanced systems that may use three or more materials like steel, concrete, timber, and fiber-reinforced polymers (FRP). They are specially designed to meet challenging engineering demands.

Applications:

  • Earthquake-resistant structures
  • Bridges requiring longer life spans and corrosion resistance
  • Lightweight aerospace and industrial constructions

Advantages:

  • Superior durability and resilience under extreme conditions
  • Can be customized for fire resistance, earthquake performance, or lightweight design
  • Long service life with reduced maintenance costs

Advantages of Composite Beam Design

Composite beam design offers multiple benefits that make it one of the most efficient and widely used structural solutions in modern construction. By combining the strengths of steel and concrete (or other materials), composite beams achieve superior performance, cost savings, and durability compared to conventional beams.

1. Efficient Load Carrying Capacity

The integration of steel and concrete allows the beam to handle heavier loads with less material. Steel efficiently resists tensile forces, while concrete absorbs compressive stresses, resulting in a highly efficient structural system.

2. Material Optimization

Composite design ensures each material is used to its maximum potential:

  • Concrete excels in compression.
  • Steel provides excellent tensile resistance.
    This intelligent combination enhances reliability and reduces the chances of structural failure.

3. Cost Savings

Because composite beams require less steel and concrete compared to non-composite systems, overall construction costs are reduced. They also allow for longer spans with fewer intermediate supports, which cuts down labor, material, and maintenance expenses.

4. Durability and Fire Resistance

The surrounding concrete acts as a protective shield for steel, reducing risks of corrosion and improving fire resistance. This makes composite beams particularly suitable for high-rise buildings, bridges, and industrial structures where safety is critical.

5. Sustainability

Composite beam design supports eco-friendly construction practices by:

  • Minimizing material wastage
  • Extending structural lifespan
  • Reducing the carbon footprint of projects
    This aligns well with green building standards and modern sustainability goals.

Applications of Composite Beams

Composite beams are highly versatile and widely adopted across different sectors of construction and infrastructure. Their ability to combine strength, efficiency, and durability makes them suitable for both small-scale residential projects and large-scale industrial or infrastructure developments.

1. High-Rise Buildings

In tall structures, composite beams are essential for achieving longer spans and thinner floor slabs, which increases usable floor space and reduces building weight. They also enhance stability and fire resistance, making them a preferred choice for skyscrapers and commercial complexes.

2. Bridges

Composite beams are extensively used in bridge construction because they provide high load-carrying capacity while remaining cost-efficient. The synergy between steel and concrete ensures stability, minimizes deflection, and improves the overall durability of bridge decks and girders.

3. Industrial Structures

Factories, warehouses, and heavy industrial facilities depend on composite beams to withstand dynamic and heavy loads. They allow engineers to design strong yet relatively lightweight structures, improving construction speed and cost efficiency.

4. Residential Construction

In housing projects, composite beams are applied to strengthen timber floors and roofing systems. They improve load capacity without requiring major demolition, making them ideal for renovations and sustainable housing designs.

5. Infrastructure Projects

Composite beams play a vital role in large infrastructure such as airports, railway stations, and stadiums. Their long-term performance, resistance to fire and corrosion, and ability to cover wide spans make them indispensable for modern infrastructure development.

Design Considerations for Composite Beams

Designing composite beams is a critical process that requires engineers to balance strength, durability, safety, and cost-efficiency. Proper design ensures that steel and concrete (or other materials) work seamlessly as one unit, providing long-term stability in both small and large projects. Below are the key factors considered in the design process:

1. Load and Span Requirements

The length of the span and the magnitude of loads (dead loads, live loads, wind, and seismic forces) directly influence the size and type of composite beam used. For longer spans, stronger materials and optimized cross-sections are chosen to prevent failure and reduce the need for intermediate supports.

2. Shear Connectors

Shear connectors, such as studs or mechanical fasteners, are crucial in composite design. They:

  • Prevent slippage between steel and concrete.
  • Ensure joint action so both materials resist forces together.
  • Increase load-bearing efficiency and safety.

3. Fire Protection

Since steel loses strength at high temperatures, fire resistance is a vital design factor. Concrete naturally acts as a protective layer, shielding steel from direct exposure to heat and delaying structural failure during fire incidents. In some cases, additional fireproof coatings or insulation may be added.

4. Deflection Control

Excessive deflection not only compromises structural integrity but also affects comfort and aesthetics (e.g., uneven floors, cracks in finishes). Engineers calculate allowable deflections and design the beam stiffness accordingly to ensure safety and usability.

5. Construction Method

The choice of construction technique significantly affects performance and cost:

Cast-in-Situ Beams → More flexibility at the site, cost-effective for custom designs, but may require more time.

Precast Composite Beams → Faster installation, higher precision, but may increase transportation costs.

FAQs about Composite Beam Design

Readers often have common questions about composite beams. Below are some simple and clear answers.

1. What is the main purpose of composite beams?
The primary purpose of composite beams is to combine the strengths of steel and concrete into a single structural unit. Steel provides excellent tensile strength, while concrete resists compression. Together, they create a system that is stronger, more efficient, and more durable than using either material alone.

2. Where are composite beams used most often?
Composite beams are widely used in bridges, high-rise buildings, industrial structures, warehouses, airports, and railway stations. Their versatility makes them suitable for projects ranging from residential renovations to large-scale infrastructure.

3. How are steel and concrete connected in composite beams?
Steel and concrete are joined using shear connectors, typically welded studs or mechanical fasteners. These connectors prevent slippage between the two materials and ensure they act together as one unit, improving load distribution and structural performance.

4. Are composite beams cost-effective?
Yes. Composite beams are highly cost-effective because they:

  • Reduce the quantity of steel required.
  • Allow for longer spans with fewer supports.
  • Minimize construction time and labor.
    This makes them both economical and efficient for modern projects.

5. Do composite beams improve fire resistance?
Yes. One of the key advantages of composite design is enhanced fire resistance. The surrounding concrete acts as a protective shield for the steel, delaying heat exposure and improving structural safety in case of fire.

Conclusion

Composite beam design has emerged as a cornerstone of modern structural engineering, offering the perfect balance of strength, efficiency, and sustainability. By intelligently combining materials like steel and concrete, engineers can construct beams that not only meet high load demands but also reduce costs and extend service life.

Their widespread use in high-rise buildings, bridges, industrial facilities, and infrastructure projects highlights their reliability and adaptability across diverse construction needs. With advantages such as efficient load distribution, fire resistance, and material optimization, composite beams continue to shape the future of civil engineering.
