The Standard Proctor Density is a key parameter in geotechnical and civil engineering used to determine how densely a soil can be compacted under a specific compaction effort. This test, developed by R.R. Proctor in 1933, provides valuable data on the relationship between soil moisture content and dry density, helping engineers design stable earthworks, embankments, subgrades, and foundations. Understanding the Standard Proctor Density test, its procedure, formula, and practical applications is essential for ensuring proper soil compaction and long-term structural performance.
What Is Standard Proctor Density?
The Standard Proctor Density represents the maximum dry density (MDD) that a soil can achieve under standard compaction conditions, as determined by the Standard Proctor Test. This value indicates the highest density a soil can reach for a specific optimum moisture content (OMC) when compacted with a defined amount of energy.
In simple terms, Standard Proctor Density is the maximum compacted dry unit weight of soil obtained during the test. It is used as a reference benchmark for field compaction control, where field densities are compared to laboratory results to ensure compaction quality.
Purpose of Determining Standard Proctor Density
The primary purpose of determining Standard Proctor Density is to:
- Identify the Optimum Moisture Content (OMC) for maximum compaction.
- Determine the Maximum Dry Density (MDD) achievable under standard compaction energy.
- Serve as a reference value for field density comparison in quality control.
- Evaluate the suitability of soil for construction applications like embankments, subgrades, and dams.
- Assist in selecting appropriate compaction equipment and moisture levels during construction.
Principle of Standard Proctor Density Test
The principle is based on compacting soil in a mold with a fixed energy and varying moisture content. Initially, increasing water content helps lubricate soil particles, leading to higher density. However, after reaching the Optimum Moisture Content (OMC), any additional water starts replacing air in voids, causing a drop in density. The maximum point on the compaction curve gives the Standard Proctor Density (MDD), and the corresponding moisture content gives the OMC.

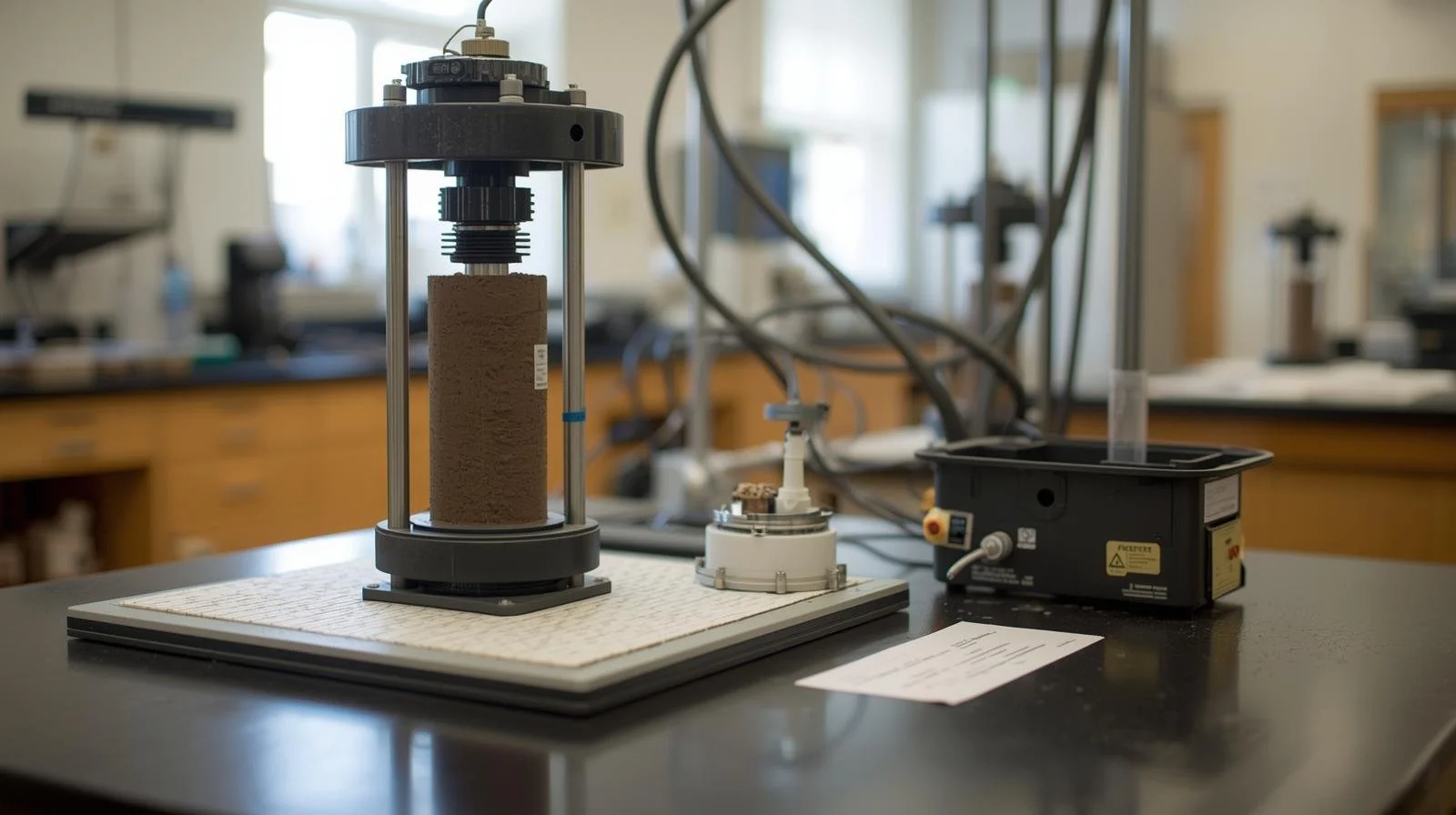

Apparatus Used
To determine the Standard Proctor Density, the following apparatus is used:
- Cylindrical mold of 100 mm diameter and 127.3 mm height (Volume = 944 cm³).
- Detachable collar (50 mm).
- Rammer (Hammer) weighing 2.6 kg, with a 310 mm free fall.
- Balance accurate to 1 g.
- Oven for drying samples (105°C–110°C).
- Moisture tins for determining water content.
- Straightedge and mixing tools.
- Sieve set (typically 4.75 mm IS sieve).
Test Procedure to Determine Standard Proctor Density
The Standard Proctor Density is obtained from the Standard Proctor Compaction Test, following these steps:
1. Soil Sample Preparation
Air-dry the soil sample and sieve it through a 4.75 mm sieve. Divide the sample into portions, each to be compacted at a different moisture content.
2. Moisture Addition
Add a measured amount of water (about 6–8%) to the soil and mix thoroughly to ensure uniform moisture distribution.
3. Compaction
- Assemble the mold with the collar and weigh it (W₁).
- Place the moist soil in three equal layers inside the mold.
- Compact each layer with 25 blows using the 2.6 kg rammer dropped from a height of 310 mm.
- After the final layer, remove the collar and trim the surface even with a straightedge.
4. Weighing
Weigh the mold containing the compacted soil (W₂).
5. Bulk Density Calculation
Bulk density (ρ) = (W₂ – W₁) / V
Where,
ρ = bulk density of compacted soil (g/cm³),
W₂ = weight of mold + compacted soil (g),
W₁ = weight of empty mold (g),
V = volume of mold (cm³).
6. Moisture Content Determination
Take a small soil sample from the mold and place it in a moisture tin. Determine moisture content (w) by oven drying at 105°C–110°C for 24 hours.
w = ((W₁ – W₂) / W₂) × 100
7. Dry Density Calculation
Dry density (ρd) = ρ / (1 + w/100)
8. Repeat for Different Moisture Contents
Repeat the process for at least 4–5 samples with increasing moisture contents (in 2–3% increments).
9. Plot Compaction Curve
Plot moisture content (%) on the x-axis and dry density (g/cm³) on the y-axis. The curve typically rises and then falls after reaching a maximum point.
The peak point gives:
- Maximum Dry Density (MDD) – the Standard Proctor Density.
- Optimum Moisture Content (OMC) – the corresponding water content.
Formula Used in Standard Proctor Density Calculations
Dry Density (ρd):
ρd = ρ / (1 + w/100)
Where:
ρ = bulk density (g/cm³)
w = moisture content (%)
Compaction Energy (E):
E = (No. of layers × No. of blows per layer × Weight of rammer × Height of fall) / Volume of mold
Substituting Standard Proctor parameters:
E = (3 × 25 × 2.6 × 310) / 944 = 592 kN-m/m³
This energy is the standard compactive effort for this test.
Typical Results of Standard Proctor Density Test
| Moisture Content (%) | Bulk Density (g/cm³) | Dry Density (g/cm³) |
|---|---|---|
| 6 | 1.85 | 1.74 |
| 8 | 1.92 | 1.78 |
| 10 | 2.00 | 1.82 |
| 12 | 2.03 | 1.81 |
| 14 | 1.99 | 1.75 |
| From the compaction curve: |
- Optimum Moisture Content (OMC) = 10%
- Maximum Dry Density (MDD) = 1.82 g/cm³ (This is the Standard Proctor Density)
Significance of Standard Proctor Density in Construction
- Ensures adequate soil compaction for stability and strength.
- Prevents settlement and soil failure in embankments and foundations.
- Used as a reference for field density tests (e.g., Sand Cone or Nuclear Density Test).
- Helps determine field compaction requirements (usually 95–100% of Standard Proctor Density).
- Essential for the design of roads, runways, dams, and retaining structures.
Difference Between Standard and Modified Proctor Density
| Parameter | Standard Proctor | Modified Proctor |
|---|---|---|
| Hammer Weight | 2.6 kg | 4.9 kg |
| Drop Height | 310 mm | 450 mm |
| No. of Layers | 3 | 5 |
| Blows per Layer | 25 | 25 |
| Compaction Energy | 592 kN-m/m³ | 2700 kN-m/m³ |
| Maximum Dry Density | Lower | Higher |
| Optimum Moisture Content | Higher | Lower |
| Modified Proctor Density is used for heavy compaction conditions like highways, airfields, and large earth dams, while Standard Proctor Density is used for light to medium structures. |
Applications of Standard Proctor Density
- Road and Railway Embankments: Ensures proper compaction to withstand traffic loads.
- Earth Dams and Canals: Reduces permeability and prevents seepage.
- Foundation Soils: Improves load-bearing capacity and minimizes settlement.
- Backfill in Retaining Walls: Prevents lateral movement and structural distress.
- Airfield Subgrades: Ensures stability under cyclic aircraft loads.
Precautions During Test
- Ensure uniform moisture distribution before compaction.
- Use the same number of blows and compaction energy for each trial.
- Clean the mold and rammer after each use.
- Prevent loss of soil or water during mixing and compacting.
- Accurately measure weights and water content for reliable results.
Conclusion
The Standard Proctor Density is a fundamental parameter in soil mechanics, representing the maximum dry density (MDD) of soil obtained through standardized compaction energy. This test helps engineers determine how much moisture and compaction effort are needed to achieve a stable, dense, and durable soil structure. By ensuring that field compaction meets or exceeds 95–100% of Standard Proctor Density, construction professionals can prevent settlement, increase bearing capacity, and enhance the longevity of earth structures.
