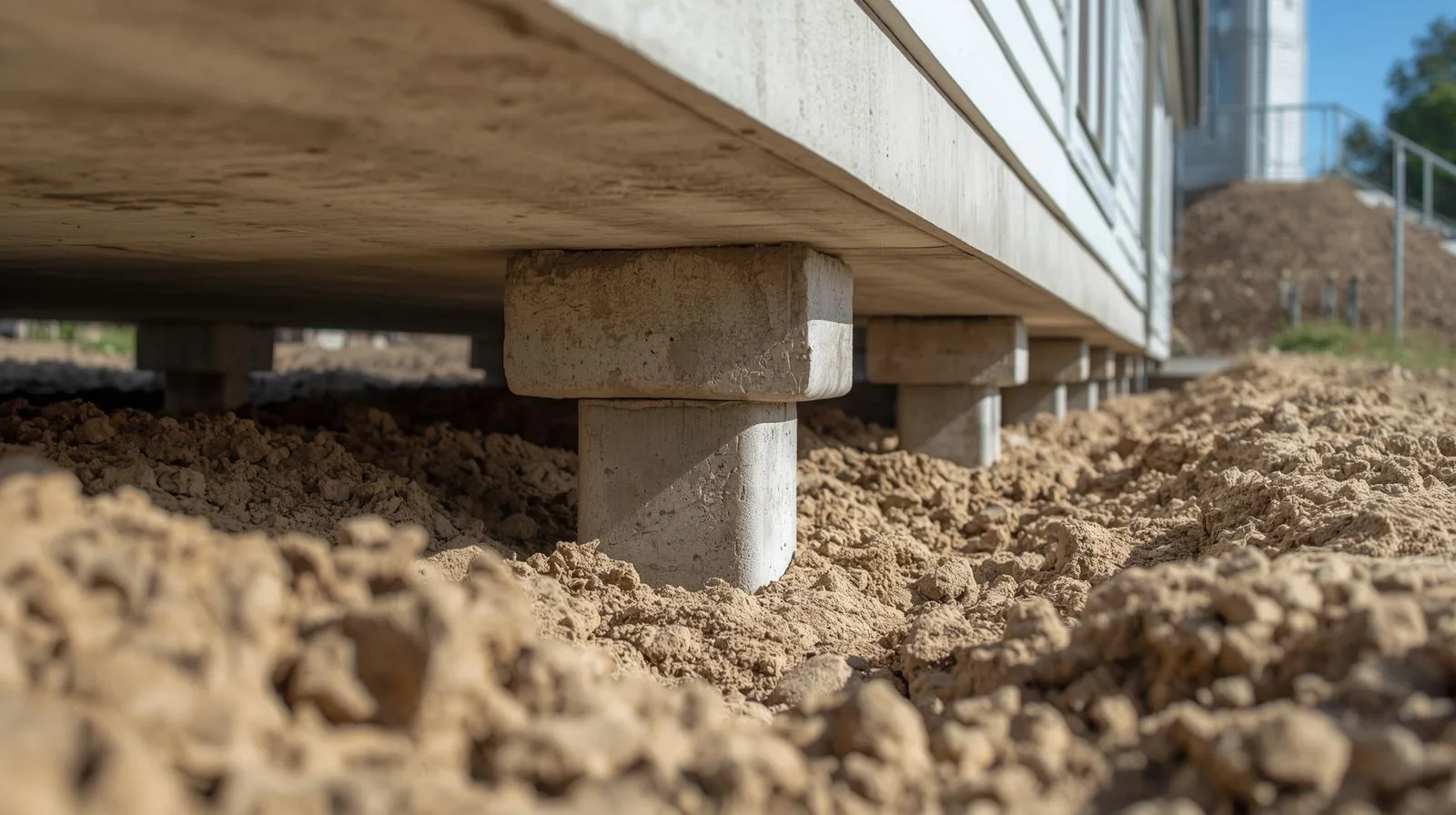

When constructing houses, one of the most important steps is selecting the right type of foundation. Shallow foundations in residential buildings are among the most widely used because they are economical, practical, and suitable for common soil conditions. A shallow foundation transfers the structural load of a building near the ground surface instead of very deep layers. This makes it highly suitable for residential buildings, small commercial projects, and light structures. By understanding shallow foundations in residential buildings, their types, and their advantages, homeowners and engineers can ensure safe and long-lasting construction.
Importance of Shallow Foundations in Residential Buildings
The foundation of a house directly affects its safety, stability, and durability. Shallow foundations in residential buildings are designed to evenly spread loads from walls, columns, and slabs to the soil close to the surface. If designed correctly, they prevent excessive settlement and structural damage. These foundations are also cost-effective compared to deep foundations, which are more suitable for high-rise or heavy structures.
Some key reasons why shallow foundations are important:
- They are economical and easy to construct.
- They require less excavation compared to deep foundations.
- They work well in soils with good bearing capacity near the surface.
- They are suitable for most low-rise residential buildings.
Load Transfer in Shallow Foundations
In shallow foundations, the load of the superstructure is transferred close to the surface of the ground. The depth of these foundations generally ranges between 1–3 meters. The soil directly below must have adequate bearing capacity to resist loads without excessive settlement.
The process of load transfer in shallow foundations includes:
- Collection of load from beams, walls, and slabs.
- Transfer of loads through footings or slabs.
- Distribution of loads evenly into soil at shallow depth.
Proper load distribution ensures that the building remains stable and free from differential settlement.
Types of Shallow Foundations in Residential Buildings
Shallow foundations are classified into different types depending on soil conditions, structural design, and load requirements. Each type has its specific advantages.
Spread Footing
Spread footing, also known as isolated footing, is one of the most common types of shallow foundations in residential buildings. It consists of a concrete base that spreads the load of a column over a larger soil area.
Advantages:
- Simple design and construction
- Economical for small loads
- Suitable for soils with good bearing capacity
Strip Footing
Strip footing is used to support load-bearing walls. It is a continuous strip of concrete placed under the wall to distribute loads evenly.
Advantages:
- Provides continuous support to walls
- Easy to construct and cost-effective
- Prevents settlement cracks in walls
Combined Footing
A combined footing supports two or more columns when they are close to each other or when loads are uneven. It can be rectangular or trapezoidal in shape.
Advantages:
- Useful when columns are close together
- Ensures even distribution of loads
- Reduces chances of differential settlement
Raft or Mat Foundation
Raft foundation, also known as mat foundation, is a thick concrete slab that spreads over the entire building area. It supports all walls and columns together.
Advantages:
- Ideal for weak soils with low bearing capacity
- Distributes loads over a large area
- Prevents excessive settlement
- Suitable for basements in residential buildings
Grillage Foundation
A grillage foundation consists of layers of steel beams or timber embedded in concrete. It is mainly used for heavy concentrated loads but can also be adapted for certain residential projects.
Advantages:
- Provides strong support for heavy loads
- Reduces depth of excavation
- Economical compared to deep foundations
Pad Footing
Pad footing is a square or rectangular slab of concrete placed under a single column. It is often used in small residential structures.
Advantages:
- Simple and quick construction
- Requires less material compared to raft foundation
- Suitable for soils with good bearing capacity
Advantages of Shallow Foundations in Residential Buildings
Using shallow foundations in residential buildings offers several practical and economic benefits.
- Cost-effective: Less excavation and material reduce construction cost.
- Easy construction: Methods are simple and do not require specialized machinery.
- Time-saving: Faster to build compared to deep foundations.
- Adaptability: Suitable for a wide range of soils with good surface bearing capacity.
- Durability: Provides long-term stability when designed properly.
- Accessibility: Easy to inspect, repair, or strengthen if needed.
Factors Affecting Selection of Shallow Foundations
Choosing the right type of shallow foundation depends on several factors. Engineers consider:
- Soil bearing capacity near the surface
- Type of structure and expected load
- Depth of groundwater table
- Climatic conditions such as frost and moisture variations
- Cost of materials and labor
- Available construction technology
Construction Process of Shallow Foundations
The construction of shallow foundations in residential buildings follows a systematic process to ensure safety and durability.
- Site Investigation: Soil testing to determine bearing capacity and moisture content.
- Excavation: Removing soil up to the required foundation depth.
- Leveling and Compaction: Preparing a stable base by compacting the soil.
- Formwork and Reinforcement: Placing steel reinforcement where necessary.
- Concrete Placement: Pouring and curing concrete for required strength.
- Backfilling: Refilling excavated soil around the foundation for stability.
Common Problems in Shallow Foundations and Solutions
Even with advantages, shallow foundations may face issues if not properly designed.
- Settlement: Caused by weak soil, solved by soil stabilization or using raft foundation.
- Water Seepage: Waterproofing and drainage systems help prevent damage.
- Frost Action: In cold regions, increasing depth below frost line avoids heaving.
- Soil Shrinkage and Swelling: Controlled by proper compaction and soil replacement.
FAQs on Shallow Foundations in Residential Buildings
What is the depth range of shallow foundations in residential buildings?
The depth usually ranges between 1 to 3 meters depending on soil type and load requirements.
Which type of shallow foundation is most common for houses?
Strip footings and spread footings are most common for residential buildings due to their simplicity and cost-effectiveness.
Can shallow foundations be used on weak soils?
Yes, but raft foundations are preferred for weak soils because they distribute loads over a larger area.
How do engineers decide which shallow foundation to use?
Engineers base the decision on soil test results, structural loads, and site conditions.
What are the limitations of shallow foundations in residential buildings?
They are not suitable for very weak soils, high-rise structures, or sites with high groundwater levels.
Conclusion
Shallow foundations in residential buildings are a practical and economical solution for ensuring structural stability. By choosing the right type—whether spread footing, strip footing, raft foundation, or combined footing—engineers can balance safety, cost, and durability. With proper soil investigation, careful design, and quality construction, shallow foundations provide long-lasting support for houses and small buildings. Their advantages of affordability, easy construction, and adaptability make them the preferred choice in residential construction worldwide.
