Foundations are the cornerstone of any structure, serving to transfer the weight of the building safely to the ground. When the surface soil lacks the strength to support heavy loads, deep foundations, particularly pile foundations, come into play. This article explores the details, types, construction processes, and applications of pile foundations in civil construction
Table of Contents
What is a Pile Foundation?

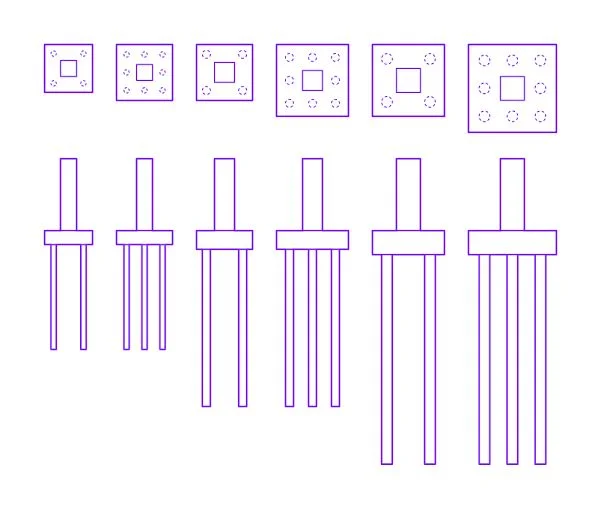

A pile foundation is a type of deep foundation comprising long, slender columns typically made of concrete, steel, or timber. These piles are driven deep into the ground to transfer structural loads either through end bearing or skin friction.
Pile foundations are indispensable in construction scenarios where shallow soils are weak or compressible. By transferring loads to deeper, more stable soil layers, these foundations ensure the safety and longevity of structures.
Why Use Pile Foundations?
Pile foundations are particularly useful under the following conditions:
- High groundwater levels.
- Uneven or heavy loads from the structure.
- When shallow soils are unsuitable for load-bearing.
- Locations prone to soil erosion, such as riverbeds or seashores.
- Nearby deep drainage systems or canals.
Types of Pile Foundations
Pile foundations are classified based on their function, materials, and installation methods.
Classification Based on Function
Pile foundations are essential in transferring structural loads to deeper, stable soil layers. Depending on their purpose, pile foundations can be classified into several types. Each serves a unique function in construction projects, making it crucial to choose the right one. Here’s a detailed look at the classification of pile foundations based on function.
1.What Is Sheet Piles
Sheet piles are primarily used to provide lateral support rather than vertical load-bearing. They are thin, interlocking walls made of materials like steel, concrete, or wood. These piles resist lateral pressures from loose soils, water, or nearby structures.
Applications:
- Retaining walls.
- Shoreline protection.
- Cofferdams for underwater construction.
- Isolating foundation trenches.
Advantages:
- Prevent soil erosion.
- Offer flexibility in temporary and permanent constructions.
Limitations:
- Do not bear vertical loads.
2. What Is Load-Bearing Piles
Load-bearing piles are designed to transfer vertical loads from the structure to the deeper, stable soil layers. They support heavy structures and are suitable when the surface soil cannot bear the weight.
Key Mechanisms:
- End-Bearing: Transmit loads through the pile tip to a strong soil or rock layer.
- Friction: Utilize friction along the pile’s surface to transfer loads.
Applications:
- Skyscrapers.
- Bridges.
- Industrial facilities.
Advantages:
- High load capacity.
- Suitable for various soil conditions.
3. What Is End-Bearing Piles
End-bearing piles work like columns, transferring the entire load to a strong soil or rock layer at the base. These piles are commonly used in areas with distinct layers of weak and strong soils.
How They Work:
- The pile tip rests on a stable layer.
- Load is transmitted directly to this layer.
Advantages:
- Precise load transfer.
- Ideal for areas with reliable deep soil layers.
Limitations:
- Requires accurate soil testing to locate strong layers.
4. What Is Friction Piles
Friction piles rely on the frictional resistance between the pile surface and the surrounding soil to transfer loads. They are suitable for soils where strong layers are deep or absent.
Key Features:
- The pile’s surface area determines its load capacity.
- Friction is developed along the pile’s length.
Applications:
- Sandy or clayey soils.
- Structures requiring uniform load distribution.
Advantages:
- Can be used for various soil conditions.
- Does not rely on reaching a hard layer.
Limitations:
- May require longer or larger piles for higher loads.
5. Soil Compactor Piles
Unlike other types, soil compactor piles do not carry direct structural loads. Instead, they improve soil strength by compacting it. This increases the soil’s load-bearing capacity.
How They Work:
- Piles are driven into the ground at close intervals.
- This densifies and stabilizes the soil.
Applications:
- Preparing soil for shallow foundations.
- Enhancing soil stability for heavy loads.
Advantages:
- Economical solution for weak soils.
- Reduces settlement risks.
Limitations:
- Not suitable for direct load-bearing.
Classification Of Pile Foundations Based on Materials
Pile foundations are a vital part of construction, providing support and stability to structures built on weak or unstable soil. The classification of pile foundations based on materials involves the type of material used in their construction and the method of installation. This classification ensures that the right type of pile is selected for specific site conditions and load requirements. Let’s explore the major types of pile foundations based on materials.
1. What Is Timber Piles
Timber piles are among the oldest types of pile foundations, primarily used in areas with abundant wood resources. These piles are often treated with preservatives to enhance durability and resist decay.
Key Features:
- Made of natural wood.
- Typically used for lightweight structures.
- Lengths range between 20 to 30 times their top diameter.
Advantages:
- Economical and easy to handle.
- Can be cut to desired lengths after installation.
- Suitable for areas with minimal exposure to decay or pests.
Disadvantages:
- Limited lifespan if not submerged or treated.
- Vulnerable to rot, termites, and marine borers.
- Not suitable for end-bearing applications in deep foundations.
- Used below water levels; economical and easy to install.
- Lifespan: ~30 years if treated with preservatives.
2. What Is Concrete Piles
Concrete piles are a popular choice for medium to heavy structures due to their high strength and durability. These piles can be further classified into two types: pre-cast concrete piles and cast-in-place concrete piles.
a) Pre-Cast Concrete Piles
These piles are manufactured off-site and transported to the construction site. They are typically reinforced with steel for added strength.
Advantages:
- High quality and controlled manufacturing.
- Suitable for underwater applications.
- Immediate loading after installation.
Disadvantages:
- Requires heavy machinery for transportation and installation.
- Fixed lengths limit flexibility.
- Risk of damage during handling.
b) Cast-in-Place Concrete Piles
These piles are constructed on-site by boring holes into the ground and filling them with fresh concrete.
Advantages:
- Flexible lengths and diameters.
- No risk of damage during transport.
- Adaptable to varying soil conditions.
Disadvantages:
- Requires careful site preparation.
- Installation can be challenging in areas with high groundwater levels.
3. What Is Steel Piles
Steel piles are often used for deep foundations and areas where soil penetration is difficult. They are made from steel sections like I-beams, H-beams, or hollow pipes and are sometimes filled with concrete for added strength.
Key Features:
- Thin cross-sections for easier soil penetration.
- Can reach great depths.
- Used in both end-bearing and friction pile applications.
Advantages:
- High strength-to-weight ratio.
- Easy to splice for greater lengths.
- Durable and capable of carrying heavy loads.
Disadvantages:
- Prone to corrosion, especially in marine environments.
- More expensive than other materials.
- May deviate during installation in soft soils.
4. What Is Composite Piles
Composite piles are made by combining two or more materials to capitalize on the strengths of each. A common combination includes steel and concrete or concrete and timber.
Key Features:
- Used when a single material doesn’t meet all structural requirements.
- The upper portion is often made of concrete, while the lower portion uses a different material like timber or steel.
Advantages:
- Combines the benefits of multiple materials.
- Suitable for various soil conditions.
- Economical for certain applications.
Disadvantages:
- Installation can be complex due to material transitions.
- Maintenance and inspection are more challenging.
5. What Is Other Specialized Piles
In some cases, innovative materials like fiberglass or plastic are used to create piles for specific needs, such as lightweight construction or corrosion resistance. While not as common as traditional materials, these specialized piles have niche applications in modern construction.
Advantages:
- Lightweight and corrosion-resistant.
- Environmentally friendly options available.
Disadvantages:
- Limited load-bearing capacity.
- Higher material costs.
Pile Foundation Construction Process
The pile foundation construction process is a critical aspect of civil engineering, designed to ensure the stability and strength of structures built on weak or challenging soils. This type of deep foundation transfers heavy structural loads to deeper, stable soil layers through slender columns known as piles.
Why Choose Pile Foundations?
Pile foundations are used when shallow soil layers lack the necessary strength to support the weight of a structure. These foundations transfer loads to deeper soil layers with higher bearing capacities.
Common scenarios for pile foundation use include:
- High groundwater levels.
- Weak or compressible surface soils.
- Uneven load distribution in structures.
- Sites near water bodies or areas prone to soil erosion.
Steps in Pile Foundation Construction
The pile foundation construction process involves a series of systematic steps to ensure the foundation meets structural requirements.
1. Site Investigation
Before beginning construction, a thorough site investigation is essential. This step involves testing the soil to determine:
- Soil type and bearing capacity.
- Depth of stable soil layers.
- Groundwater levels.
Geotechnical engineers perform soil testing using methods like boreholes, standard penetration tests, and laboratory analysis. This data helps design the most suitable pile foundation.
2. Design and Planning
Once the soil investigation is complete, engineers design the pile foundation based on factors such as:
- Load-bearing requirements.
- Soil conditions.
- Project cost and timeline.
The design specifies the type, length, and diameter of the piles. It also outlines the installation method and equipment needed.
3. Selection of Pile Type
Choosing the right type of pile foundation is crucial. The choice depends on soil conditions, load requirements, and project budget. Common types of piles include:
- End-Bearing Piles: Transfer loads to a stable layer beneath the pile tip.
- Friction Piles: Rely on friction between the pile surface and surrounding soil.
- Composite Piles: Combine materials like steel and concrete for added strength.
4. Mobilization of Equipment
Before starting construction, specialized equipment is mobilized to the site. Key equipment includes:
- Pile drivers for driven piles.
- Drilling rigs for bored piles.
- Concrete mixers and pumps for cast-in-place piles.
Proper equipment setup ensures smooth and efficient pile installation.
5. Pile Installation
The pile installation process varies depending on the type of pile and installation method.
Driven Piles
Driven piles are installed by hammering them into the ground using a pile driver. This method displaces soil, creating a compacted area around the pile.
Key steps:
- Position the pile driver above the pile.
- Use a hammer or vibration to drive the pile into the ground.
- Monitor alignment and depth to ensure accuracy.
Bored Piles
Bored piles are constructed by drilling a hole, filling it with concrete, and reinforcing it with steel.
Key steps:
- Drill a hole to the desired depth using a rotary drilling rig.
- Insert a steel reinforcement cage into the hole.
- Pour concrete into the hole and allow it to set.
Screw Piles
Screw piles are installed by rotating them into the ground like screws. This method is quick and generates minimal noise and vibration.
6. Quality Control During Installation
Quality control is critical to ensure the piles meet design specifications. Engineers conduct tests to verify:
- Pile alignment and depth.
- Bearing capacity and load distribution.
- Material strength and integrity.
Common tests include pile integrity tests, static load tests, and dynamic load tests.
7. Finishing and Cleanup
After the piles are installed and tested, the site is cleaned and prepared for the next construction phase. The pile heads are trimmed to the required level, and any excess material is removed.
Advantages and Disadvantages of Pile Foundations
Pile foundations offer numerous advantages in construction, particularly in challenging soil conditions. They provide strong load-bearing capacity, minimize settlement, and ensure stability for structures. Ideal for areas with high groundwater levels or weak soils, pile foundations are durable, versatile, and a reliable solution for long-lasting structural support.
Advantages of Pile Foundations
1. Suitable for Weak or Compressible Soils
One of the main advantages of pile foundations is their ability to support structures on weak or compressible soils. By transferring loads to deeper and more stable layers, pile foundations ensure the safety and longevity of the structure.
2. High Load-Bearing Capacity
Pile foundations are designed to handle heavy loads, making them ideal for bridges, skyscrapers, and industrial structures. They can support both vertical and lateral loads, ensuring stability even under challenging conditions.
3. Versatility in Construction
Pile foundations can be used in various soil conditions, including loose sand, soft clay, and even waterlogged areas. This versatility makes them a reliable choice for a wide range of construction projects.
4. Deep Penetration for Stability
Pile foundations penetrate deep into the ground, reaching stable soil layers or rock. This deep penetration provides excellent resistance against settlement, uplift forces, and lateral movements.
5. Adaptability to Site Conditions
Pile foundations can be customized based on site requirements. For instance, different materials and construction methods can be used depending on the soil type, load requirements, and environmental factors.
6. Minimized Settlement Issues
By transferring loads to deeper soil layers, pile foundations reduce the risk of uneven settlement, which is crucial for maintaining the integrity of the structure.
7. Resistance to Scouring and Erosion
For structures near rivers, seashores, or areas prone to water erosion, pile foundations provide excellent resistance against scouring and maintain stability even in challenging environments.
8. Suitable for High Groundwater Levels
In areas with high groundwater levels, pile foundations are often the best solution. They remain unaffected by water infiltration, ensuring durability and structural integrity.
9. Long-Lasting Durability
When constructed with high-quality materials and proper techniques, pile foundations offer exceptional durability, making them a cost-effective solution in the long run.
Disadvantages of Pile Foundations
1. High Initial Costs
One of the significant disadvantages of pile foundations is their higher initial cost compared to shallow foundations. The need for specialized equipment, materials, and skilled labor adds to the overall expense.
2. Requires Specialized Equipment
The installation of pile foundations demands advanced equipment such as pile drivers and boring machines. This requirement can increase project costs and limit accessibility in remote areas.
3. Noise and Vibration During Installation
Driving piles into the ground generates noise and vibrations, which can disturb nearby residents and structures. This is especially problematic in urban or sensitive areas.
4. Environmental Concerns
The construction of pile foundations can have environmental impacts, such as soil displacement, noise pollution, and potential damage to aquatic ecosystems in waterlogged areas.
5. Difficulties in Inspection and Maintenance
Once installed, inspecting and maintaining pile foundations can be challenging. Any repairs or reinforcements require extensive effort and specialized techniques.
6. Corrosion in Steel Piles
Steel piles, while strong and versatile, are prone to corrosion, especially in waterlogged or coastal areas. This requires additional protective measures, which can increase costs.
7. Risk of Deviations During Installation
Driving piles into the ground can sometimes lead to deviations from the intended path due to underground obstacles or variations in soil density. This can compromise the alignment and effectiveness of the foundation.
8. Limited Accessibility in Certain Locations
In areas with restricted access or hard-to-reach sites, the installation of pile foundations can be difficult and time-consuming.
Cost of Pile Foundations
The pile foundation cost depends on several factors, including:
- Type of pile material (timber, concrete, or steel).
- Soil conditions and depth required.
- Construction method (pre-cast or cast-in-place).
- Location and accessibility of the site.
A typical pile foundation project may cost more than shallow foundations due to equipment, material, and labor requirements. However, the long-term benefits often outweigh the initial investment.
Comparison of Pile Foundation Types
| Pile Type | Material | Usage | Advantages | Disadvantages |
|---|---|---|---|---|
| Timber Piles | Timber | Below water levels | Economical, easy to install | Prone to decay, shorter lifespan |
| Pre-Cast Concrete | Concrete | Heavy-load structures | High strength, quality-controlled | Hard to adjust length post-casting |
| Cast-in-Place Concrete | Concrete | On-site customization | Flexible length, no transport needed | Time-consuming, quality control challenges |
| Steel Piles | Steel | Deep penetration needs | High load capacity, easy splicing | Corrosion risk, high cost |
Conclusion Of Pile Foundation
Pile foundations are a cornerstone of modern civil construction, offering unparalleled support and durability for structures built on weak soils. By understanding the types of pile foundations, their construction methods, and advantages, engineers and builders can ensure safe and efficient foundation solutions.
FAQ About Pile Foundations
1. What is a pile foundation?
A pile foundation is a type of deep foundation used to transfer the load of a structure to deeper, more stable layers of soil. Piles are long, slender columns made of materials such as concrete, steel, or timber, which are driven or drilled into the ground to provide support for buildings and other structures.
2. When should pile foundations be used?
Pile foundations are typically used when the surface soil cannot support the structure’s weight. This includes situations where:
- The surface soil is too weak or compressible.
- The groundwater level is high.
- The structure will impose heavy loads or uneven settlement.
- The construction site is near bodies of water or in regions prone to scouring.
3. What are the types of pile foundations?
There are several types of pile foundations, including:
- End-bearing piles: These transfer the load through the pile tip, resting on strong soil or rock.
- Friction piles: These transfer the load through friction along the length of the pile.
- Sheet piles: Used to resist lateral forces, such as water pressure or soil erosion.
- Timber, concrete, and steel piles: Piles made of different materials to suit specific load-bearing or environmental conditions.
4. What factors affect the cost of pile foundations?
The cost of pile foundations depends on several factors, including:
- Type of pile: Concrete, steel, and timber piles each have different costs.
- Soil conditions: Difficult or deep soil layers increase costs.
- Pile length and diameter: Longer or larger piles require more materials and labor.
- Installation method: Driven piles are typically cheaper than bored piles.
- Labor and equipment costs: Skilled labor and specialized equipment may increase costs.
- Location: Projects in remote or challenging locations may incur higher logistical costs.
5. What is the difference between driven piles and bored piles?
- Driven piles are hammered or driven into the ground using a pile driver. This method is quicker and less expensive but may not be suitable for all soil conditions.
- Bored piles are drilled into the ground and then filled with concrete. This method is more expensive but is ideal for challenging soil conditions or where vibrations from driven piles may affect nearby structures.
6. How deep do pile foundations go?
The depth of pile foundations depends on the soil conditions and the load requirements of the structure. Piles are typically driven or drilled to a depth where they can reach stable soil or rock layers capable of bearing the load of the building. The depth can range from a few meters to over 30 meters, depending on the site.
7. What are the advantages of pile foundations?
Pile foundations offer several advantages:
- Suitable for weak or compressible soils.
- Can support heavy loads for large structures.
- Resistant to settlement and shifting, ensuring the stability of the structure.
- Effective in high water table areas or near rivers, lakes, or coastal areas.
- Long-lasting and able to withstand environmental challenges like corrosion (especially when using materials like steel or concrete).
8. What are the disadvantages of pile foundations?
Despite their advantages, pile foundations also have some drawbacks:
- Higher initial costs compared to shallow foundations.
- Complex installation requiring skilled labor and specialized equipment.
- Disruption during installation, such as noise and vibration (particularly with driven piles).
- Difficulties in modifying piles once installed, especially if the length or number of piles needs to be adjusted.
9. What materials are used for pile foundations?
Pile foundations can be made from several materials, depending on the site’s requirements:
- Concrete: Precast or cast-in-place concrete piles are strong, durable, and widely used.
- Steel: Steel piles are used for deep foundations and can bear heavy loads, but they are more prone to corrosion unless treated.
- Timber: Timber piles are used in areas with mild soil conditions and are more economical but less durable than concrete or steel.
- Composite: A combination of materials (like concrete and steel) used for specific project requirements.
10. Can pile foundations be used in marine or underwater construction?
Yes, pile foundations are commonly used in marine or underwater construction, such as for bridges, piers, and offshore platforms. Steel piles are often preferred in these conditions due to their durability and resistance to corrosion. Special coatings or treatments are also used to protect piles from the harsh marine environment.
11. How long do pile foundations last?
The lifespan of pile foundations depends on the materials used and the environmental conditions. Concrete and steel piles, when properly maintained, can last several decades—often over 50 years. Timber piles have a shorter lifespan and may last between 20-30 years unless treated with preservatives to protect against rot and pests.
12. Can pile foundations be used in seismic areas?
Yes, pile foundations can be designed to withstand seismic activity. In areas prone to earthquakes, pile foundations can be reinforced with additional steel or other materials to provide stability during ground movement. The flexibility and strength of pile foundations make them an excellent choice in seismic zones.
13. How do you determine the type of pile foundation to use?
The choice of pile foundation depends on:
- Soil conditions: Soil strength and type (e.g., soft clay, rock).
- Load requirements: The size and type of the structure being built.
- Groundwater levels: High water tables may necessitate specific types of piles.
- Environmental factors: Such as proximity to water bodies or the risk of corrosion.
- Cost considerations: Different types of piles come with varying costs.
A geotechnical engineer typically conducts soil tests and analyzes these factors to recommend the appropriate type of pile foundation.
14. Are pile foundations environmentally friendly?
Pile foundations can be environmentally friendly if proper materials and construction methods are used. For example, concrete piles can be made using recycled materials, and steel piles can be reused or recycled at the end of their life. Additionally, pile foundations can reduce the amount of excavation needed compared to shallow foundations, preserving the natural environment.
15. Do pile foundations require maintenance?
Pile foundations generally require minimal maintenance, especially when using durable materials like concrete or steel. However, regular inspections should be conducted to check for signs of corrosion, settlement, or other issues. In marine environments, additional maintenance may be necessary to prevent damage from corrosion or marine life.
