Grade beam vs plinth beam is a common topic in building construction because both beams are constructed near ground level but serve different structural purposes. Although they may look similar, their function, location, load behavior, and design requirements are different. Understanding the difference between grade beam and plinth beam helps in proper structural planning and avoids construction mistakes.
What Is a Grade Beam
A grade beam is a reinforced concrete beam constructed at ground level or just below ground level. It directly transfers the load of walls or columns to the foundation, piles, or footings. Grade beams are commonly used when soil bearing capacity is low or when pile foundations are provided. They help distribute loads evenly and reduce differential settlement.
What Is a Plinth Beam
A plinth beam is a reinforced concrete beam provided at plinth level, which is the level between the ground floor and foundation. Its main purpose is to tie columns together and distribute wall loads uniformly. Plinth beams also help prevent cracks due to differential settlement and act as a barrier against soil movement.
Main Difference Between Grade Beam and Plinth Beam
The primary difference between grade beam and plinth beam lies in their function and load transfer mechanism. A grade beam directly carries structural loads and transfers them to foundations, while a plinth beam mainly acts as a tie beam to distribute loads and control cracks.

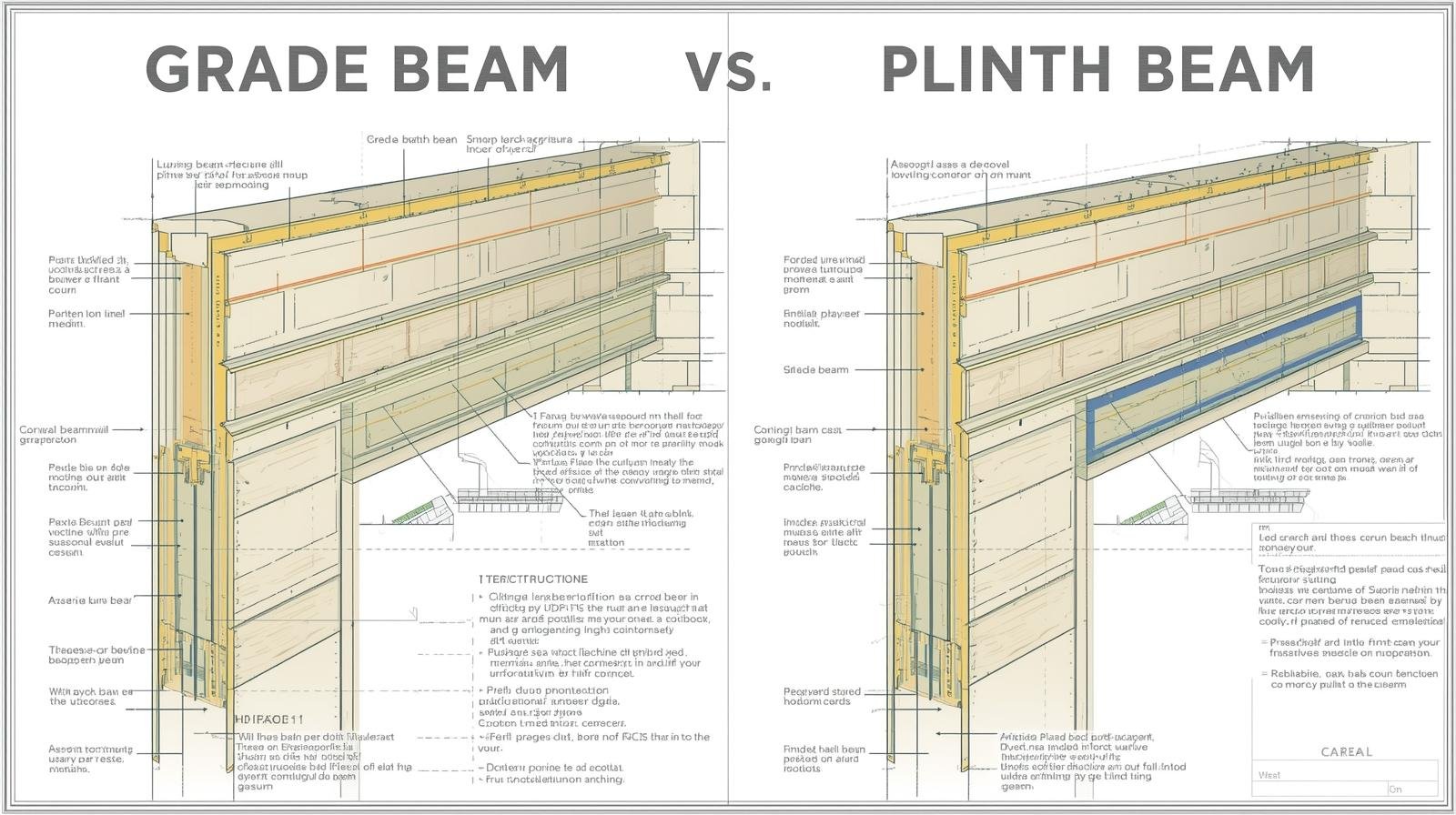

Grade Beam vs Plinth Beam – Comparison Table
| Aspect | Grade Beam | Plinth Beam |
|---|---|---|
| Location | At or below ground level | At plinth level above ground |
| Main Function | Transfers load to foundation or piles | Ties columns and supports walls |
| Load Carrying Role | Structural load-bearing element | Mainly load distribution and crack control |
| Foundation Dependency | Often connected to piles or footings | Rests on foundation walls or columns |
| Use in Weak Soil | Commonly used | Less effective alone |
Structural Role and Load Behavior
Grade beams are designed to carry heavy loads from walls or columns and transfer them to piles or footings. They are especially useful in pile foundations where walls cannot directly rest on soil. Plinth beams, on the other hand, mainly resist bending due to wall loads and help maintain structural integrity at plinth level.
Design Considerations
Design of grade beams focuses on bending, shear, and load transfer to foundations. Reinforcement is designed based on applied loads and span between supports. Plinth beam design considers wall loads, span between columns, and crack control requirements. Both beams require proper reinforcement detailing to ensure durability and performance.
Important Design Factors
- Type and magnitude of loads
- Soil condition
- Span length
- Reinforcement detailing
- Connection with columns and foundation
Construction Level and Placement
Grade beams are usually constructed at ground level or slightly below and may remain partially buried. Plinth beams are always constructed above ground at plinth height and are visible after construction. Proper alignment and level control are important for both beams to avoid structural issues.
Uses of Grade Beam
Grade beams are widely used in buildings with pile foundations, weak soil conditions, and uneven ground. They support walls and columns where direct footing is not feasible. Grade beams are also used to bridge gaps between pile caps.
Uses of Plinth Beam
Plinth beams are commonly used in residential and commercial buildings to support masonry walls and tie columns together. They help reduce differential settlement effects and provide a firm base for superstructure walls.
FAQs on Grade Beam vs Plinth Beam
Is grade beam stronger than plinth beam
Grade beams are generally designed to carry higher structural loads compared to plinth beams.
Can plinth beam replace grade beam
No, plinth beam cannot replace a grade beam because both serve different structural purposes.
Is plinth beam compulsory in buildings
Plinth beams are highly recommended, especially in areas with expansive soil, to control cracks and improve stability.
Are grade beams used without piles
Yes, grade beams can be used with shallow foundations, but they are most effective when used with pile foundations.
Conclusion
The difference between grade beam and plinth beam lies mainly in their function, location, and load behavior. Grade beams play a critical role in transferring loads to foundations, especially in weak soil conditions, while plinth beams help distribute loads and improve structural stability at plinth level. Using the correct beam type at the right location ensures safety, durability, and long-term performance of the structure.
