Understanding brickwork dimensions is fundamental for anyone involved in civil engineering, road construction, or infrastructure design. Brickwork dimensions refer to the standardized sizes of bricks and how they are laid out to form walls, pavements, and other structures. These dimensions affect the strength, durability, and appearance of brickwork and are critical in ensuring efficient use of materials and labor.
Bricks are one of the oldest and most common building materials, widely used due to their affordability and strength. The dimensions of bricks and the way they are arranged directly impact the quality of the construction. In geotechnical engineering, knowing brickwork dimensions helps in evaluating soil-structure interaction and foundation stability. This article will explore the standard brick sizes, types of brickwork, their uses, benefits, and how proper soil testing methods and load-bearing capacity assessments influence brickwork quality.
Standard Brickwork Dimensions
The size of bricks varies depending on the country and the type of brick used, but there are some common standard dimensions globally. Standard brick dimensions are designed to fit together with mortar joints, creating a uniform and stable structure.
Typical Brick Sizes

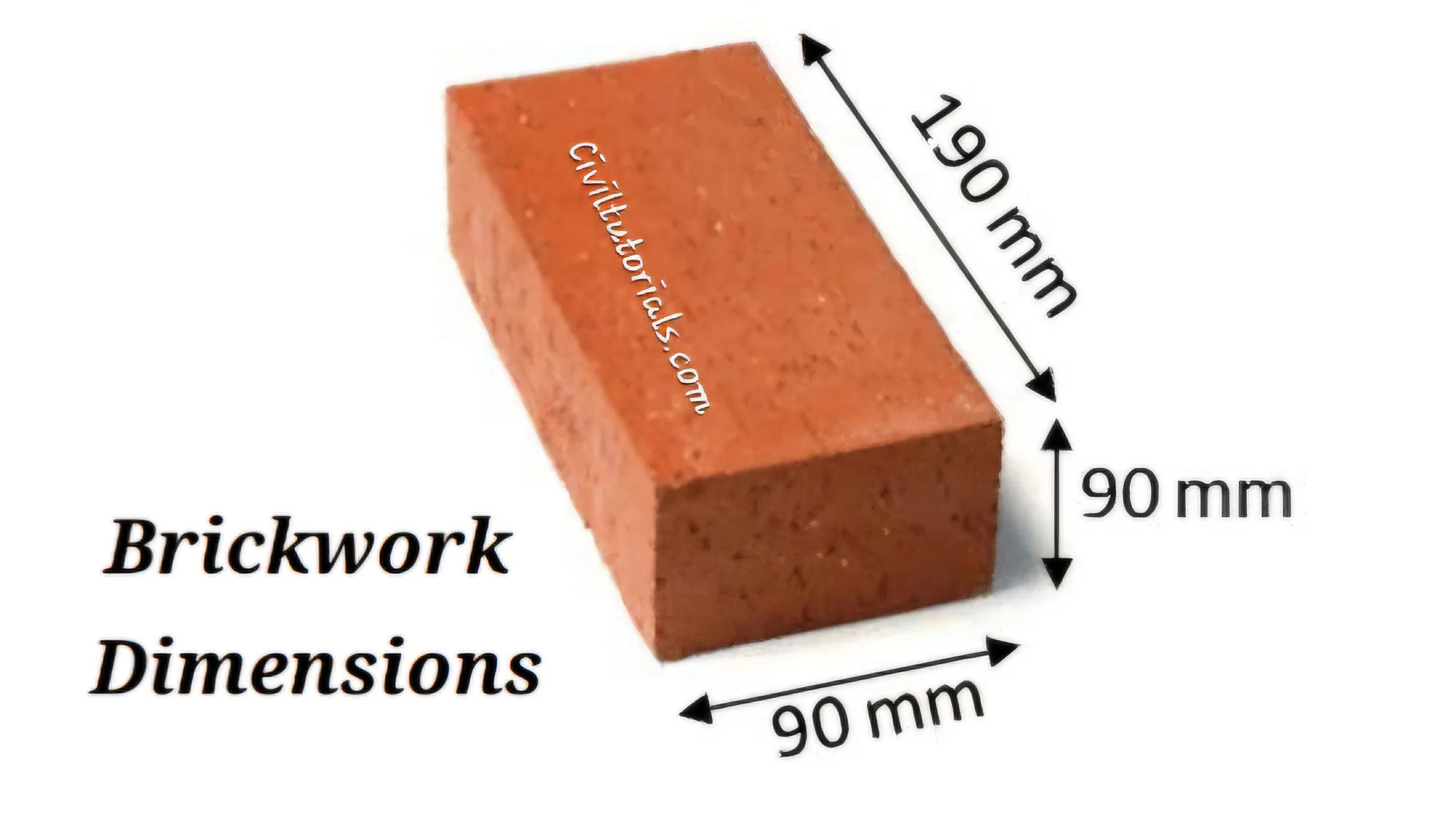

- Modular Brick: 190 mm × 90 mm × 57 mm
- Standard Brick: 230 mm × 110 mm × 76 mm
- King Size Brick: 230 mm × 110 mm × 90 mm
- Queen Size Brick: 230 mm × 114 mm × 70 mm
These dimensions include allowances for mortar thickness, typically around 10 mm. The length, width, and height of bricks are critical in designing walls and pavements with proper alignment and strength.
Why Are Brickwork Dimensions Important?
Correct brickwork dimensions ensure uniformity in construction, reducing waste and increasing efficiency. They also affect the:
- Structural integrity of walls and foundations
- Load-bearing capacity of the brickwork
- Compatibility with civil engineering tools and machinery
- Accuracy in foundation testing and site measurements
Types of Brickwork Based on Dimensions and Bond Patterns
Brickwork is not just about bricks but also how they are laid out. Different bond patterns use bricks of varying dimensions and orientations, affecting strength and aesthetics.
1. Stretcher Bond
This is the most common type where bricks are laid lengthwise with joints staggered. It’s used mainly for walls one brick thick.
2. Header Bond
Bricks are laid with their ends facing outward, bonding the wall’s width. Used for walls that are one brick thick or more.
3. English Bond
Alternate courses of stretcher and header bonds, offering good strength for load-bearing walls.
4. Flemish Bond
Each course alternates stretcher and header bricks, producing a decorative pattern with good strength.
5. Stack Bond
Bricks are stacked directly on top of each other without staggering. Used mainly for decorative walls or partitions.
These bond types rely heavily on consistent brickwork dimensions to maintain structural integrity.
Uses of Brickwork Dimensions in Construction
Brickwork dimensions and bond patterns are essential in various construction projects:
- Building Walls: Residential and commercial buildings rely on precise brick sizes for load distribution.
- Pavements and Pathways: Brick dimensions influence interlocking and durability in pedestrian and vehicle paths.
- Retaining Walls: Requires strong bond patterns and consistent brick dimensions for soil retention.
- Geotechnical Engineering: Foundation support and soil-structure interaction depend on proper brickwork dimensioning.
- Road Construction: Bricks used in paving require exact dimensions to withstand traffic loads and provide long-lasting surfaces.
Benefits of Maintaining Proper Brickwork Dimensions
Using standardized brick dimensions brings several benefits to construction projects:
- Improved Structural Strength: Uniform brick sizes and bonds distribute loads evenly.
- Cost Efficiency: Reduces wastage of bricks and mortar during construction.
- Ease of Construction: Simplifies brick laying and speeds up the process.
- Enhanced Durability: Minimizes cracks and structural failures over time.
- Better Aesthetic Appeal: Consistent dimensions result in neat, attractive brickwork.
Table: Common Brick Sizes and Uses
| Brick Type | Dimensions (mm) | Common Uses | Strength & Durability |
|---|---|---|---|
| Modular Brick | 190 × 90 × 57 | Residential walls, partitions | Moderate, easy to work with |
| Standard Brick | 230 × 110 × 76 | Commercial buildings | Strong, widely used |
| King Size Brick | 230 × 110 × 90 | Heavy load-bearing walls | Very strong and durable |
| Queen Size Brick | 230 × 114 × 70 | Decorative and special walls | Good balance of strength |
Importance of Soil Testing and Load-Bearing Capacity in Brickwork
Accurate soil strength tests and subgrade evaluation are crucial before starting brickwork construction. The soil must support the weight of the brick structure without excessive settlement. Methods such as the California Bearing Ratio (CBR) test help determine if the soil can handle the load. Understanding these parameters ensures that the foundation and brickwork remain stable over time.
Frequently Asked Questions (FAQs) About Brickwork Dimensions
What is the standard size of a brick in construction?
The most common standard brick size is 230 mm × 110 mm × 76 mm, including mortar thickness allowances.
Why are brickwork dimensions important?
They ensure structural stability, ease of construction, and reduce material wastage.
Can brick sizes vary in different countries?
Yes, brick sizes differ based on regional standards, but most countries follow standardized dimensions for consistency.
What is the best bond pattern for strong walls?
English bond is considered one of the strongest patterns for load-bearing brick walls.
How does soil testing affect brickwork?
Soil testing determines the load-bearing capacity, ensuring the foundation can support the brick structure.
Conclusion
Understanding brickwork dimensions is key to successful construction projects. From selecting the right brick size to choosing appropriate bond patterns, every detail impacts the strength, durability, and cost-effectiveness of the final structure. Incorporating proper soil testing methods and evaluating the load-bearing capacity ensures that the brickwork will stand the test of time. Whether you are working in civil engineering, road construction, or foundation testing, mastering brickwork dimensions can significantly improve the quality of your project.
