Total Station Survey Methods: Complete Guide for Beginners

Surveying is the backbone of civil engineering and construction projects. Whether you are designing a highway, constructing a bridge, or planning a township, accurate measurement of land and structures is essential. Over the years, surveying methods have advanced from the traditional chain and compass to sophisticated digital equipment. Among these innovations, the Total Station has become one of the most widely used and reliable instruments.

In this guide, we will cover the total station survey methods in detail, its components, types of surveys, step-by-step procedures, and best practices. If you are a beginner in surveying, this article will give you a complete foundation to understand and use total stations effectively.

What is a Total Station?

A Total Station is an advanced electronic survey instrument that combines three major functions:

  1. Electronic Theodolite – for measuring horizontal and vertical angles.
  2. Electronic Distance Measurement (EDM) device – for measuring slope distances using electromagnetic waves.
  3. Microprocessor with Data Storage – for processing and storing field data.

In simple words, it is a modern instrument that integrates theodolite and EDM into a single unit, making surveying faster, more accurate, and more efficient.

Importance of Total Station Surveying in Civil Engineering

The importance of total station surveying cannot be overstated. Some of the key benefits include:

  • High accuracy in measuring both angles and distances.
  • Quick data collection compared to manual methods.
  • Digital storage and processing, which reduces errors.
  • Widely applicable in road projects, building layouts, topographic mapping, and geodetic studies.

For civil engineers, mastery of total station surveying is almost mandatory in today’s competitive infrastructure industry.

Components of a Total Station Survey Instrument

To understand how a total station works, let’s break down its main components:

Electronic Theodolite

This part measures horizontal and vertical angles with extreme precision. The electronic theodolite ensures accurate alignment and orientation.

Distance Measurement Device (EDM)

The EDM uses infrared or laser beams to calculate distances between the instrument and a target point (reflector or prism). This enables quick and error-free distance measurement.

Microprocessor and Data Storage

Modern total stations come with built-in microprocessors that calculate coordinates (X, Y, Z), process data, and store survey records. This feature minimizes manual calculations and mistakes.

Display and Control Unit

The display screen and keypad allow the surveyor to operate the instrument, input commands, and view measured data instantly.

Types of Total Station Surveys

Depending on project requirements, total stations are used for different types of surveys:

Geodetic Surveys

Conducted over large areas to determine precise positions on the Earth’s surface. These are essential for national mapping and GPS integration.

Topographic Surveys

Used for mapping the natural and man-made features of an area. Civil engineers use them for planning roads, bridges, and urban layouts.

Construction Surveys

Applied directly on-site for layout and alignment of structures, excavation works, and road centrelines.

Control Surveys

Establishes control points or benchmarks that serve as reference points for all future surveys on a project site.

Preparing for a Total Station Survey

Before starting fieldwork, proper preparation is essential.

Site Reconnaissance

The surveyor visits the site to understand terrain conditions, obstacles, and possible instrument stations.

Selecting Survey Points

Stable, accessible, and visible points are chosen for setting up the total station and reflectors.

Calibration and Setup

The instrument should be calibrated regularly to maintain accuracy. Proper leveling and centering are done during setup.

Methods of Total Station Surveying

Different methods can be applied using a total station depending on project needs:

Traversing Method

A common method where survey points are connected in a series of straight lines. Used in road alignments and boundary surveys.

Resection Method

The position of the instrument is determined by observing angles and distances from three or more known points. Useful when the instrument cannot be set on a control point.

Intersection Method

Used to locate a point by measuring angles or distances from two known stations.

Radiation Method

The instrument is set up at one known station, and measurements are taken to multiple points radiating from it. Useful for topographic surveys.

Free Station Method

A flexible method where the instrument position is determined by measuring distances and angles from multiple known reference points.

Steps to Conduct a Total Station Survey

A beginner-friendly step-by-step process:

1. Setting up the Instrument

Mount the total station on a tripod, level it, and ensure it is centered over the survey point.

2. Measuring Horizontal and Vertical Angles

Aim at the target prism and record the angular values.

3. Measuring Distances

Use the EDM to measure slope distance, which is automatically converted into horizontal and vertical components.

4. Recording and Storing Data

All measurements are stored in the microprocessor and can later be transferred to a computer.

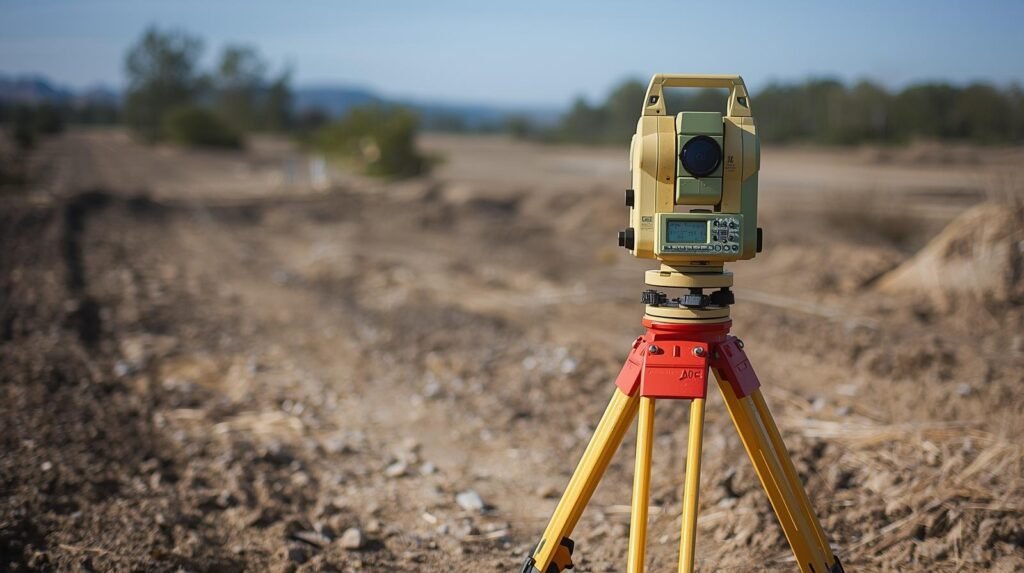

Total Station Survey Methods

Data Processing and Analysis

Once data is collected, the next step is processing:

Transferring Data to Software

Survey data is downloaded into CAD or GIS software for analysis and mapping.

Adjustments and Corrections

Errors due to instrument, environment, or human factors are corrected using software tools.

Generating Maps and Reports

Final outputs include maps, 3D models, and project reports essential for design and execution.

Advantages of Using Total Station Survey Instrument

Accuracy and Precision

Provides millimeter-level accuracy, far better than traditional instruments.

Efficiency and Speed

Reduces field time significantly by measuring angles and distances simultaneously.

Ease of Data Management

Digital storage eliminates manual recording errors and allows easy data transfer.

Challenges in Total Station Surveying

Even though total stations are powerful, some challenges exist:

Environmental Factors

Weather, temperature, and obstacles like buildings or trees can affect accuracy.

Equipment Limitations

Range and line-of-sight restrictions limit some applications.

Operator Skill Requirements

Beginners need proper training; otherwise, errors may occur in setup or operation.

Best Practices for Beginners

If you are just starting out, follow these tips:

Regular Calibration

Always calibrate your total station before major surveys.

Proper Site Selection

Choose stable and clear ground for setting up the instrument.

Backup and Data Security

Always save data in multiple formats to avoid loss.

Conclusion

The Total Station has transformed surveying into a faster, more accurate, and highly efficient process. For beginners in civil engineering and surveying, learning total station methods is a must. From traversing and resection to radiation and free station, each method has its unique applications. With practice and proper training, anyone can master this instrument and contribute to successful infrastructure projects.

FAQs

Q1. Can a total station be used without a prism?
Yes, modern reflectorless total stations can measure distances without a prism, though the range is shorter.

Q2. How accurate is a total station survey?
Typically within 2–5 mm, depending on instrument quality and environmental conditions.

Q3. Is total station surveying better than GPS?
Both have advantages. Total stations are highly accurate for short distances, while GPS is better for large-scale mapping.

Q4. How often should a total station be calibrated?
Ideally before every major project, or as recommended by the manufacturer.

Q5. What software is used for total station data processing?
Common software includes AutoCAD, Civil 3D, ArcGIS, and Leica Geo Office.
