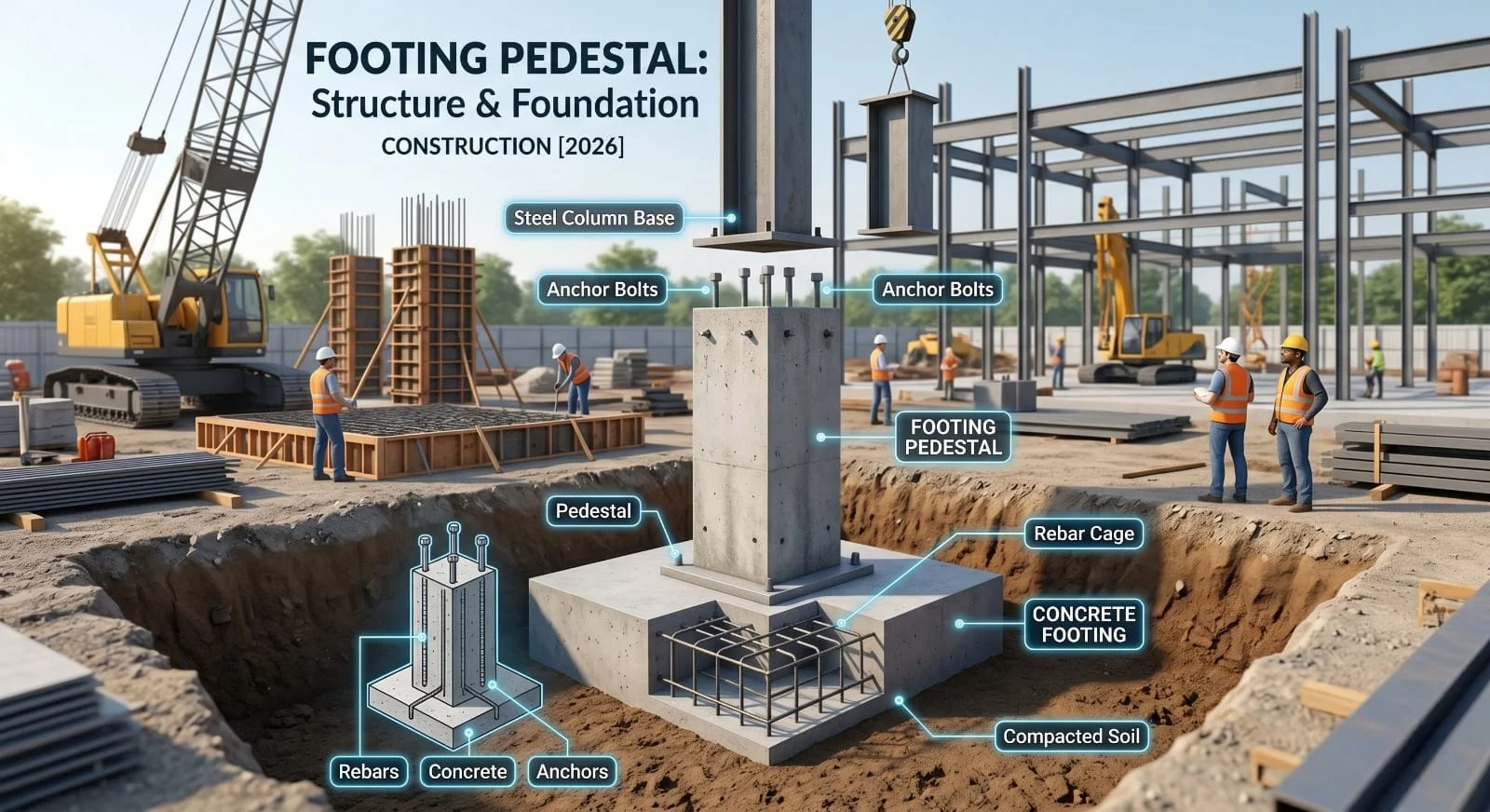

A footing pedestal is a short vertical structural element that transfers loads from columns or walls to the foundation footing below. These reinforced concrete blocks act as transition pieces between shallow foundations and the supported structural members. In simple terms, it works like a connecting link that safely passes the load from the upper structure down to the footing, ensuring stability and strength.
In modern construction, a footing pedestal also helps to lift the column a little bit off the ground, which keeps it from coming into direct contact with soil, moisture, and corrosion. This small rise is very important for making the structure last longer. It also makes it easier to keep columns in the right place while building, which is especially important for buildings with more than one floor and heavy-load structures.
Another important job of a footing pedestal is to spread the load. The pedestal spreads the load out over the footing instead of letting it act directly on a small area. This lowers the amount of stress in one area, which helps keep structures from being damaged or settling. Because of these benefits, footing pedestals are used a lot in residential, commercial, and industrial building.
Key Types of Footing Pedestals
The key types of footing pedestals are classified based on their shape, load conditions, and structural requirements. Each type is designed to ensure proper load transfer, stability, and compatibility with different construction needs.
1. Square/Rectangular Pedestals
Square and rectangular pedestals are the most widely used types in construction because of their simple design and strong load-bearing capacity. They provide a stable base for columns and ensure uniform load distribution, making them suitable for most residential and commercial structures.
- Most common shape for individual column supports
- Typical sizes: 1.5’×1.5′ to 3’×3′ (based on column load)
- Height usually 1-3 feet depending on frost depth/clearance needs
2. Circular Pedestals
Circular pedestals are specially designed for structures with round shapes, such as poles and circular columns. They provide uniform load distribution in all directions, which improves stability and makes them ideal for outdoor and vertical installations.
- Used with round columns or poles
- Common for light posts, flagpoles, and silo supports
- Diameter typically 6-12″ wider than the supported member
3. Stepped Pedestals
These pedestals are designed with step-like changes in width to match different column and footing sizes. This gradual transition helps in safely distributing heavy concentrated loads and improves overall structural stability, making them ideal for industrial structures and heavy equipment foundations.
- Feature width transitions to match different sized columns/footings
- Helps distribute heavy concentrated loads
- Common in industrial structures and heavy equipment bases
4. Sloped Pedestals
Sloped pedestals have inclined sides that are provided for both functional performance and visual appearance. They are commonly used in structures like bridges and marine works where design and load behavior require a different shape, and their construction needs careful formwork to achieve the desired slope and finish.
- Angled sides for aesthetic or functional requirements
- Often seen in bridge piers and marine structures
- Requires special formwork during construction
Primary Functions and Uses
Footing pedestals play a crucial role in both structural performance and practical construction needs. They not only help in safe load transfer but also improve durability, protection, and usability of the structure in different conditions.
Structural Purposes
The structural purposes of a footing pedestal focus on improving stability, protection, and load transfer in a structure. It helps in raising the column above ground level, which protects it from moisture and environmental damage. At the same time, it ensures proper load distribution from the column to the footing, reducing stress on the foundation. It also provides necessary clearance and protection, making the structure more durable and safe in different conditions.
✔ Elevates columns above ground moisture
✔ Provides proper clearance for utilities
✔ Distributes concentrated column loads
✔ Prevents frost heave in cold climates
✔ Offers protection against vehicular impact
Common Applications
Footing pedestals are widely used in different types of construction projects due to their versatility and strength. They provide a stable and elevated base for various structural and non-structural elements, ensuring proper load transfer and durability. From buildings to industrial setups and outdoor installations, pedestals play an important role in supporting different types of loads. Their use helps in improving safety, alignment, and long-term performance of the structure.
- Building Construction: Supports steel/RC columns
- Equipment Installation: Bases for heavy machinery
- Outdoor Structures: Light poles, signage supports
- Bridges/Trestles: Intermediate pier supports
- Tanks/Silos: Elevated foundation elements
Construction Specifications
Construction specifications of a footing pedestal define the standard requirements needed to ensure strength, stability, and durability. These specifications include dimensions, reinforcement details, and concrete quality, which are selected based on load conditions and site requirements. Following proper specifications helps in achieving safe load transfer and long-term structural performance. It also ensures consistency in construction and reduces the chances of structural failure.
Typical Dimensions
The table below shows the typical dimensions and specifications of a footing pedestal, including height, width, reinforcement, and concrete grade used in construction.
| Parameter | Range |
|---|---|
| Height | 1′-3′ |
| Width | 1.5×column size |
| Reinforcement | 4-8 vertical bars |
| Concrete Grade | M20-M25 |
Key Construction Steps
The construction of a footing pedestal involves a systematic process to ensure strength and durability. Each step, from excavation to curing, must be carried out carefully to achieve proper load transfer and structural stability. Following the correct sequence not only improves the quality of construction but also reduces the chances of defects or future failures. Proper workmanship and attention at every stage play a key role in the overall performance of the pedestal.
- Excavation: Dig below frost line (if applicable)
- Formwork: Install wooden/metal molds
- Reinforcement: Place vertical bars with ties
- Concreting: Pour in layers with vibration
- Curing: Maintain moisture for 7+ days
Advantages of Using Pedestals
Footing pedestals offer several advantages that improve both structural performance and construction efficiency. They help in protecting structural elements from damage while also making alignment, installation, and maintenance easier. Their use ensures better durability and long-term stability of the structure.
Structural Benefits
The structural benefits of using a footing pedestal mainly focus on improving durability, alignment, and overall performance of the structure. It helps in separating the column from direct soil contact, which reduces the risk of moisture damage and corrosion. At the same time, it ensures proper positioning and embedment of the column, making construction more accurate and stable. It also makes future inspection and maintenance easier by keeping the structural base accessible.
- Prevents direct soil-column contact
- Simplifies column alignment and plumbing
- Allows for proper embedment depth
- Facilitates future inspections/maintenance
Economic Advantages
Footing pedestals also offer important economic benefits by reducing construction cost and saving time. They help in minimizing the need for excessive concrete and deep excavation, which directly lowers material and labor expenses. At the same time, they allow for a more standardized and efficient foundation process, making construction faster and more cost-effective.
- Reduces total concrete volume vs deep footings
- Minimizes excavation requirements
- Standardizes foundation construction
FAQs About Footing Pedestals
Q: How is a pedestal different from a pier?
A: Pedestals are shorter (typically <3′) while piers are deeper structural elements. Pedestals are mainly used in shallow foundations to support columns, whereas piers go deeper into the ground to transfer loads to stronger soil layers when surface soil is weak.
Q: Can pedestals be used in seismic zones?
A: Yes, with proper lateral reinforcement (helical ties) and base connections. Proper design and detailing ensure that the pedestal can resist lateral forces during earthquakes and maintain structural stability.
Q: What’s the minimum pedestal height?
A: 12″ is practical minimum to allow for proper column embedment. However, the actual height may vary depending on site conditions, moisture protection needs, and design requirements.
Q: Do wooden structures need pedestals?
A: Recommended to prevent wood-ground contact and rot. Using pedestals also improves durability by protecting wood from moisture, termites, and long-term decay.
Design Considerations
✔ Always extend 6″ beyond column dimensions
✔ Maintain 3″ clear cover for reinforcement
✔ Include anchor bolts for steel columns
✔ Consider adding shear keys for heavy loads
✔ Slope tops for water drainage
Common Mistakes to Avoid
- Insufficient pedestal height for utility clearance
- Poor concrete compaction in deep forms
- Inadequate reinforcement for eccentric loads
- Missing vapor barrier below pedestal
- Improper alignment with column grid
Conclusion
Footing pedestals serve as crucial load-transfer components in both building and civil engineering projects. Their proper design and construction ensure structural integrity while providing practical benefits like moisture protection and alignment adjustment capability. For optimal results, pedestal dimensions should be carefully calculated based on supported loads and site conditions.
