A concrete machine typically refers to equipment used in the construction industry for mixing and pouring concrete. These machines can vary widely in size and function, but they generally serve the purpose of efficiently mixing concrete ingredients (such as cement, water, aggregate, and sometimes additives) and then dispensing or transporting the mixed concrete to where it is needed on a construction site.
Common types of concrete machines include:

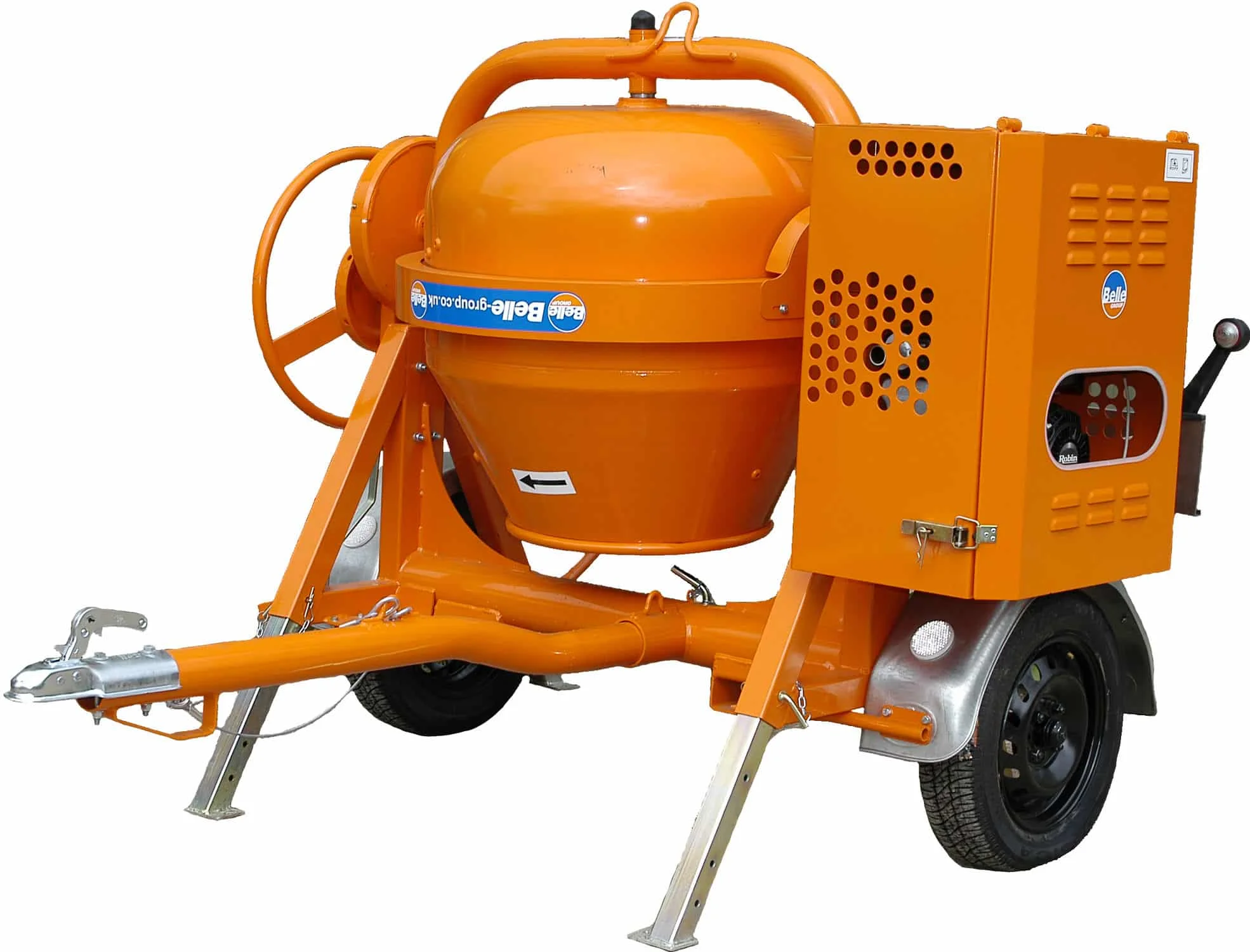

1. What Is Concrete Mixers?
At its core, a concrete mixer is a device designed to combine cement, aggregate such as sand or gravel, and water to form concrete. This mixture is essential for constructing everything from buildings and bridges to roads and dams.
![What Is concrete machine](https://civiltutorials.com/wp-content/uploads/2024/06/Concrete-Mixers-1024x780.jpg)
Types of Concrete Mixers
1. Stationary Concrete Mixers
Stationary mixers are set up at a fixed location within a construction site. They are ideal for continuous production of concrete batches at a consistent rate.
2. Mobile Concrete Mixers
Mobile mixers are mounted on trucks or trailers, allowing them to be easily transported between sites. They offer flexibility and are suitable for projects requiring frequent movement.
3. Twin Shaft Concrete Mixers
Twin shaft mixers feature two horizontal shafts with mixing blades that ensure thorough mixing of materials. They are known for high mixing efficiency and are used in large-scale projects.
Components of a Concrete Mixer
1. Drum
The drum is where the concrete materials are mixed. It rotates on an axis to ensure uniform blending.
2. Motor
The motor provides the power needed to rotate the drum and operate other mechanisms of the mixer.
3. Mixing Blades
Mixing blades inside the drum agitate the concrete ingredients to achieve a homogeneous mixture.
4. Chute
The chute facilitates the discharge of the mixed concrete into desired containers or forms.
How Does a Concrete Mixer Work?
Concrete mixers work by combining the ingredients of concrete in a rotating drum, ensuring thorough mixing until the desired consistency is achieved. This process involves precise control of mixing times and speeds to produce quality concrete.
Choosing the Right Concrete Mixer
1. Project Requirements
Consider the specific needs of your project, including the volume of concrete required and the site conditions.
2. Volume and Output
Select a mixer that can handle the necessary volume and output rate to meet project deadlines effectively.
3. Mobility and Portability
Choose between stationary and mobile mixers based on the project’s mobility requirements and site accessibility.
Maintenance of Concrete Mixers
1. Cleaning and Lubrication
Regular cleaning of the mixer drum and lubrication of moving parts are essential for longevity and optimal performance.
2. Inspection of Parts
Periodically inspect components such as blades, motors, and chutes for wear and tear, replacing parts as needed.
3. Preventive Maintenance Schedule
Adhere to a preventive maintenance schedule to minimize downtime and ensure consistent operation of the mixer.
Safety Tips When Operating Concrete Mixers
Implement safety protocols such as wearing protective gear, securing the mixing area, and following manufacturer guidelines to prevent accidents.
Advantages of Using Concrete Mixers
1. Efficiency in Mixing
Concrete mixers ensure efficient and uniform mixing of materials, resulting in high-quality concrete production.
2. Versatility in Applications
They are suitable for various construction applications, adapting to different project requirements and environments.
3. Cost-effectiveness
Using concrete mixers can reduce labor costs and material wastage, making them a cost-effective choice for construction projects.
Common Applications of Concrete Mixers
1. Construction Sites
Concrete mixers are ubiquitous on construction sites, used for everything from foundations to structural elements.
2. Roadworks and Pavement
They play a crucial role in road construction, producing concrete for curbs, sidewalks, and pavement.
3. Precast Concrete Manufacturing
In precast concrete manufacturing, mixers are integral to producing customized concrete products off-site.
Environmental Considerations
1. Energy Consumption
Efforts to optimize energy use in concrete mixers contribute to reducing environmental impact during operation.
2. Emission Reduction Efforts
Advancements in mixer design aim to minimize emissions and improve overall environmental sustainability.
Innovations in Concrete Mixing Technology
Technological advancements such as automated mixing controls and eco-friendly additives enhance efficiency and environmental performance.
Future Trends in Concrete Mixer Design
Future mixer designs may focus on enhanced automation, energy efficiency, and integration with digital construction technologies.
2. What Is Concrete Batch Plants?
In the realm of modern construction, the role of concrete batch plants is paramount, facilitating the efficient production of concrete, which is fundamental to the development of infrastructure worldwide.
![What Is Concrete Batch Plants?](https://civiltutorials.com/wp-content/uploads/2024/06/Concrete-Batch-Plants.jpg)
What are Concrete Batch Plants?
Concrete batch plants are facilities that combine various ingredients to form concrete, which is used extensively in construction projects.
Importance in Construction Industry
These plants are vital for ensuring a steady supply of quality concrete, essential for building robust structures efficiently.
Types of Concrete Batch Plants?
1. Stationary Concrete Batch Plants
Stationary plants are fixed installations where the concrete batching process occurs in a predefined location.
Components and Layout
They typically include storage bins for aggregates, conveyors, cement silos, and a central mixer.
Advantages and Limitations
Stationary plants offer high production capacity and precise control over mix designs but lack mobility.
2. Mobile Concrete Batch Plants
Mobile plants are designed to be transported to different project sites as needed.
Flexibility and Mobility
They offer flexibility in terms of location and are suitable for small to medium-scale projects or remote areas.
Applications and Benefits
Mobile plants enable on-site batching, reducing transportation costs and enhancing project timelines.
Components of a Concrete Batch Plant
1. Aggregate Bins
These store various aggregates (such as sand, gravel, and crushed stone) used in concrete production.
2. Conveyor Belts
Conveyors transport aggregates from storage bins to the mixing unit.
3. Mixing Unit
This component mixes aggregates, cement, water, and additives to produce concrete of desired quality.
4. Cement Silos
Cement silos store bulk cement, ensuring a continuous supply during batching operations.
Working Mechanism
1. Batch Process Explained
Batching involves precise measurement and mixing of ingredients according to specific recipes.
2. Automation and Control Systems
Modern plants utilize automated systems for batching, monitoring, and adjusting mix proportions and consistency.
Factors Influencing Plant Selection
1. Project Size and Scope
The scale of the project dictates whether a stationary or mobile plant is more suitable.
2. Environmental Regulations
Compliance with environmental standards influences plant design and operational practices.
3. Cost Considerations
Initial investment, operational costs, and efficiency determine the economic viability of a plant.
Environmental Impact
1. Noise and Dust Control Measures
Plants implement measures to mitigate noise pollution and dust emissions, ensuring minimal impact on surroundings.
2. Water Usage and Recycling
Efforts are made to optimize water consumption and implement recycling systems for sustainable water management.
3. Carbon Footprint Reduction
Technological advancements aim to reduce energy consumption and greenhouse gas emissions during batching operations.
Maintenance and Upkeep
1. Routine Maintenance Practices
Regular inspections, cleaning, and servicing of plant components ensure optimal performance and longevity.
2. Troubleshooting Common Issues
Prompt identification and resolution of mechanical or operational issues minimize downtime and maintain productivity.
Advantages of Using Concrete Batch Plants
1. Quality Control
Batch plants offer precise control over mix proportions, ensuring consistent and high-quality concrete.
2. Time Efficiency
On-site batching reduces transportation time and delays associated with ready-mix concrete deliveries.
Cost-effectiveness
Long-term cost savings are achieved through efficient resource utilization and minimized wastage.
Challenges Faced
1. Transportation Logistics
Transporting mobile plants and managing logistics for raw materials can pose challenges, especially in remote locations.
2. Regulatory Compliance
Adhering to environmental regulations and obtaining permits can be complex and time-consuming.
Innovations in Concrete Batch Plants
1. Integration of IoT
Internet of Things (IoT) technologies enable real-time monitoring and remote operation of batch plants for enhanced efficiency and productivity.
2. Automation Trends
Automated systems for batching, mixing, and quality control streamline operations and improve consistency.
Case Studies: Real-world Applications
1. Infrastructure Projects
Concrete batch plants play a crucial role in the construction of highways, bridges, dams, and other large-scale infrastructure projects.
2. Residential Construction
From foundations to driveways, batch plants supply concrete for various residential construction needs, ensuring durability and strength.
Future Trends and Outlook
1. Sustainable Practices
The industry is moving towards more sustainable practices, with a focus on reducing environmental impact through advanced technologies and practices.
2. Technological Advancements
Continued innovation in plant design and automation is expected to further enhance efficiency, accuracy, and environmental sustainability.
3. What are Concrete Pumps?
Concrete pumps are machines used to transfer liquid concrete through pumping mechanisms.
![What are Concrete Pumps?](https://civiltutorials.com/wp-content/uploads/2024/06/Concrete-Pumps.jpg)
Importance in Construction Industry
They play a vital role in delivering concrete to difficult-to-reach areas, enhancing construction efficiency and speed.
Types of Concrete Pumps
1. Boom Pumps
Boom pumps are mounted on trucks with extendable arms (booms) that deliver concrete precisely to desired locations.
Components and Operation
Booms can extend horizontally and vertically, navigating obstacles on construction sites.
Advantages and Limitations
Boom pumps are ideal for large-scale projects but require ample space for setup and operation.
2. Line Pumps
Line pumps are portable units that pump concrete through flexible hoses, suitable for smaller construction sites and indoor projects.
Flexibility and Applications
They are versatile in reaching tight spaces and can be used for both horizontal and vertical pumping.
Benefits in Residential and Commercial Projects
Line pumps are favored for their maneuverability and ability to pump concrete over long distances.
Components of a Concrete Pump
1. Pumping Mechanism
The pumping mechanism uses pistons or hydraulic systems to push concrete through pipelines.
2. Hopper and S-valve
Hoppers hold concrete before it enters the pumping system, while S-valves control the flow direction.
3. Hydraulic Systems
Hydraulic systems power the pumping action and control the movement of booms or hoses.
Working Mechanism
Concrete Pumping Process
Concrete is fed into the hopper, where it is pumped through pipelines to the designated pour location.
Operation and Safety Measures
Operators monitor pressure levels, flow rates, and ensure safety protocols during pumping operations.
Advantages of Using Concrete Pumps
Precision and Efficiency
Pumps enable precise placement of concrete, reducing labor and ensuring uniformity in construction.
Time Savings
They accelerate construction timelines by swiftly delivering concrete to multiple points on-site.
Cost-effectiveness
Efficient concrete placement minimizes material wastage and labor costs, optimizing project budgets.
Applications in Construction
High-rise Buildings
Concrete pumps are indispensable for pouring concrete at height, facilitating continuous workflow during skyscraper construction.
Infrastructure Projects
They support bridge, tunnel, and road construction by delivering concrete to challenging locations.
Environmental Considerations
Noise and Emission Control
Modern pumps integrate noise reduction technologies and emission controls to minimize environmental impact.
Fuel Efficiency
Efforts are made to enhance fuel efficiency through advanced engine designs and operational optimizations.
Maintenance and Safety Practices
Routine Maintenance
Regular inspections and servicing of pumps ensure reliability and longevity of equipment.
Operator Training and Safety
Training programs emphasize safe handling practices to prevent accidents and ensure efficient operation.
Innovations in Concrete Pump Technology
Remote Control Systems
Remote controls allow operators to manage pumps from a safe distance, enhancing precision and safety.
Telematics and Data Analytics
Integration of telematics enables real-time monitoring of pump performance and predictive maintenance.
Future Trends and Outlook
Automation and Robotics
Advancements in automation are expected to further streamline pumping processes, improving efficiency and reducing dependency on manual labor.
Sustainable Practices
The industry continues to innovate towards sustainable concrete pumping solutions, focusing on energy efficiency and environmental stewardship.
4. What is a Concrete Truck?
A concrete truck, also known as a cement mixer truck or transit mixer, is a specialized vehicle equipped with a rotating drum that mixes and transports concrete from a batching plant to construction sites.
![What is a Concrete Truck?](https://civiltutorials.com/wp-content/uploads/2024/06/Concrete-Trucks-1024x614.jpg)
Types of Concrete Trucks
1. Standard Transit Concrete Trucks
Standard transit trucks have a rotating drum mounted on the back of the truck chassis, allowing for continuous mixing during transportation to maintain concrete homogeneity.
2. Agitator Trucks
Agitator trucks feature a non-rotating drum with internal blades that continuously agitate the concrete during transit, ensuring it remains workable upon arrival at the site.
3. Volumetric Concrete Trucks
Volumetric trucks allow for on-site mixing of concrete components in separate compartments, ensuring precise batching and customization of concrete mixes according to project specifications.
Components of a Concrete Truck
1. Mixer Drum
The mixer drum is the core component where concrete ingredients are mixed during transportation. It rotates continuously to prevent segregation and maintain uniformity.
2. Hydraulic System
Hydraulic systems power the rotation of the drum and control mechanisms for loading, mixing, and discharge operations.
3. Chassis
The chassis provides structural support and mobility to the concrete truck, accommodating various capacities and configurations based on project requirements.
How Does a Concrete Truck Work?
Concrete trucks work by loading dry cement, aggregate, and water into the drum at the batching plant. The drum rotates during transit, ensuring continuous mixing and preventing concrete from setting prematurely.
Advantages of Using Concrete Trucks
1. Efficiency in Delivery
Concrete trucks facilitate efficient delivery of freshly mixed concrete directly to the construction site, reducing labor and equipment costs associated with on-site mixing.
2. On-site Mixing Capability
They offer the flexibility to mix concrete on-site, adjusting mix proportions and consistency as per immediate project needs.
3. Versatility in Applications
Concrete trucks are versatile, catering to a wide range of construction applications, from residential projects to large-scale infrastructure developments.
Choosing the Right Concrete Truck
1. Project Requirements
Evaluate project specifications such as concrete volume, mix design requirements, and site conditions to select the appropriate type and capacity of the concrete truck.
2. Volume and Capacity
Consider the truck’s capacity to ensure it meets the required volume of concrete per delivery, minimizing delays and optimizing workflow.
3. Accessibility and Maneuverability
Assess the truck’s maneuverability on-site and its ability to access tight spaces or navigate challenging terrain, enhancing operational efficiency.
Maintenance of Concrete Trucks
1. Cleaning and Inspection
Regular cleaning of the mixer drum and inspection of components such as blades and chutes prevent buildup and ensure optimal performance.
2. Lubrication and Greasing
Proper lubrication of moving parts, including the drum and hydraulic systems, prevents wear and extends the lifespan of critical components.
3. Engine and Hydraulic Maintenance
Scheduled maintenance of the engine and hydraulic systems enhances reliability and performance, reducing downtime during operations.
Safety Considerations When Operating Concrete Trucks
Implement safety protocols, including proper training for operators, securing the mixing area, and adhering to operational guidelines to prevent accidents and ensure worker safety.
Common Applications of Concrete Trucks
1. Large Construction Projects
Concrete trucks are essential for supplying large volumes of concrete efficiently to major construction sites, including high-rise buildings and infrastructure projects.
2. Remote or Challenging Sites
They are valuable in remote locations or areas with limited access, providing a reliable supply of concrete without the need for extensive on-site batching facilities.
3. Urban Construction and Renovations
In urban settings, concrete trucks navigate city streets to deliver concrete for renovations, repairs, and new construction projects, optimizing logistical operations.
Environmental Impact of Concrete Trucks
Efforts to minimize environmental impact include optimizing fuel efficiency, reducing emissions, and exploring alternative materials for concrete production.
Innovations in Concrete Truck Technology
Technological advancements focus on enhancing automation, integrating digital monitoring systems, and developing eco-friendly solutions to improve operational efficiency and sustainability.
Future Trends in Concrete Truck Design
Future designs may incorporate advanced materials for lighter weight and increased payload capacity, as well as smart technologies for real-time monitoring and predictive maintenance.
5. What is a Concrete Vibrator?
A concrete vibrator is a mechanical device used to compact and consolidate concrete during pouring. It applies vibration to the concrete mixture, ensuring proper distribution and removal of air bubbles, which improves the overall integrity of the concrete.
![5. What is a Concrete Vibrator?](https://civiltutorials.com/wp-content/uploads/2024/06/Concrete-Vibrators-1024x589.jpg)
Types of Concrete Vibrators
1. Internal Vibrators (Needle Vibrators)
Internal vibrators are immersed directly into the concrete mix. They are ideal for consolidating concrete in deep forms or structures where access is limited.
2. External Vibrators (Form Vibrators)
External vibrators are attached to the formwork or molds surrounding the concrete. They impart vibration externally to the concrete, ensuring uniform compaction and surface finish.
3. Surface Vibrators (Screed Vibrators)
Surface vibrators are used on the surface of freshly poured concrete. They smooth and level the concrete while consolidating it, perfect for slab and pavement applications.
How Does a Concrete Vibrator Work?
Concrete vibrators work by transmitting vibrations into the concrete mixture, causing the particles to compact closely together. This process eliminates voids and air pockets, improving concrete strength and durability.
Benefits of Using Concrete Vibrators
1. Improved Concrete Compaction
Vibrators ensure thorough compaction of concrete, reducing the risk of honeycombing and improving the bond between concrete and reinforcement.
2. Reduction of Air Pockets
By removing air pockets, concrete vibrators enhance the density and strength of the concrete, resulting in a more durable finished product.
3. Enhanced Concrete Strength
Proper compaction with vibrators increases the compressive strength of concrete, making it suitable for structural applications with higher load-bearing requirements.
Choosing the Right Concrete Vibrator
1. Project Size and Scope
Select a vibrator based on the size and complexity of the project. Larger projects may require high-frequency vibrators for efficient compaction.
2. Type of Concrete Mix
Different vibrators are suited to various concrete mixes. Consult specifications to match the vibrator’s frequency and power to the mix design requirements.
3. Accessibility and Control
Consider the accessibility of the construction site and the control needed over vibration intensity and duration when choosing a concrete vibrator.
Operation and Safety Tips for Concrete Vibrators
1. Proper Handling and Positioning
Ensure operators are trained in proper handling and positioning of vibrators to avoid damage to forms or injury.
2. Regular Maintenance and Inspection
Perform regular maintenance checks on vibrators to keep them in optimal condition and ensure reliable performance on-site.
3. Safety Gear and Precautions
Provide operators with appropriate safety gear, including gloves and eye protection, and follow safety protocols to prevent accidents during operation.
Common Applications of Concrete Vibrators
1. Foundation and Slab Pouring
Vibrators are used extensively in pouring foundations and slabs to achieve uniform compaction and structural integrity.
2. Precast Concrete Manufacturing
In precast concrete manufacturing, vibrators are integral to producing consistent and high-quality concrete products, such as beams and columns.
3. Repair and Restoration Projects
They are crucial in repair and restoration projects to ensure proper bonding and compaction of repair materials with existing concrete structures.
Environmental Considerations
Efforts are underway to develop eco-friendly vibrators that reduce energy consumption and emissions during concrete compaction processes.
Innovations in Concrete Vibrator Technology
Technological advancements include ergonomic designs, variable frequency controls, and wireless monitoring systems to enhance efficiency and ease of use.
Future Trends in Concrete Vibrator Design
Future designs may focus on integrating smart technologies for real-time data monitoring, improving vibration patterns for optimal compaction, and reducing environmental impact.
