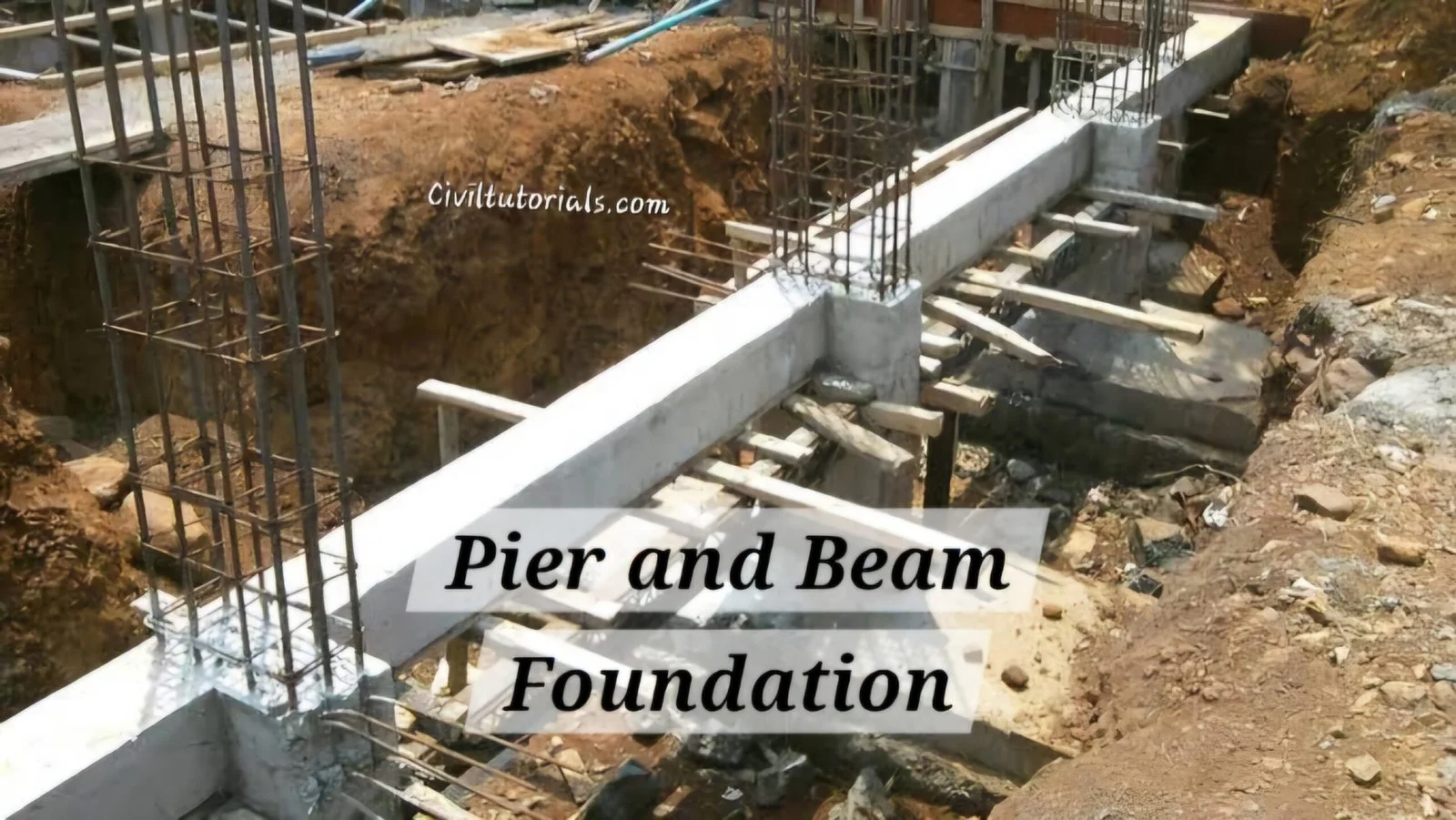

A pier and beam foundation is a type of structural support system commonly used in residential construction, particularly in areas where the soil is unstable or prone to moisture issues. It involves a network of concrete piers (or wooden posts) driven into the ground and connected by horizontal beams that support the structure above. This foundation type offers several advantages, including accessibility to plumbing and electrical systems, better ventilation, and suitability for various terrains.
What Is a Pier and Beam Foundation?
A pier and beam foundation elevates a building off the ground using concrete or wooden piers strategically spaced around the perimeter and under load-bearing walls. Horizontal wooden or steel beams rest on these piers to support the floor joists and flooring system. This setup creates a crawl space beneath the building, making it easier to access utilities and reduce moisture-related issues.
Types of Pier and Beam Foundations
Understanding the various types of pier and beam foundation systems helps in selecting the right one based on soil conditions, building requirements, and budget.
Concrete Pier and Beam Foundation
This type uses concrete piers poured on-site or pre-cast and driven into the ground. It’s ideal for heavier structures and long-term durability.
Key features:
- Highly stable and durable
- Suitable for clay or expansive soils
- Common in both residential and light commercial construction
Wood Pier and Beam Foundation
Wooden posts or piers are used instead of concrete. While more economical, this type is more prone to decay over time and requires proper treatment and ventilation.
Key features:
- Lower initial cost
- Requires regular maintenance
- Suitable for temporary or lightweight structures
Steel Pier and Beam Foundation
Steel piers provide enhanced strength and resistance to shifting or settling. These are often used in homes that need foundation repair or reinforcement.
Key features:
- High load-bearing capacity
- Excellent in flood-prone or shifting soil regions
- More expensive but long-lasting
Drilled Shaft Pier Foundation
This involves drilling deep holes and filling them with reinforced concrete. Used for larger buildings or in locations where the topsoil is too weak to support shallow piers.
Key features:
- Deep foundation support
- Minimizes risk of foundation movement
- Ideal for commercial or multi-story buildings
Construction Process of Pier and Beam Foundation
Step-by-Step Overview
- Site Preparation: Remove topsoil and debris, mark pier locations
- Excavation: Dig holes for piers based on soil tests and load requirements
- Pier Installation: Place concrete, wood, or steel piers into the holes
- Beam Placement: Attach horizontal beams across piers
- Floor Joist Installation: Install joists across beams for the flooring system
- Final Framing: Floor and walls are built on top of the beam system
Advantages of Pier and Beam Foundation
There are many benefits to choosing a pier and beam foundation, especially in specific site conditions.
Easy Access to Utilities
The crawl space created by the pier and beam system allows for convenient access to plumbing, electrical, and HVAC systems. Repairs and upgrades are simpler and less expensive compared to slab foundations.
Suitable for Sloped or Uneven Terrain
Unlike slab foundations that require a flat surface, a pier and beam foundation can adapt to uneven or sloped lots without excessive grading or excavation.
Better Moisture Control
The elevated structure allows air to circulate underneath the house, reducing moisture buildup and minimizing mold or mildew risks.
Cost-Effective Repairs
If foundation issues arise, it’s generally easier and less expensive to correct them in a pier and beam setup compared to a monolithic slab.
Comfortable Flooring
Floors built over beams and joists tend to feel more comfortable and flexible underfoot, which some homeowners prefer over the hardness of slab floors.
Disadvantages to Consider
While a pier and beam foundation offers many advantages, it’s also important to understand potential drawbacks.
- Pest Intrusion: The crawl space may attract pests if not properly sealed
- Moisture Risk: Poor ventilation can lead to mold or rot if not maintained
- Structural Shifting: Over time, piers may settle or shift, requiring adjustment
- Insulation Needs: The space beneath the floor needs proper insulation to prevent heat loss
Common Uses of Pier and Beam Foundations
This foundation type isn’t suitable for every structure but excels in many scenarios.
Residential Homes
Most commonly used for single-family homes, especially in areas with expansive or shifting soil.
Coastal and Flood-Prone Areas
Ideal for locations with high water tables, frequent rainfall, or flooding potential, as it keeps the building elevated.
Mobile and Manufactured Homes
These structures often rely on pier systems for fast, cost-effective installation on various terrains.
Home Additions and Remodels
If an addition needs to be elevated or built on less stable ground, pier and beam systems offer a flexible solution.
Temporary Structures
Construction offices, portable classrooms, and event pavilions can all benefit from quick-to-install pier foundations.
Comparing Pier and Beam vs. Slab Foundation
| Feature | Pier and Beam Foundation | Slab Foundation |
|---|---|---|
| Terrain Suitability | Sloped/Uneven | Flat only |
| Access to Utilities | Easy (crawl space) | Difficult (embedded) |
| Moisture Protection | Good with ventilation | Poor if not sealed |
| Cost | Slightly higher | Usually lower initially |
| Repair Convenience | Easier | More invasive |
| Floor Comfort | Softer, flexible | Hard and cold |
Maintenance Tips for Pier and Beam Foundations
Maintaining a pier and beam foundation is crucial for its longevity and performance.
- Inspect for Moisture: Regularly check crawl space for signs of water or mold
- Seal Gaps and Vents: Keep pests out and maintain air circulation
- Leveling Checks: Look for signs of foundation shifting like doors sticking or sloped floors
- Support Reinforcement: Strengthen beams or piers showing signs of wear
- Insulate and Ventilate: Proper insulation prevents heat loss; ventilation reduces moisture
FAQs About Pier and Beam Foundation
What is the lifespan of a pier and beam foundation?
With proper maintenance, it can last 75 to 100 years. Material type (concrete, wood, steel) plays a role in durability.
Are pier and beam foundations good for all climates?
They work best in areas with moderate to high rainfall or shifting soil. They’re not ideal for extremely cold regions without extra insulation.
Is a pier and beam foundation more expensive than a slab?
Initial costs can be slightly higher, but maintenance and repair costs are often lower over time due to easier access.
Can I insulate the crawl space in a pier and beam home?
Yes, and it’s recommended. Use rigid foam insulation under the floor and seal vents to improve energy efficiency.
What problems are common with this foundation type?
The most common issues are moisture buildup, pier shifting, and pest entry. These can be prevented with regular inspections and maintenance.
Benefits of Choosing Pier and Beam Foundation
When evaluating your options, here’s a recap of why many builders and homeowners choose this system:
- Adaptability to terrain and soil types
- Reduced moisture and water damage
- Simpler access to subfloor systems
- Easier repair and modification options
- Enhanced indoor comfort and ventilation
- Longevity with proper care
When to Choose Pier and Beam Over Other Foundations
- Your site has poor drainage or is flood-prone
- The ground is uneven or on a slope
- You want easy access to plumbing and wiring
- You’re planning a lightweight or single-story structure
- You prefer a raised home for aesthetic or practical reasons
Final Thoughts on Pier and Beam Foundation
The pier and beam foundation continues to be a reliable and flexible choice in modern construction. Whether you’re building a new home, making additions, or retrofitting a structure, this foundation type offers significant benefits in accessibility, durability, and climate adaptability. However, success with this system depends heavily on correct design, quality materials, and regular maintenance. When those elements are in place, it can offer decades of strong and stable performance.
