In the world of reinforced concrete construction, ensuring durability and structural integrity is paramount. One of the key elements in achieving this is the concept of the “clear cover.” This article delves into what a clear cover is, its types, applications, and importance.
Table of Contents
What is Clear Cover?

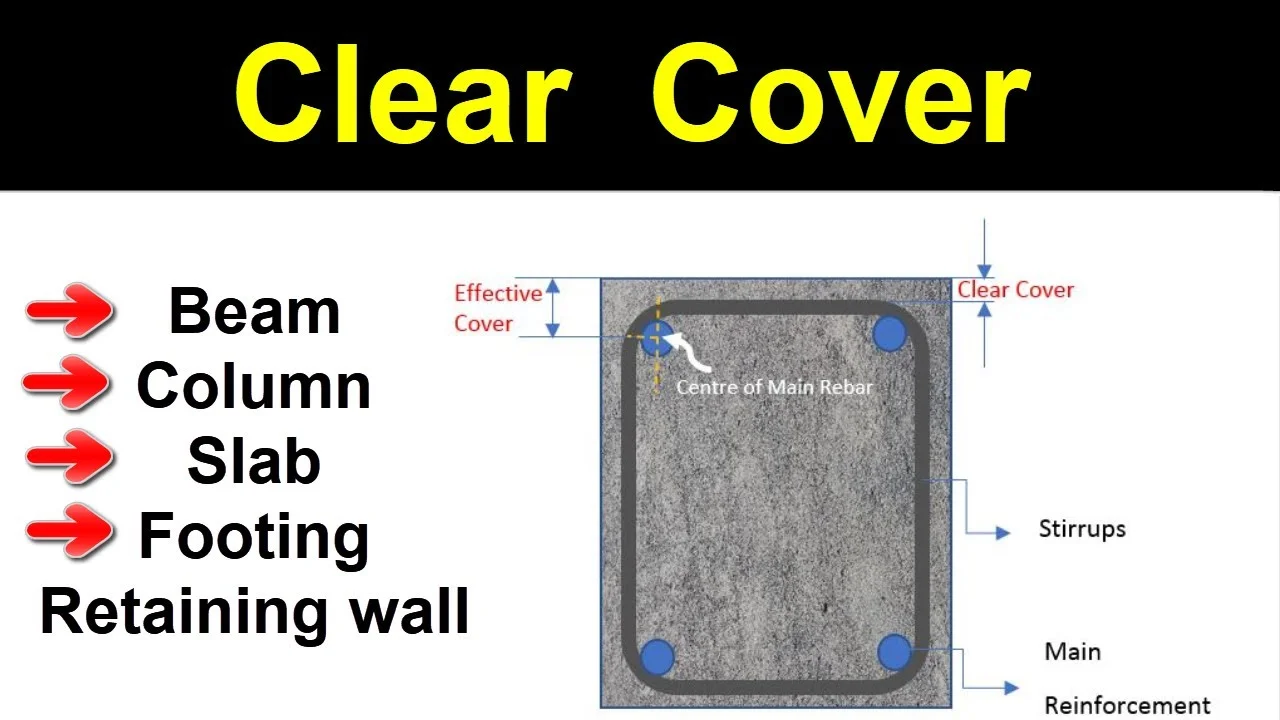

Clear cover refers to the distance between the outer surface of the concrete and the nearest exposed reinforcement bar. It is a crucial aspect of reinforced concrete structures, as it ensures that the reinforcement bars are adequately protected from environmental conditions and mechanical damage.
Unlike nominal or effective cover, clear cover does not include any additional protective layers or coatings. This precise measurement plays a vital role in determining the durability and safety of the structure.
Importance of Clear Cover
Clear cover serves several essential purposes in reinforced concrete structures:
1. Corrosion Protection
The reinforcement bars embedded in concrete are prone to corrosion due to exposure to moisture, chemicals, and other environmental factors. Adequate clear cover provides a physical barrier, safeguarding the steel bars from these corrosive agents.
2. Fire Resistance
During a fire, the temperature around the structure rises significantly. Clear cover acts as an insulating layer, delaying the transfer of heat to the reinforcement bars and preventing premature failure.
3. Bond Strength
Clear cover ensures proper bonding between the reinforcement and the surrounding concrete. This bond is critical for the structure’s load-bearing capacity and stress transfer.
4. Structural Durability
By protecting both the reinforcement and the concrete from external factors such as carbonation or aggressive chemicals, clear cover enhances the lifespan of the structure.
Types of Cover in Concrete
1. Clear Cover
This is the direct distance between the concrete’s outer surface and the nearest reinforcement bar. It is measured excluding any additional protective layers.
2. Nominal Cover
Nominal cover refers to the minimum cover specified in construction drawings and design codes. It serves as a standard guideline to ensure durability and structural safety.
3. Effective Cover
Effective cover accounts for potential variations during construction, such as surface irregularities or placement deviations. It represents the actual cover provided to the reinforcement.
Factors Affecting Cover Requirements
Several factors influence the appropriate clear cover in reinforced concrete structures:
1. Structural Element
The type of structural element (e.g., beams, slabs, columns, or walls) determines the cover requirement. Beams and columns may require a thicker cover due to their load-bearing nature.
2. Environmental Conditions
Exposure to moisture, chemicals, or extreme temperatures affects the clear cover requirement. For example, marine structures need a higher cover to resist salt-induced corrosion.
3. Reinforcement Size
The diameter of the reinforcement bars impacts the required cover. Larger bars demand a thicker cover to ensure adequate protection.
4. Design Codes and Standards
Construction practices are guided by codes and standards, such as IS, ACI, or Eurocode, which specify minimum clear cover requirements based on the structure’s usage and environment.
Applications of Clear Cover
Clear cover finds applications in various structural components:
1. Foundations
Foundations require a thick clear cover to protect reinforcement from soil moisture and potential chemical attacks.
2. Beams and Columns
These load-bearing elements benefit from clear cover to ensure fire resistance and bond strength.
3. Slabs
Slabs, especially in exposed conditions, use clear cover to prevent corrosion and maintain aesthetic integrity.
4. Retaining Walls
In retaining walls, clear cover protects the reinforcement from aggressive soil chemicals and moisture.
Recommended Clear Cover Thickness (Based on Standards)
| Structural Element | Exposure Condition | Clear Cover Thickness (mm) |
|---|---|---|
| Foundations | Severe | 50 |
| Columns | Moderate | 40 |
| Beams | Mild | 25 |
| Slabs | Mild | 20 |
| Retaining Walls | Severe | 50 |
How to Determine Appropriate Clear Cover
1. Refer to Design Codes
Design codes such as IS 456, ACI 318, or Eurocode 2 provide guidelines for clear cover based on environmental exposure and structural requirements.
2. Assess Environmental Factors
Evaluate conditions such as humidity, temperature variations, and exposure to aggressive agents to decide on the required cover thickness.
3. Analyze Structural Design
Consider the structural design and anticipated loads to ensure the cover meets safety and durability needs.
4. Account for Construction Tolerances
Allow for potential construction deviations to ensure the effective cover matches the specified clear cover.
5. Quality Control and Inspection
Implement rigorous quality control measures during construction to verify that the clear cover adheres to the specified standards.
Challenges in Maintaining Clear Cover
1. Construction Deviations
Inconsistent placement of reinforcement bars can lead to variations in clear cover.
2. Surface Irregularities
Uneven surfaces during concrete placement may affect the measured cover thickness.
3. Inadequate Quality Control
Lack of proper monitoring and inspection can result in insufficient clear cover, compromising structural durability.
Tips for Ensuring Proper Clear Cover
- Use Cover Blocks: Employ pre-manufactured cover blocks to maintain uniform spacing during reinforcement placement.
- Regular Inspections: Conduct frequent checks during construction to ensure compliance with specified cover thickness.
- Training: Educate construction teams on the importance of clear cover and its role in structural safety.
Conclusion Of Clear cover
Clear cover is a fundamental aspect of reinforced concrete construction, providing essential protection to reinforcement bars against corrosion, fire, and other environmental factors. By understanding the distinctions between clear, nominal, and effective cover and adhering to design codes and quality control practices, engineers and builders can ensure the durability, safety, and longevity of concrete structures. Recognizing the importance of clear cover helps create structures that stand the test of time while maintaining structural integrity and performance.
